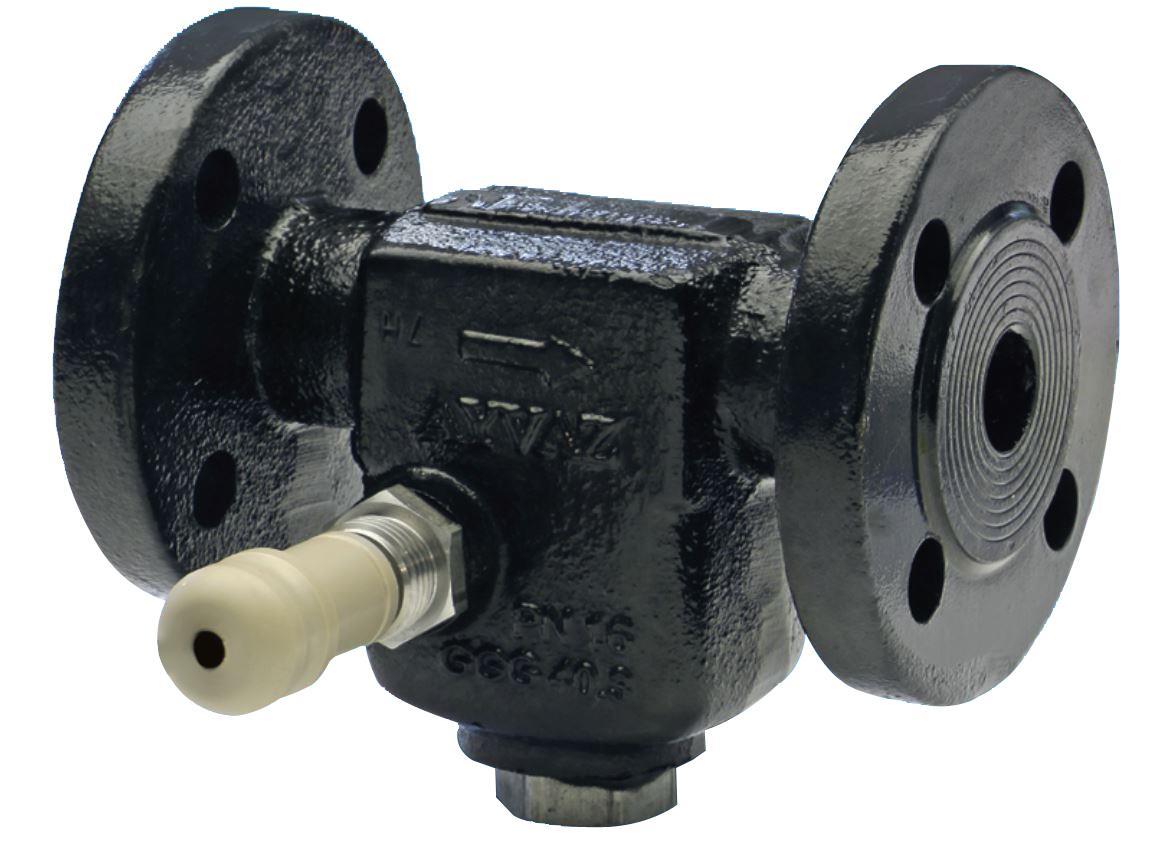

AYVAZ T-KON 20 Steam Trap Control Body Dn50

AYVAZ T-KON 20 Steam Trap Control Body DN50: Expert Solution for Steam Leak Detection

In steam systems, leaving steam traps open causes significant energy waste , while keeping them closed reduces system efficiency. The Ayvaz T-KON 20 Steam Trap Control Body is designed to prevent these malfunctions and facilitate timely steam trap maintenance.

This Steam Trap Control Body is used in large-scale steam lines with a nominal diameter of DN50 (2'') and provides continuous control of steam traps.

Steam Trap Control Body Definition and Working Principle

The Ayvaz T-KON 20 is designed to detect steam leaks in a steam trap in an operating system. It is designed for use only in saturated steam applications. The housing includes a sensor that distinguishes the conductivity difference between steam and condensate.

• Visual Signal: A handheld control device (sold separately) that can be connected to this body emits a "green" light signal when condensate is passing through and a "red" light signal when steam is passing through. This allows the operator to easily determine if there is a leak in the trap.

• Energy Saving: Prevents energy waste caused by steam escaping from the steam trap by detecting it early.

Features and Advantages of the T-KON 20 Steam Trap Control Body:

• Reliable Material: The body and cover are made of GGG 40.3 Ductile Iron , which is resistant to high pressure and temperature.

• Wide Operating Range: It can operate safely up to a maximum pressure of 14 bar and a temperature of 240 ºC .

• Easy Maintenance Support: Provides instant feedback to the operator, supporting timely maintenance of steam traps.

• Area of Use: Used in all kinds of steam lines, before steam traps.

• Connection Type: Various connection options are available, including threaded and flanged.
