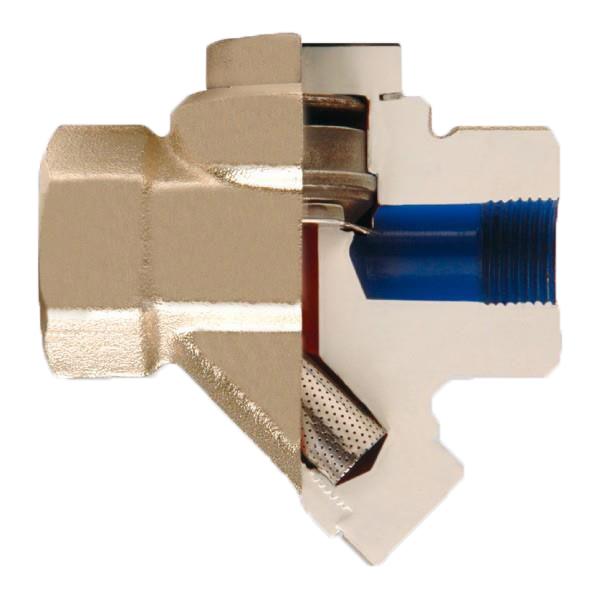

AYVAZ TDK-45 Thermodynamic Steam Trap 1/2'' PN40
%62 Discounted Product
0 - Comment / Read Comments
313,79 EUR
119,24 EUR
Category
Brand
Stock Code
703300101000
Warranty Period
24 Month
Price
261,49 EUR + VAT
* Installments starting from 119,24 EUR!
Add to Cart
TDK-45 Thermodynamic Steam Trap
ORFA Industrial Products Industry and Trade Inc. is a company that sells high-quality and reliable products. Our company offers the TDK-45 Thermodynamic Steam Trap to increase the efficiency of steam systems and save energy. The TDK-45 Thermodynamic Steam Trap is a high-tech product used for condensate removal in industrial steam systems.
The Ayvaz TDK-45 Thermodynamic Steam Trap is a high-performance device designed to increase the efficiency of industrial steam systems. Its forged steel body, AISI 304 stainless steel cover, and internal components ensure durability even under high pressure and temperature conditions. The device features intermittent discharge under operating conditions where back pressure must not exceed 80% of the pre-pressure.
Thermodynamic Steam Trap Properties
Body: Forged Steel
Cover and Interior Parts: AISI 304 Stainless Steel
Connections: Threaded
Nominal Diameter: 1/2"
Pressure Values: Up to 40 bar maximum
Operating Temperature: Maximum 400 ºC
Thermodynamic Steam Trap Technical Information
The TDK-45 Thermodynamic Steam Trap's sealing section is made of stainless steel, while the body is made of forged steel C 22.8. These features ensure high durability and long life. The product operates safely and efficiently, provided that the back pressure does not exceed 80% of the front pressure under operating conditions. Capable of intermittent discharge depending on the condensate load, the TDK-45 provides easy maintenance, and all spare parts are readily available. The "Y"-type strainer is located under the body, making cleaning extremely easy.
Thermodynamic Steam Trap Working Principle
Thermodynamic Process: The TDK-45 operates using thermodynamic principles. Condensate, formed by the condensation of steam, causes pressure and temperature changes within the device. This creates changes in the moving disc (valve) inside the trap.
Disk Movement: The pressure drop in the steam system causes the disk to partially open under the weight of the condensate. This opening allows the condensate to be expelled. The disk is designed to release only the liquid condensate, preventing the passage of steam.
Automatic Adjustment: The disc automatically adjusts based on the pressure difference between steam and condensate. This minimizes steam leakage and increases energy efficiency. As steam pressure increases, the disc closes more tightly, allowing only condensate to pass through.
Strainer Feature: The TDK-45 model features a "Y"-type strainer located at the bottom of the body. This strainer retains solid particles in the condensate, ensuring cleaner system operation. The strainer is easy to clean.
Efficiency and Safety: To ensure efficient operation, steam traps are typically installed in horizontal pipelines. This installation method provides more effective condensate drainage and increases safety during maintenance and replacement.
Thermodynamic Steam Trap Usage Areas
Drying Units: These units ensure efficient use of steam and rapid discharge of condensate water.
Pressing Units: Ideal for the effective use of steam and protection of the system in pressing processes.
Steam Jacketed Pipes: The efficiency of the system is increased by ensuring effective discharge of condensate water in these pipes.
Irons: Used for the correct management of steam and condensate discharge in industrial ironing systems.
Installation and Maintenance
Ayvaz TDK-45 Thermodynamic Steam Traps must be properly installed in horizontal pipelines to ensure efficient and long-lasting operation. During installation, it is recommended to install appropriate isolation valves to ensure safe maintenance and trap replacement. This ensures long-term use and maximum efficiency.
At ORFA Industrial Products Industry and Trade Inc. , we provide energy savings and high performance in your industrial steam systems with the TDK-45 Thermodynamic Steam Trap. For more information about our product and to place an order, please visit our website.
