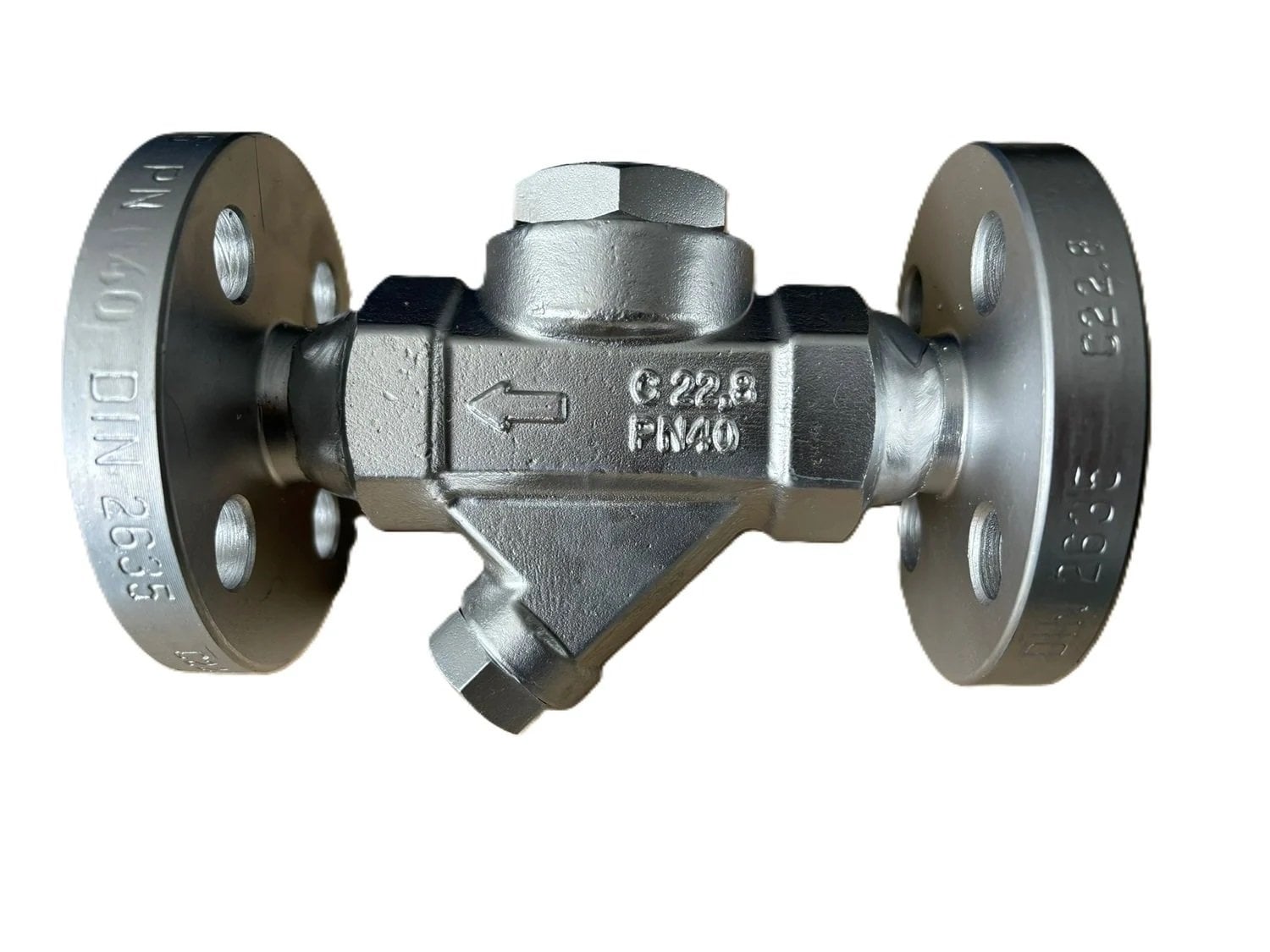

AYVAZ TDK-45 Thermodynamic Trap DN25 PN40
%62 Discounted Product
0 - Comment / Read Comments
1.008,71 USD
383,31 USD
Category
Brand
Stock Code
703300102002
Warranty Period
24 Month
Price
840,59 USD + VAT
* Installments starting from 383,31 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
TDK-45 Thermodynamic Trap
ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş . is a company that sells high quality and reliable products. Our company offers the TDK-45 Thermodynamic Steam Trap product in order to increase the efficiency of steam systems and save energy. TDK-45 Thermodynamic Steam Trap is a high-tech product used for condensate water discharge in industrial steam systems.
Ayvaz TDK-45 Thermodynamic Steam Trap is a high-performance device designed to increase the efficiency of industrial steam systems. Thanks to its forged steel body structure and AISI304 quality stainless steel cover and internal parts, it offers durability even under high pressure and temperature conditions. The device has an intermittent discharge feature under operating conditions where the back pressure should not exceed 80% of the front pressure.
Thermodynamic Steam Trap Features
Body: Forged Steel
Cover and Internal Parts: AISI 304 Stainless Steel
Connections: Flanged
Nominal Diameter: DN
Pressure Ratings: Maximum 40 bar
Operating Temperature: Maximum 400 ºC
Thermodynamic Steam Trap Technical Information
TDK-45 The sealing part of the thermodynamic steam traps is stainless steel and the body is made of forged steel C 22.8 material. Thanks to these features, it offers high durability and long life. The product operates safely and efficiently provided that the back pressure does not exceed 80% of the front pressure under operating conditions. TDK-45, which can perform intermittent discharge depending on the condensate load, provides ease of flow and all spare parts are available. The “Y” type strainer is located under the body and cleaning is extremely easy.
Thermodynamic Steam Trap Working Principle
Thermodynamic Process: TDK-45 works using thermodynamic principles. Condensate formed by the condensation of steam causes pressure and temperature changes within the device. This situation creates changes on the moving disc (valve) inside the steam trap.
Movement of the Disc: With the pressure drop in the steam system, the disc partially opens under the weight of the condensate. This opening allows condensate to be discharged. The disc is designed to leave only the condensate in the liquid phase without allowing the passage of steam.
Auto Adjustment: The disc is automatically adjusted according to the pressure difference of the steam and condensate. Thus, while steam leakage is minimized, energy efficiency is increased. When the steam pressure increases, the disk closes more tightly and allows only condensate to pass.
Strainer Feature: TDK-45 model has a "Y" type strainer located under the body. This strainer retains the solid particles in the condensate and thus ensures cleaner operation of the system. The strainer has an easy-to-clean structure.
Efficiency and Safety: The steam trap is usually installed in horizontal pipelines so that it can operate efficiently. This installation method provides a more effective condensate discharge and increases safety during maintenance and replacement operations.
Thermodynamic Steam Trap Areas of Use
Drying Units: Efficient use of steam and rapid discharge of condensate are ensured in these units.
Pressing Units: Ideal for effective use of steam and protection of the system in pressing processes.
Steam Jacketed Pipes: The efficiency of the system is increased by providing effective discharge of condensate water in these pipes.
Irons: Used for proper management of steam and condensate evacuation in industrial ironing systems.
Installation and Maintenance
Ayvaz TDK-45 Thermodynamic Steam Traps must be properly mounted on the horizontal pipeline in order to operate efficiently and for a long time. During installation, it is recommended to install appropriate isolation valves to ensure safe maintenance and trap replacement operations. In this way, long-lasting use and maximum efficiency of the product is ensured.
ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. As , we enable you to achieve energy savings and high performance in your industrial steam systems with TDK-45 Thermodynamic Steam Trap. You can visit our website to get more information about our product and to place an order.
