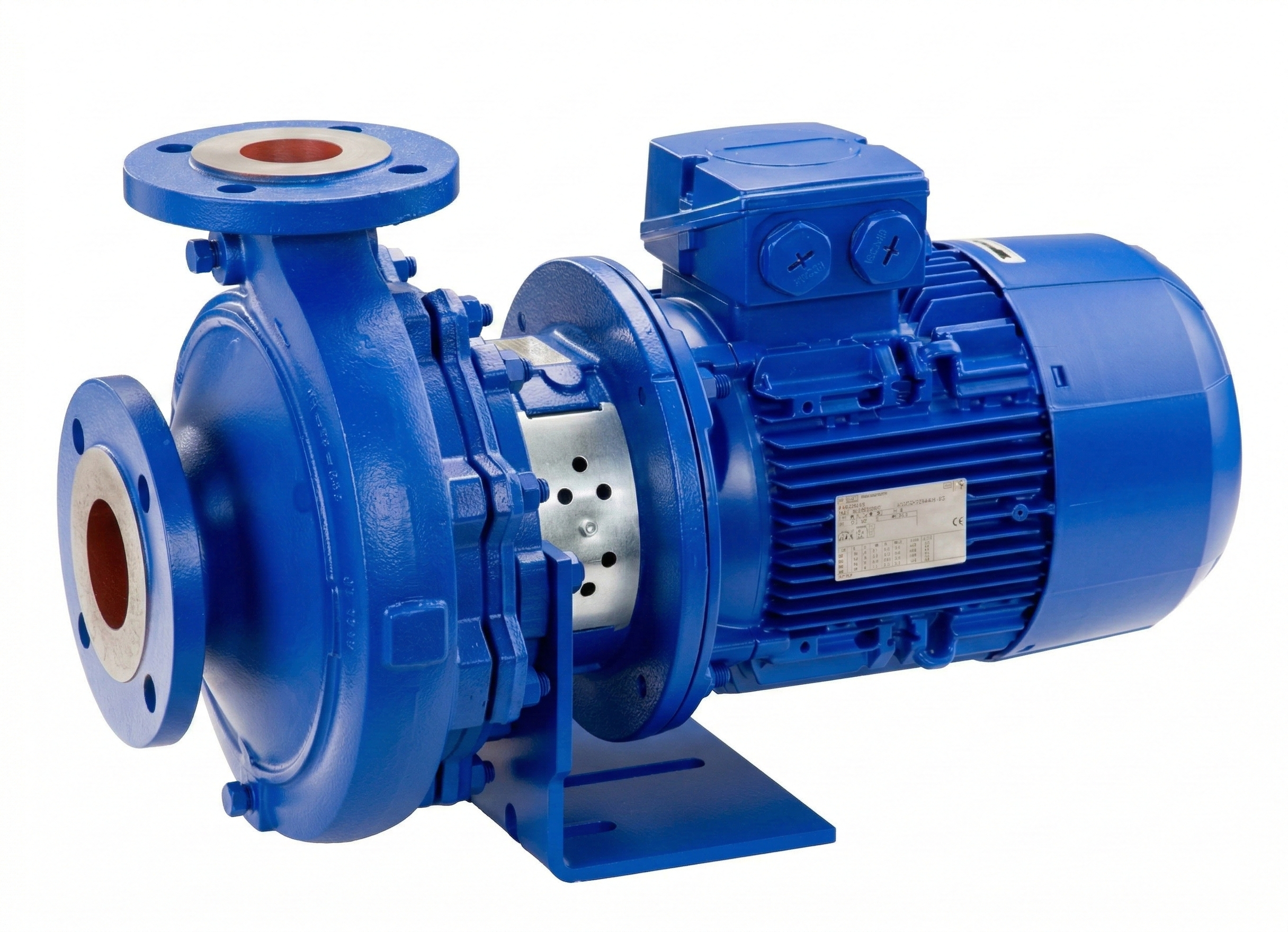

KSB Betabloc 32-160 Centrifugal Pump | Highly Efficient and Reliable Solution
KSB, one of the leading brands of industrial pump technology, offers perfect solutions to the needs of businesses with its highly efficient and durable Betabloc 32-160 Centrifugal Pump model. This model, offered for sale with the assurance of ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. , has a wide range of uses, from industrial facilities to water purification systems. KSB Betabloc 32-160 Centrifugal Pump is a compact, reliable and energy-saving pump system thanks to its monoblock design.
Centrifugal Pump Features
Monoblock Design: Compact structure with integrated motor saves space.
High Efficiency: Optimized hydraulic structure that saves energy.
Silent Operation: Low sound level with minimal vibration.
Durable Material: Long-lasting use thanks to stainless steel and cast iron body.
Technical Information
Pump Type: Centrifugal, monoblock
Exit Diameter: mm
Nominal Flow: .7 m³/h
Maximum Pressure: bar
Operating Temperature: -10°C to +120°C
Body Material: Cast iron/stainless steel
Engine Power: .5 - 5.5 kW (may vary depending on configuration)
Protection Class: IP
Connection Standard: Compliant with DIN/ISO standards
KSB Betabloc 32-160 Centrifugal Pump Working Principle
KSB Betabloc 32-160 is a high-efficiency pump model that works on the Centrifugal Pump principle and is designed to transmit fluids at a certain speed and pressure. Centrifugal Pumps are machines with rotary motion that move the liquid using centrifugal force.
Inlet (Suction Stage):
The pump sucks the liquid in through the inlet flange.
Thanks to the pressure difference in the suction line, the liquid is directed to the inside of the pump.
Acceleration by Centrifugal Force:
The impeller (impeller) inside the pump rotates at high speed and provides kinetic energy to the liquid.
With the rotation of the wheel, the liquid accelerates by being thrown outwards from the center.
Pressure Conversion:
The liquid coming out of the impeller gains pressure while losing speed, thanks to the diffuser or volute body.
This conversion ensures efficient pressurization of the fluid.
Output (Pressurization Stage):
High pressure liquid is directed out of the outlet flange and transferred to the piping system.
Thus, the liquid is pumped to the required system (water treatment, industrial processes, cooling systems, etc.).
KSB Working Advantages of Betabloc 32-
Balanced Flow: Thanks to the central impeller and volute design, liquid flow occurs in a balanced manner.
Energy Efficiency: Provides less energy consumption with optimized design that minimizes hydraulic losses.
Quiet and Low Vibration Operation: It works with minimum sound level thanks to the monoblock structure and rigid design.
Ease of Maintenance: Maintenance requirement is minimal thanks to the integrated motor and compact design.
Centrifugal Pump Usage Areas
Industrial Facilities: Liquid transfer in the chemical, food and pharmaceutical industries.
Water Supply and Purification: Effective solution for drinking water and process water applications.
Heating and Cooling Systems: Ideal for use in HVAC and boiler feeding applications.
Fire Extinguishing Systems: Reliable performance in pressurized water lines.
Agricultural Irrigation: Efficient water distribution and use in agricultural applications.
