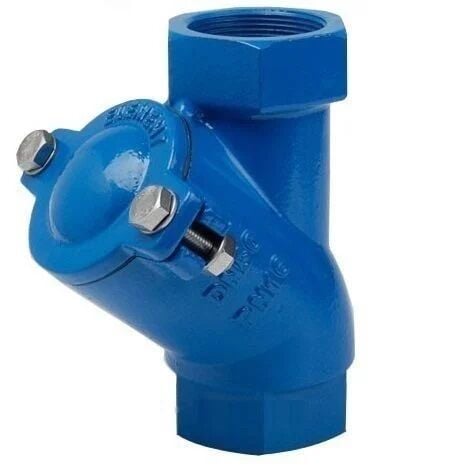

Bulk Wastewater Check Valve – Safe and Effective Wastewater Management
ORFA Industrial Products Industry and Trade Inc. , which offers reliable and long-lasting solutions for wastewater systems, prevents problem-free water backflow with its geared ball-type wastewater check valve, protecting your installations. This specially designed product allows only one-way fluid flow and prevents backflow of wastewater, increasing installation efficiency.
Unlike spring-loaded or swing check valves commonly used in clean water systems, the ball-type wastewater check valve is designed for safe use, particularly in systems containing wastewater. Unlike clean water check valves, its large internal mechanism and special design minimize the risk of dirt accumulation and blockage within the valve. This feature is particularly important in industrial installations and sewage systems, as blockages in these systems can lead to serious malfunctions and costly maintenance.
Bulk wastewater check valves are used primarily at the discharge port of submersible pumps. These check valves prevent the return of wastewater pumped by submersible pumps and ensure proper fluid direction within the system. With their robust construction, high-pressure resistance, and wide operating temperature range, this product delivers reliable performance even under challenging conditions.
Technical Information:
Type: Gear Type
Body: GGG 50 ductile iron
Pressure: Pn16
Operating temperature: -20°C to +80°C
Connection diameter: 1 1/2"
Working Principle of Check Valve
A bulk wastewater check valve is designed to allow fluid to flow in only one direction. Its internal structure incorporates a ball mechanism that operates based on pressure differential. When water or liquid exerts pressure on the valve's inlet, the ball moves, allowing the fluid to flow freely. At this point, the valve opens, allowing fluid to flow in the desired direction.
However, when fluid pressure in the system stops or reverse flow begins, the ball moves back, closing the valve's outlet. This mechanism prevents reverse flow, preventing fluid backflow, line blockages, pressure loss, or potential damage. With this simple yet effective mechanism, the bulk wastewater check valve ensures that fluid in the system only flows forward.
Featured Work Details:
Movement by Flow Pressure: The ball inside the check valve opens and allows water to pass only when the liquid moves in a forward direction.
Backflow Prevention: When liquid tries to return, the ball closes the outlet, preventing reverse flow. This improves system performance and safety.
Anti-clogging Design: The check valve's large internal mechanism prevents the accumulation of dirt, which is particularly common in wastewater systems. This allows the valve to operate without clogging for extended periods.
Self-Closing: Since the operating principle is based entirely on pressure differences, no external power or control mechanism is required. The valve automatically closes when flow stops.
Application Areas:
Sewerage systems: Used to ensure the correct flow of wastewater and prevent its return.
Industrial applications: Ideal for reliable water management in factories and heavy industrial facilities.
By securing your plumbing systems with ORFA Endüstriyel 's durable and high-performance Bulk Wastewater Check Valve, you can both minimize the risk of malfunction and ensure long-lasting use.
