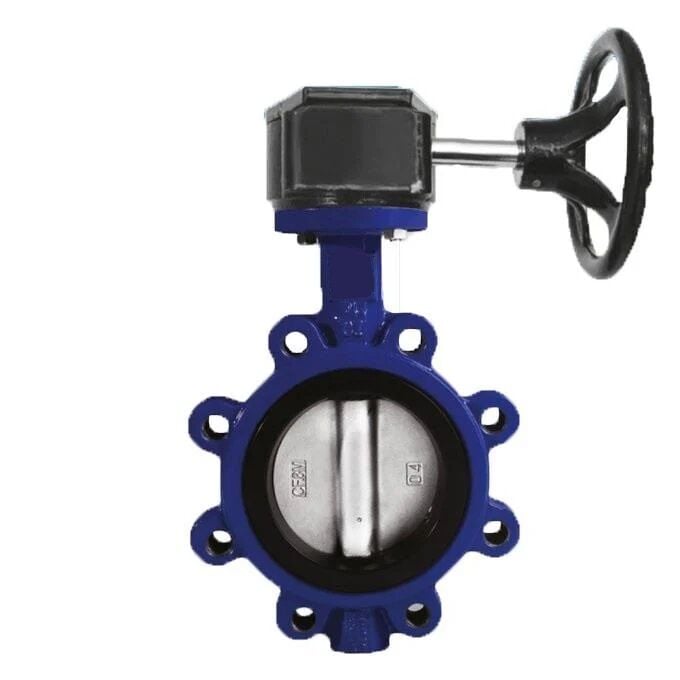

BURÇELİK Lug Type Butterfly Valve with Reducer DN 65

BURÇELİK Reducer Lug Type Butterfly Valve DN 65: Reliable Control with Stainless Steel Disc

BURÇELİK is one of Turkey's first butterfly valve manufacturers and a trusted brand in the field of industrial fluid control solutions. The BURÇELİK Reducer Lug-Type Butterfly Valve DN65 is designed to provide reliable flow control and isolation in general plumbing lines and applications where one side of the line must be pressurized.

This valve is used in medium-sized lines with a nominal diameter of DN65 (2 1/2 in.) and is equipped with a reducer (gearbox) that facilitates manual control.

What is a Lug Type Butterfly Valve and What Are Its Advantages?

A lug-type butterfly valve is a type of valve with threaded holes (lugs) on both sides of its body. This design allows the valve to be bolted between two flanges and offers its most significant advantage:

• Easy Maintenance and End of Line Isolation: The valve can be used as an end of line blanking valve by bolting it to a single flange, or it allows one side of the line to remain under pressure while the other side is removed.

• Durable Structure: The body is generally manufactured from GGG40 or GGG40.3 Ductile Iron material and Epoxy coating is applied for corrosion resistance.

Butterfly Valve Features and Technical Details

• Nominal Diameter: DN65 (2 1/2 inches).

• Connection Type: Lug Type.

• Valve (Disc) Material: AISI 304 Stainless Steel (or 316L). The stainless steel valve provides superior resistance to non-corrosive and light chemical fluids.

• Gasket Material: EPDM (Ethylene Propylene Diene Monomer). EPDM gaskets are highly resistant to fluids such as water, hot water and ozone.

• Maximum Working Pressure: Generally suitable for PN16 (16 bar) pressure class.

• Maximum Operating Temperature: With EPDM seal, it generally operates safely between 110 °C and 120 °C .

• Control Type: Reducer (Gearbox). This allows precise and easy manual on/off operation even in diameters such as DN65.

• Alternative Control: The valve can also be controlled with pneumatic or electric actuators thanks to its top flange that complies with the ISO 5211 standard.

Butterfly Valve Usage Areas

• Heating, ventilation and air conditioning (HVAC) systems.

• Water treatment and distribution systems.

• Chemical transfer (with appropriate valve/seal option).

• Fire extinguishing systems and general industrial installations.
