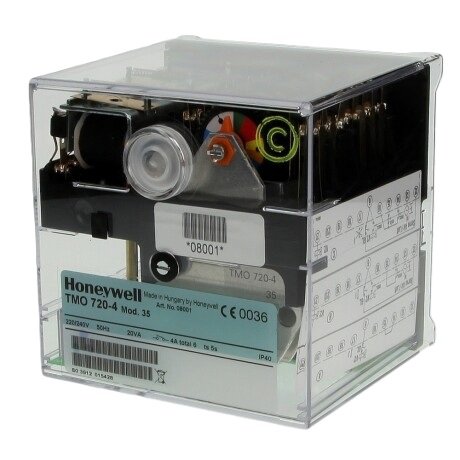

Satronic Honeywell TMO 720.4 Mode 35 Burner Control Unit
Satronic Honeywell TMO 720.4 Mod 35 is an electronic combustion relay designed for medium power diesel and oil burners. It is suitable for intermittent operation on burners with 1 or 2 stages, forced air output, over 30 kg/h. This unit ensures safe ignition and operation of the burner, monitors the presence of flame and safely shuts down the burner in the event of any malfunction.
TMO 720.4 mod 35 Features:
- Model: TMO 720.4 Mod
- Application: Oil burners
- Burner Type: Forced air outlet, 1 or 2 stages
- Fuel: Diesel and liquid fuels
- Power Range: Medium power (over 30 kg/hour)
- Operating Voltage: / 240 V (-15…+10%), 50 Hz (40 - 60 Hz)
- Power Consumption: Approximately 15 VA
- Flame Sensor: Photoresistor FZ 711 S or Infrared sensor IRD 1010.
- Pre-Cleaning Time: sec
- Safety Time: sec
- Time After Ignition: .5 sec
- Operating Temperature: -20ºC ... +60ºC
- Protection Class: IP
- Weight: Approx. 950g
TMO 720.4 mod 35 Advantages:
- Reliable and precise flame control
- Fast and accurate response times
- Easy to install and use
- Compact and robust design
- Wide operating temperature range
- Overload protection
- Various flame sensor options
Areas of Use:
- Residential heating systems
- Industrial heating systems
- Hot water boilers
- Steam boilers
