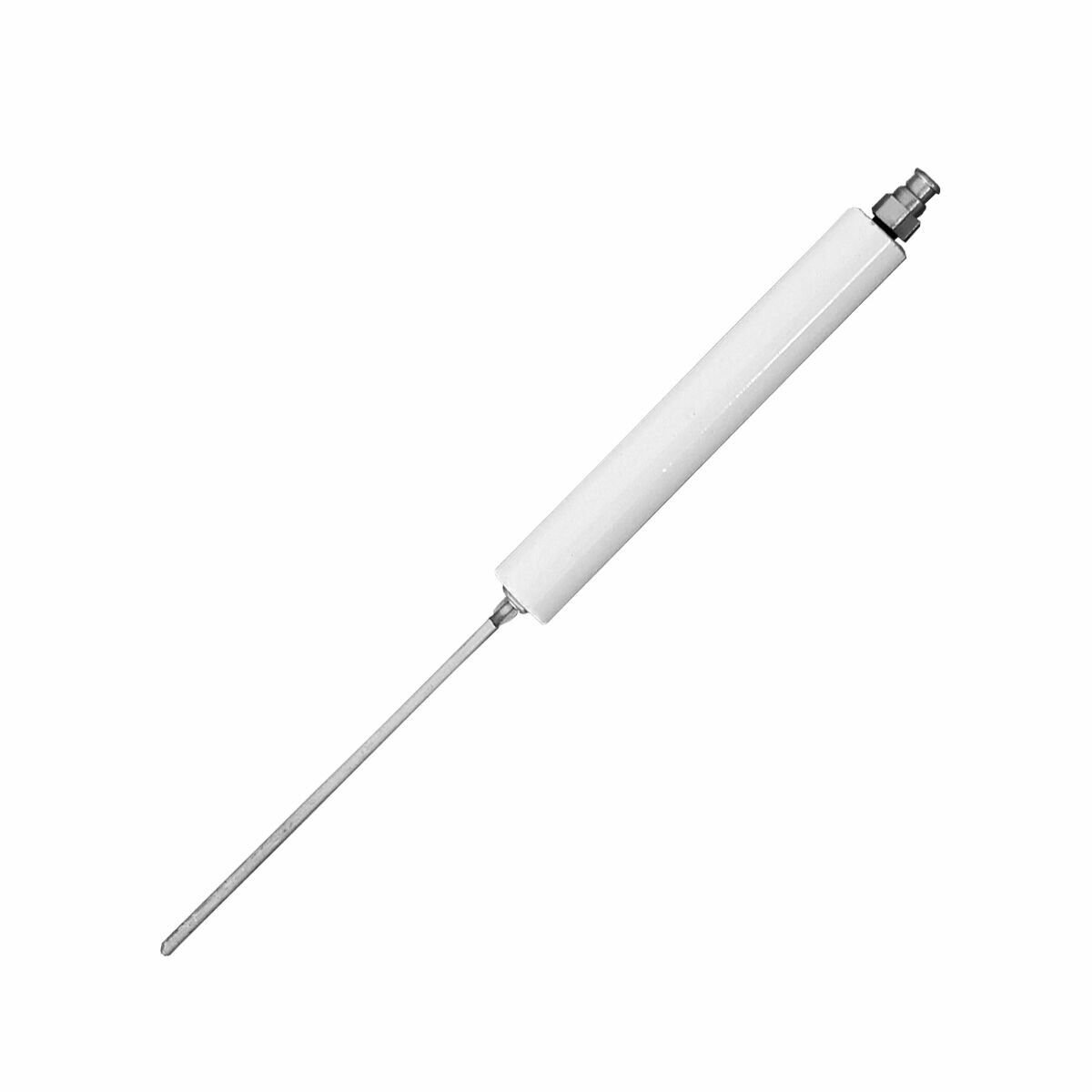

Burner Ignition Electrode 14 X 40mm

Burner Ignition Electrode 14 x 40 mm: Reliable Start of Combustion Systems

Industrial and commercial burners require an ignition mechanism to create the initial spark in the combustion chamber of the fuel. The burner ignition electrode is a critical component that performs this vital burner function, generating a high-voltage spark to ignite the fuel-air mixture. Specific dimensions, such as 14 x 40 mm , ensure the electrode fits perfectly into the burner model and operates in the correct position.

What is a Burner Ignition Electrode and What Does It Do?

The burner ignition electrode is a ceramic-insulated metal rod that uses the high voltage generated by the burner's ignition transformer to create a spark between the electrode tips. The spark provides the energy needed to initiate combustion of the fuel.

Main Functions of the Burner Ignition Electrode:

• Spark Generation: Converts the high voltage from the ignition transformer into a spark pulse in the air gap between the electrode tips.

• Combustion Start: This spark initiates the combustion process by igniting the fuel-air mixture sprayed from the burner.

• Reliability: The correct size and construction of the electrode ensures that the spark is fired reliably in the same place every time, thus ensuring trouble-free operation of the burner.

Features of Burner Ignition Electrode:

• Dimensions (14 x 40 mm):

  • 14 mm: It refers to the outer diameter of the ceramic insulator.

  • 40 mm: Indicates the total length of the electrode. These dimensions ensure the electrode is correctly positioned inside the burner and provide the optimum spark position.

• Material:

  • Metal Rod: It is made of a material (usually alloy steel) that is resistant to high temperatures and is a good conductor.

  • Ceramic Insulator: Insulates high-voltage electrical current, ensuring sparks occur only at the desired location. It is also resistant to high temperatures.

• Durability: It must be a long-lasting spare part as it is constantly exposed to high temperature and spark erosion.

Electrode Failure and Its Significance:

The ignition electrode can fail over time due to wear, contamination, or cracking. A faulty electrode can cause:

• Failure of the Burner to Ignite: If the spark is weak or absent, the burner will not work.

• Irregular Combustion: Combustion that does not start at the correct location reduces efficiency and increases emissions.

• Safety Risk: When combustion does not occur, fuel accumulation can occur, which activates the burner's safety systems and can even create dangerous situations.

Therefore, checking the ignition electrode during burner maintenance and replacing it when necessary is vital for the efficiency and safety of the burner.

Burner Ignition Electrode Usage Areas:

• Industrial and Commercial Burners: Gas, diesel or fuel-oil burners.

• Boiler and Furnace Systems: Steam boilers, hot water boilers and industrial furnaces.

• Hot Air Generators: Fuel-powered hot air generators.

• Other Industrial Combustion Systems: All systems in which combustion starts automatically.
