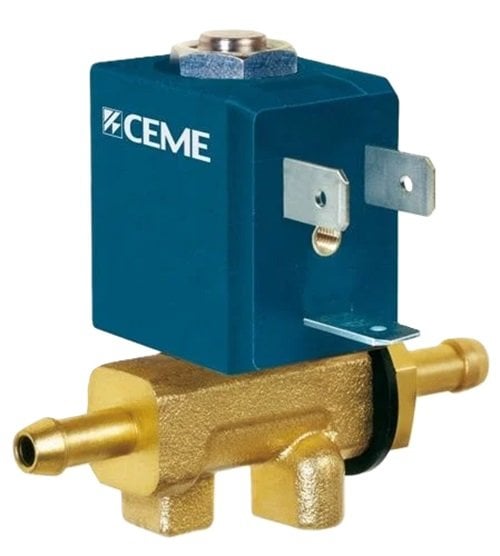

Ceme 5536 Solenoid Valve with Hose Connection

Ceme 5536 Solenoid Valve: Compact and Reliable Flow Control

Ceme 55 series solenoid valves are high-performance valves designed to quickly and reliably control the flow of air, water, steam, and other fluids in industrial applications . These solenoid valves are preferred in many industries thanks to their compact design, durable construction, and wide media compatibility .

What is the Ceme 5536 Solenoid Valve and How Does It Work?

Ceme 55 series Solenoid Valves are available in 2/2-way Normally Closed (NC) and Direct Acting solenoid valve types . This means that when there is no electrical power, the valve remains closed and does not allow fluid to pass through . When electricity is applied to the valve coil, a magnetic field is created, the valve opens, and flow begins .

Solenoid Valve Basic Features and Advantages:

• Working Principle: It is a 2/2 way, normally closed (NC) and direct acting valve . This means that the valve does not require a minimum pressure difference to operate .
• Durable Material: The body and tube are made of brass . Internal parts are stainless steel . This increases the valve's durability and corrosion resistance. Nickel plating is available upon request for food applications .
• Wide Media Compatibility: Suitable for controlling fluids such as air, water, steam, gas, diesel oil and naphtha . EPDM, NBR and FPM are available as seal materials .
• High Performance: Can withstand maximum working pressure (MOPD) up to 17 bar for 1.5 mm orifice diameter , up to 13 bar for 2.0 mm orifice and up to 5 bar for 3.0 mm orifice .
• Temperature Resistance: Fluid temperature can reach up to 140°C .
• Compact Design: With its 22 mm coil diameter, it offers easy installation in narrow spaces and automation panels .
• Standard Connections: 5536 series has hose connections . 5512 series has 1/4" threaded connection.

• Various Voltage Options: Coil options are available in different voltages such as 220-230V AC, 100-120V AC and 12-24V DC

Ceme 55 Series Solenoid Valve Usage Areas:

• Industrial Flow Control: Factory automation, machine manufacturing and general industrial processes.
• Heating and Cooling Systems: ON-OFF control in water and steam lines.
• Compressed Air Systems: Flow control and isolation in air lines.
• Water and Fuel Lines: Industrial water lines and burner systems as fuel valves .
• Food and Beverage Industry: Hygienic practices with appropriate materials and certifications .
