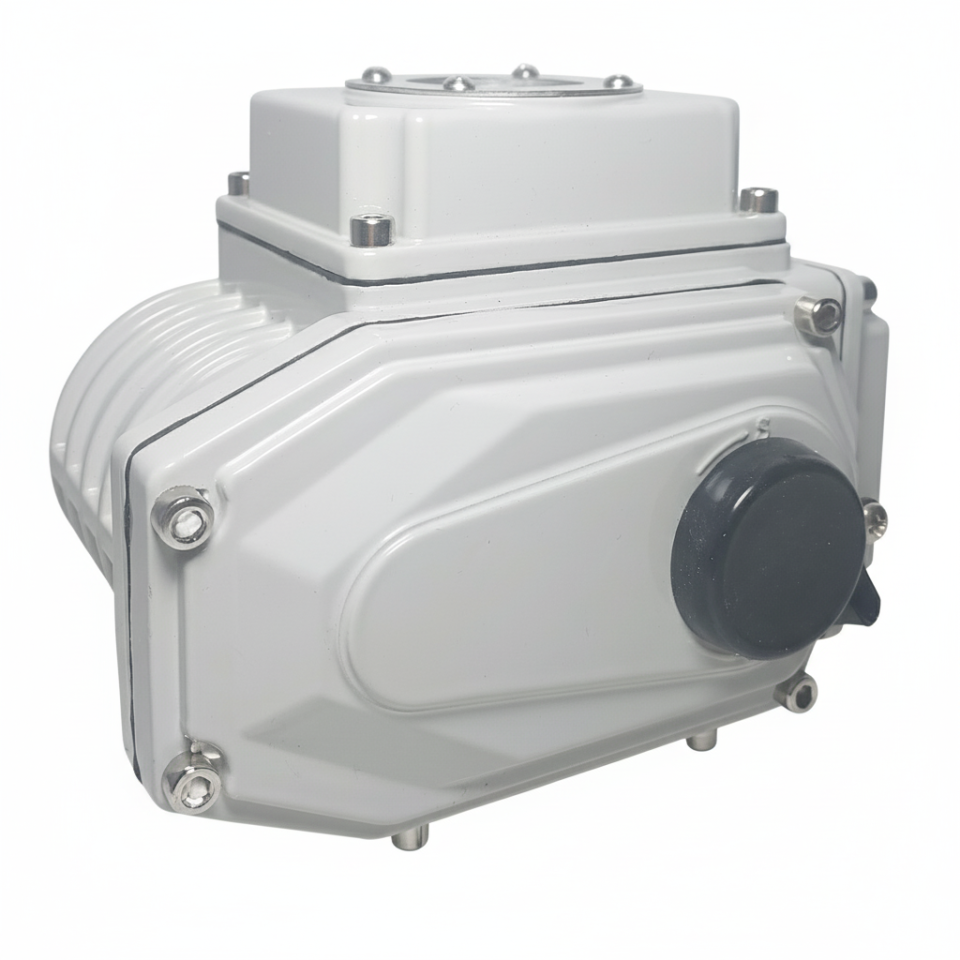

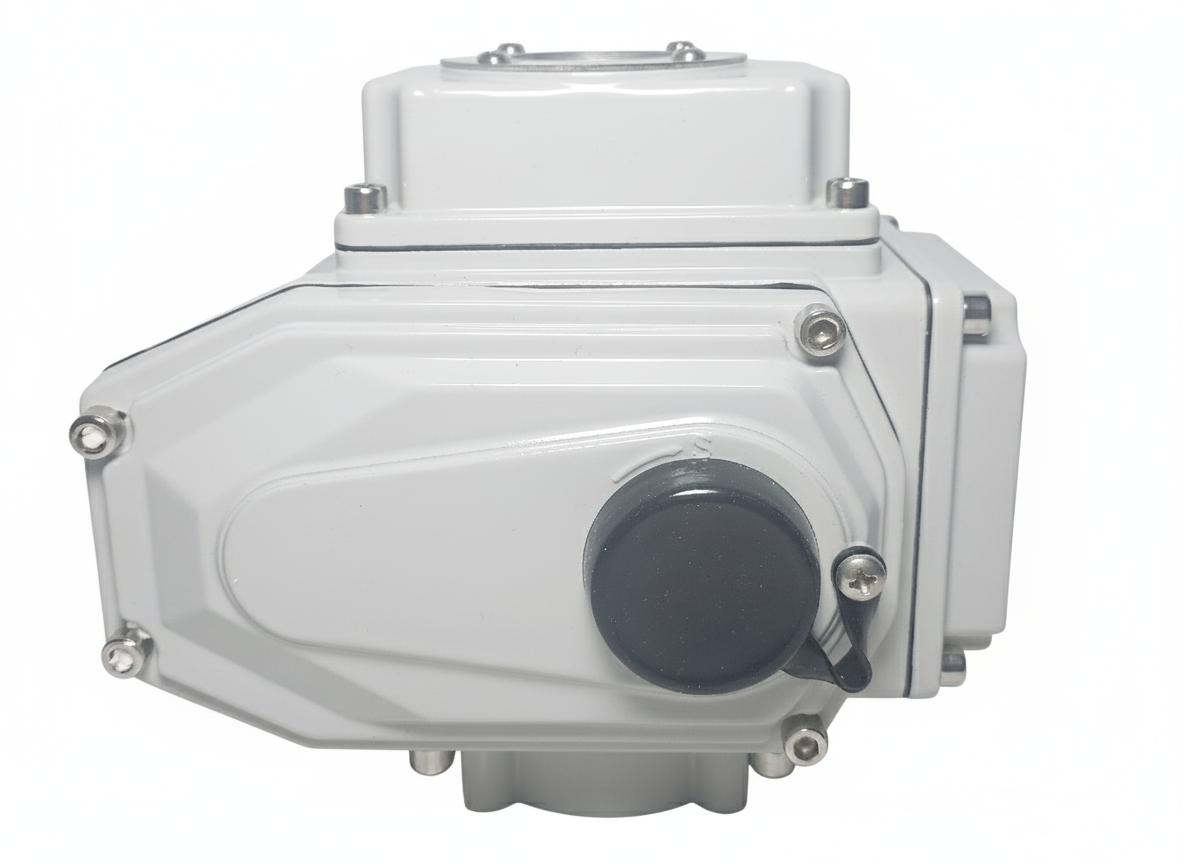

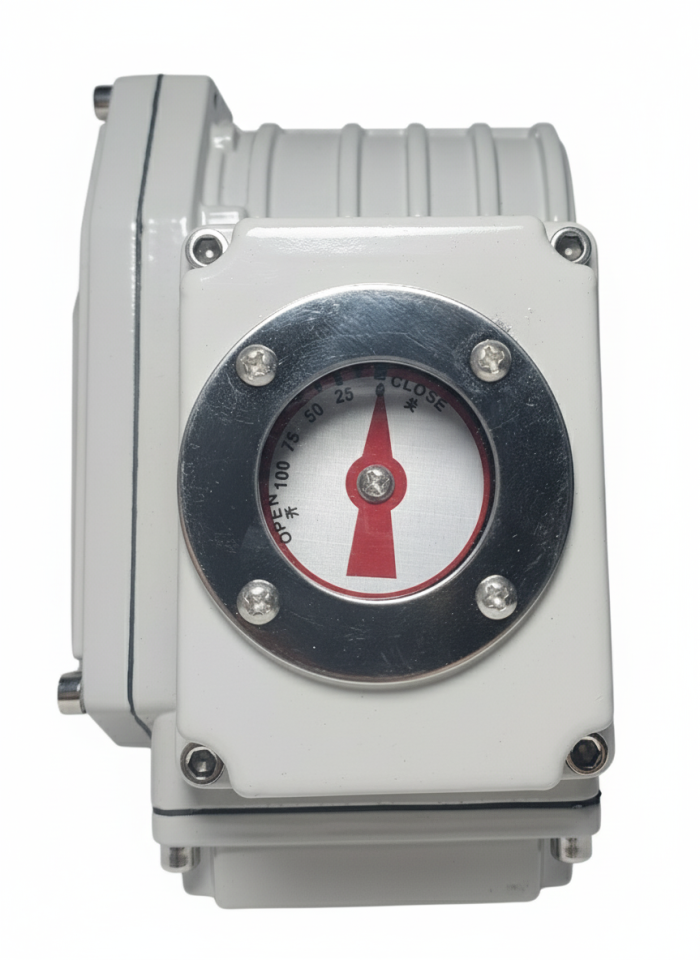

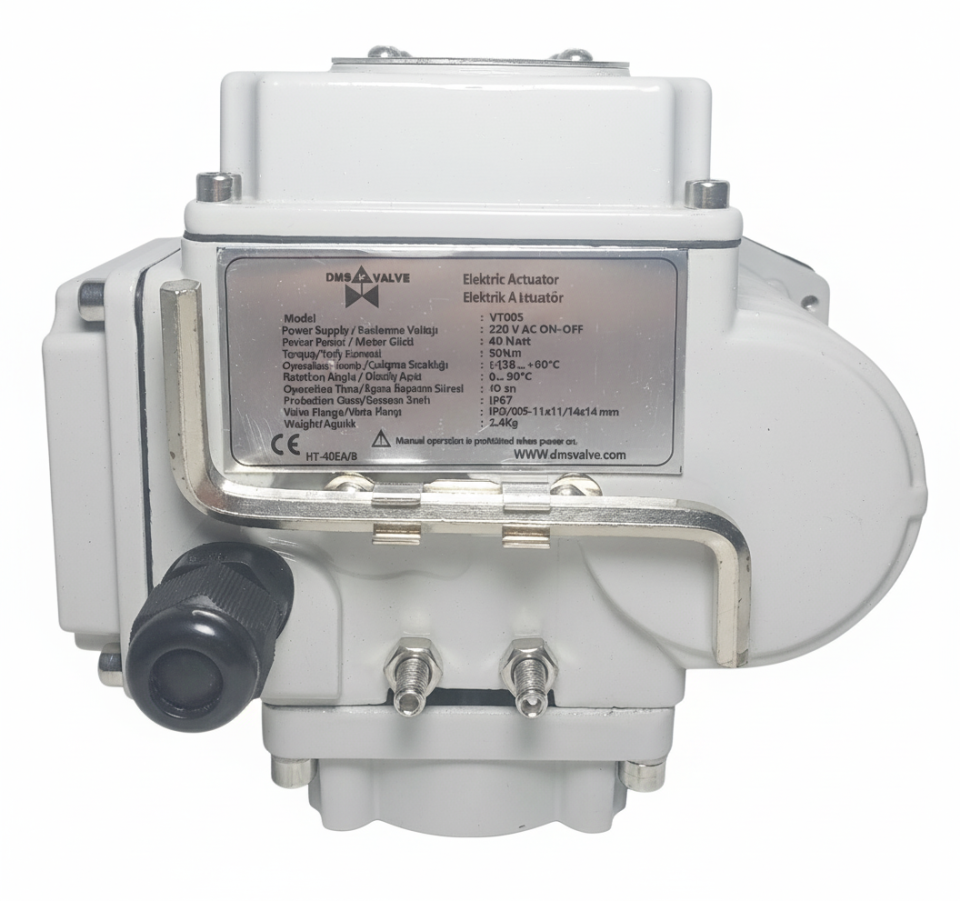

DMS Electric Actuator 50Nm 220V AC
%58 Discounted Product
0 - Comment / Read Comments
366,81 EUR
154,06 EUR
Category
Brand
Stock Code
0211951000640000000000001
Warranty Period
24 Month
Price
305,68 EUR + VAT
* Installments starting from 154,06 EUR!
Add to Cart
DMS Electric Actuator 50Nm 220V AC
DMS Electric Actuator is designed for high-performance valve automation with a torque capacity of 50 Nm. Its ISO5211-compatible body, aluminum injection housing, and IP67 protection class ensure reliable operation in industrial environments.Working Principle
The actuator operates with a 220V AC power supply and provides open-close control for valves. The 50 Nm torque generated by the motor is transmitted through a 0° to 90° rotation angle, completing full opening or closing operations within 30 seconds. It operates on an On-Off principle, automating fluid control in the system.
Electric Actuator Technical Specifications
Electric Actuator Technical Specifications
Power Supply: 220V AC
Motor Power: 15 W
Torque Output: 50 Nm
Operating Temperature: -30°C … +60°C
Rotation Angle: 0° – 90°
Opening/Closing Time: 30 seconds
Protection Class: IP67
Housing Material: Aluminum injection
Mounting Standard: ISO5211
Valve Flange: F03 / F05 – 11x11 / 14x14 mm
Weight: 2.4 kg
Electric Actuator Applications
Electric Actuator Applications
Industrial valve automation
Water treatment plants
Heating and cooling systems (HVAC)
Chemical and petrochemical plants
Food and beverage industry
Power plants
DMS Electric Actuator 50Nm 220V AC offers a reliable and long-lasting solution for industrial fluid control with its strong torque capacity, IP67 protection rating, and ISO5211 standard connection.
DMS Electric Actuator 50Nm 220V AC offers a reliable and long-lasting solution for industrial fluid control with its strong torque capacity, IP67 protection rating, and ISO5211 standard connection.
| Voltage | : | 220 Volt Ac |
