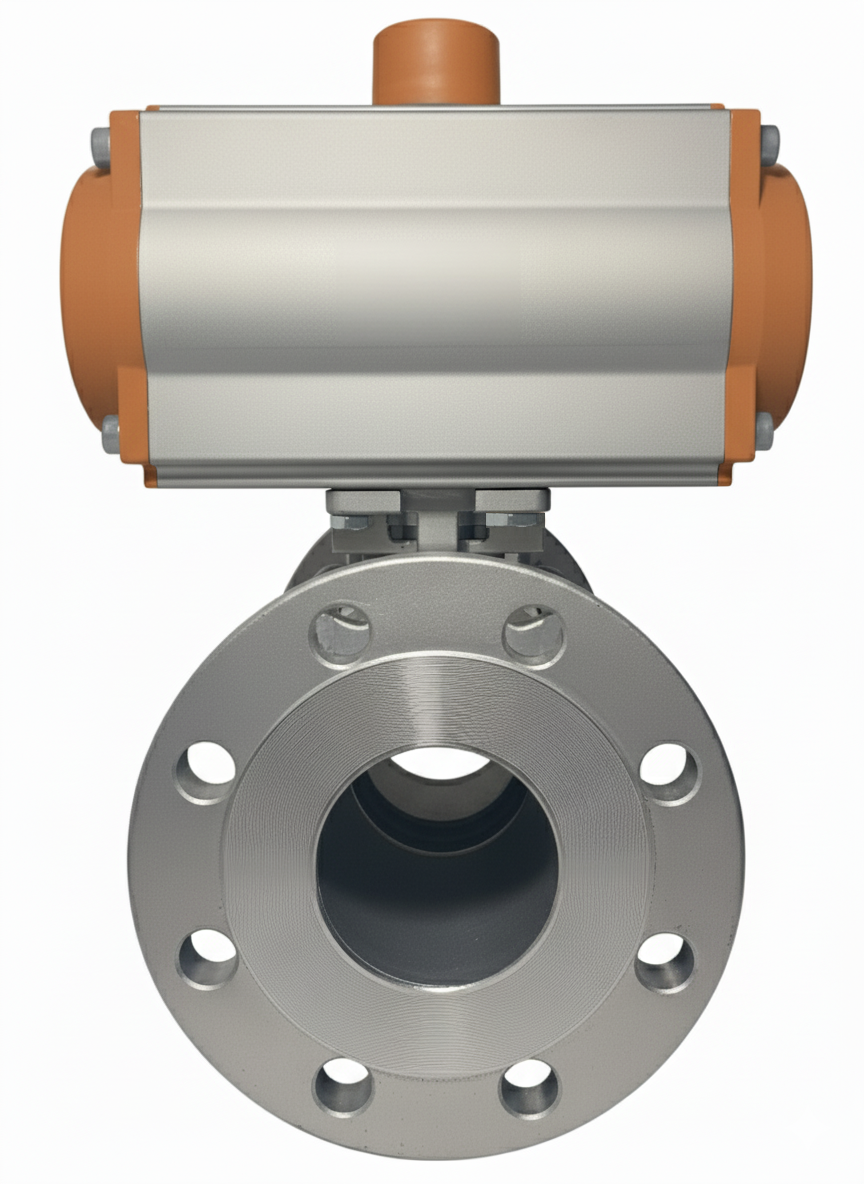

Stainless Ball Valve with Double Acting Pneumatic Actuator PN40 DN25
%55 Discounted Product
0 - Comment / Read Comments
222,15 EUR
99,97 EUR
Category
Brand
Stock Code
1601030052070510010000206
Warranty Period
24 Month
Price
185,13 EUR + VAT
* Installments starting from 99,97 EUR!
Add to Cart
Stainless Ball Valve with Double Acting Pneumatic Actuator PN40 DN
Stainless Ball Valve with Double Acting Pneumatic Actuator is a high-strength solution developed for safe and fast control of fluids in industrial facilities. Ball Valve, designed in size DN25 (3'' nominal diameter), offers high resistance to corrosion with its AISI304 stainless steel body and sphere structure. Thanks to the PN40 pressure class, it can be used safely up to 40bar. By providing fully automatic control with the pneumatic actuator, both opening and closing operations are carried out precisely and reliably. ORFA Industrial This valve, offered with its assurance, is an ideal option for modern industrial automation systems.Operating Principle
The valve is a pneumatic actuator of the perforated ball inside the body. It works by rotating it 90° with the help of . The double-acting pneumatic actuator works with compressed air in both opening and closing movements, providing maximum safety and fast response time. When the power is cut off, the valve remains fixed in its current position, which increases process safety.
Technical Specifications
Technical Specifications
Nominal Diameter (DN): DN25 (1'')
Pressure Capacity: PN40 (up to 40bar)
Body Material: AISI304 Stainless Çelik
Küre Malzemesi: AISI304 Paslanmaz Çelik
Bağlantı Tipi: Flanşlı
Sıcaklık Aralığı: -25 ºC … +180 ºC
Actuator Type: Double Acting Pneumatic Actuator
Working Environment: Water, air, gas, steam, oil and chemical compatible fluids
Ball Valve Usage Areas
Ball Valve Usage Areas
Chemistry and petrochemical industry
Water treatment facilities
Energy production plants
Food and beverage industry
Steam and hot oil lines
Industrial automation systems
Stainless Ball Valve with Double Acting Pneumatic Actuator PN40 DN is a reliable, long-lasting and automation-compatible tool in industrial applications with its high pressure resistant structure, stainless steel body and double-acting actuator system. is the solution.
| Diameter-Dn | : | DN 25 |
| Body | : | Stainless |
| Pressure Class | : | PN 40 |
