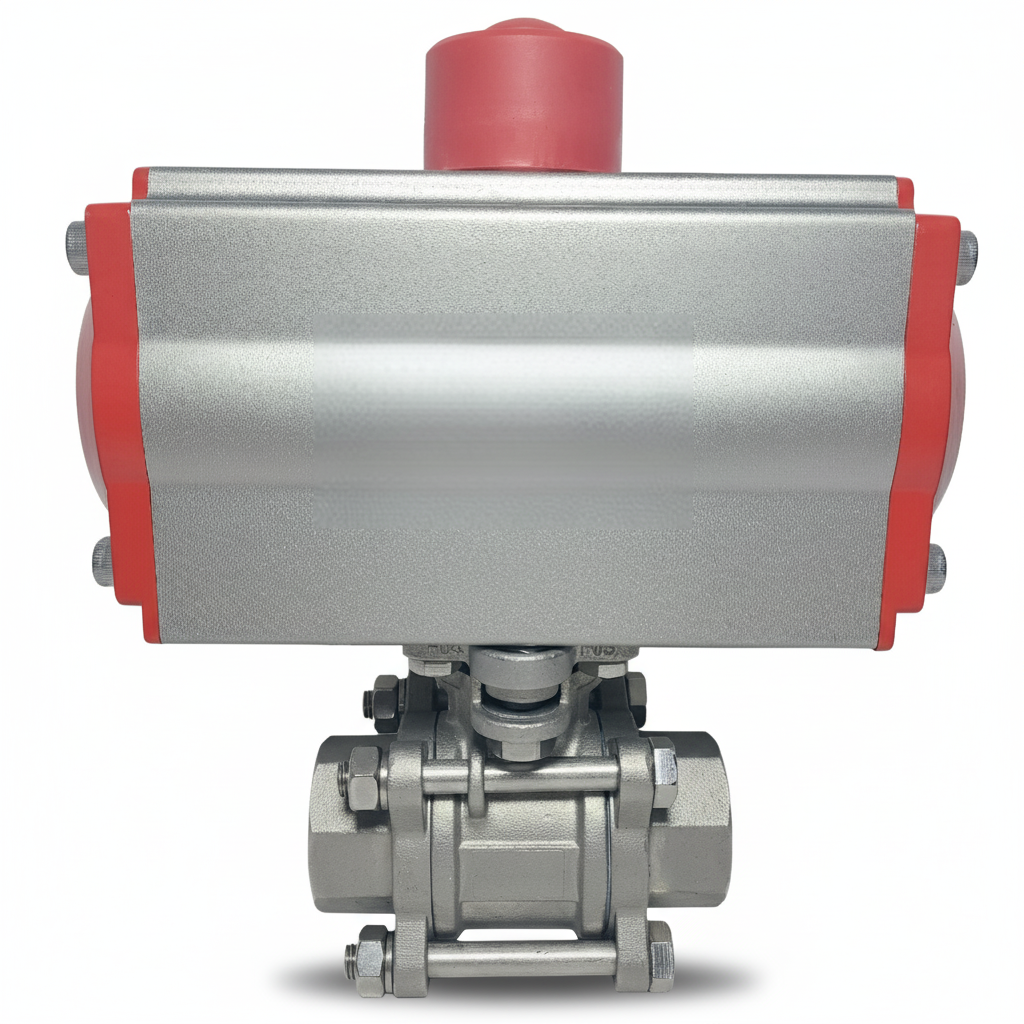

Stainless Ball Valve PN63 1 1/2'' with Pneumatic Actuator
Category
Brand
Stock Code
1601030052070510020000108
Warranty Period
24 Month
Double Acting Pneumatic Actuated Stainless Ball Valve PN63 1 1/2"
Double Acting Pneumatic Actuated Stainless Ball Valve is a high-strength product developed for safe and fast control of fluids in industrial facilities. is the solution. Designed in size 1 1/2", the valve offers high resistance to corrosion with its AISI304 stainless steel body and sphere structure. Thanks to the PN63 pressure class, it can be used safely up to 63bar. By providing fully automatic control with the pneumatic actuator, both opening and closing operations are carried out precisely and reliably. ORFA Industrial This valve, offered with its assurance, is an ideal option for modern industrial automation systems.Stainless Ball Valve with Pneumatic Actuator Working Principle
Valve, It works by rotating the perforated sphere inside the body 90° with the help of a pneumatic actuator. The double-acting pneumatic actuator works with compressed air in both opening and closing movements, providing maximum safety and fast response time. When the power is cut off, the valve remains fixed in its current position, which increases process safety.
Stainless Ball Valve with Pneumatic Actuator Technical Specifications
Stainless Ball Valve with Pneumatic Actuator Technical Specifications
Nominal Diameter: 1/2"
Pressure Capacity: PN63 (up to 63bar)
Body Material: AISI304 Stainless Çelik
Küre Malzemesi: AISI304 Paslanmaz Çelik
Bağlantı Tipi: Dişli
Sıcaklık Aralığı: -25 ... fluids
Usage Areas of Stainless Ball Valve with Pneumatic Actuator Chemistry and petrochemical industry
Water treatment facilities Energy production plants
Food and beverage industry
Food and beverage industry
Steam and hot oil lines
Industrial automation systems
Stainless Ball Valve with Double Acting Pneumatic Actuator PN63 1 1/2"
is a reliable, long-lasting and automation-compatible tool in industrial applications with its high pressure resistant structure, stainless steel body and double-acting actuator system. is the solution.
Buhar ve kızgın yağ hatları
Endüstriyel otomasyon sistemleri
Çift Etkili Pnömatik Aktüatörlü Paslanmaz Küresel Vana PN63 1 1/2" , yüksek basınca dayanıklı yapısı, paslanmaz çelik gövdesi ve çift etkili aktüatör sistemi ile endüstriyel uygulamalarda güvenilir, uzun ömürlü ve otomasyon uyumlu bir çözümdür.
| Thread Size | : | 1 1/2'' |
