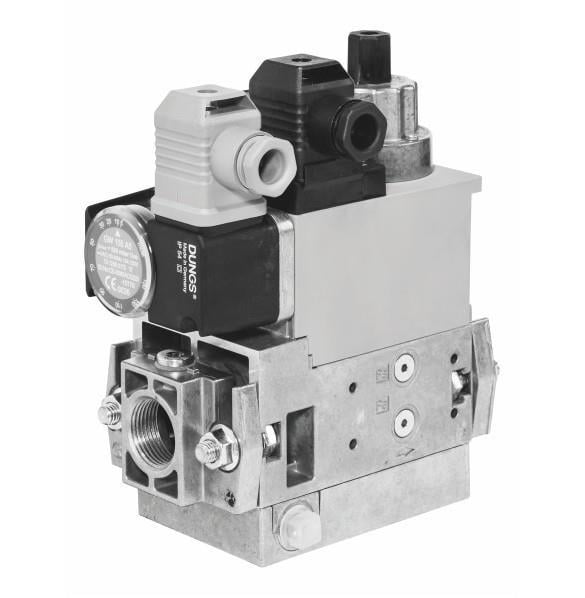

Dungs Single Stage Multiblock MB-DLE 405 B01 S50
ORFA Industrial Products Industry and Trade Inc. continues to offer pioneering solutions in gas fuel control and safety. The Dungs MB-DLE 405 B01 S50 Multiblock offers a perfect combination for gas burners, ensuring safe and efficient operation. This multiblock boasts advanced technology in gas control systems, combining various safety and regulation functions in a compact fixture.
Product Features
Integrated System: The Dungs Multiblok integrates a filter, regulator, valves, and pressure switches into a single, compact fixture. This feature saves space and simplifies installation.
Filtration: Thanks to the fine filter system, the dirt collector works effectively and ensures clean transmission of the gas.
Valve Assemblies: There is one single-stage and one two-stage valve. One valve is fast-opening, while the other has the option of slow or fast opening.
Solenoid Valves: Solenoid valves designed according to DIN EN 161 class A group 2 ensure a safe gas flow with an operating pressure of up to 360 mbar (36 kPa).
Proportional Regulation: In accordance with DIN EN 88 class A group 2 standards, the outlet pressure can be precisely adjusted by means of the proportional regulator.
High Flow: Increases efficiency by reaching high flow rates even at low pressure gradients.
Modular System: Independent control of components such as valves and pressure switches offers flexibility and individual solutions to the user.
Ease of Installation: Thanks to flange connections with pipe threads in accordance with ISO 7/1 standard, it offers the advantage of simple installation, small dimensions and low weight.
Technical Specifications
Body: Made of aluminum pressure cast material.
Diaphragms and Seals: Manufactured using NBR-based and siloprene (silicone rubber) materials.
Connection: Threaded connection system.
Nominal Diameter: 1/2".
Maximum Operating Pressure: 360 mbar (36 kPa).
Output Pressure Adjustment Range: 4-50 mbar.
Operating Temperature: It can operate between -15 °C and +70 °C.
Voltage / Frequency: 220 - 230 V AC, 50 - 60 Hz.
Stage: Single stage.
Areas of Use
The Dungs MB-DLE 405 B01 S50 Multiblock stands out with its modular system, offering individual solutions for gas safety and regulation techniques. It is suitable for gases from families 1, 2, and 3, as well as other neutral gaseous substances. It is particularly popular in industrial facilities, heating systems, and large-scale gas burners.
Approvals and Certificates
EC Type Approval Certificate: The product complies with the EC Gas Appliances Directive and the EC Pressure Equipment Directive.
International Approvals: Dungs MB-DLE 405 B01 S50 has the required approvals in many important gas consuming countries.
The Dungs Single-Stage Multiblock MB-DLE 405 B01 S50 offers a perfect combination of safety and performance. At ORFA Industrial Products Industry and Trade Inc. , we are proud to offer this superior quality product to our customers. Please contact us for more information and to place an order.
