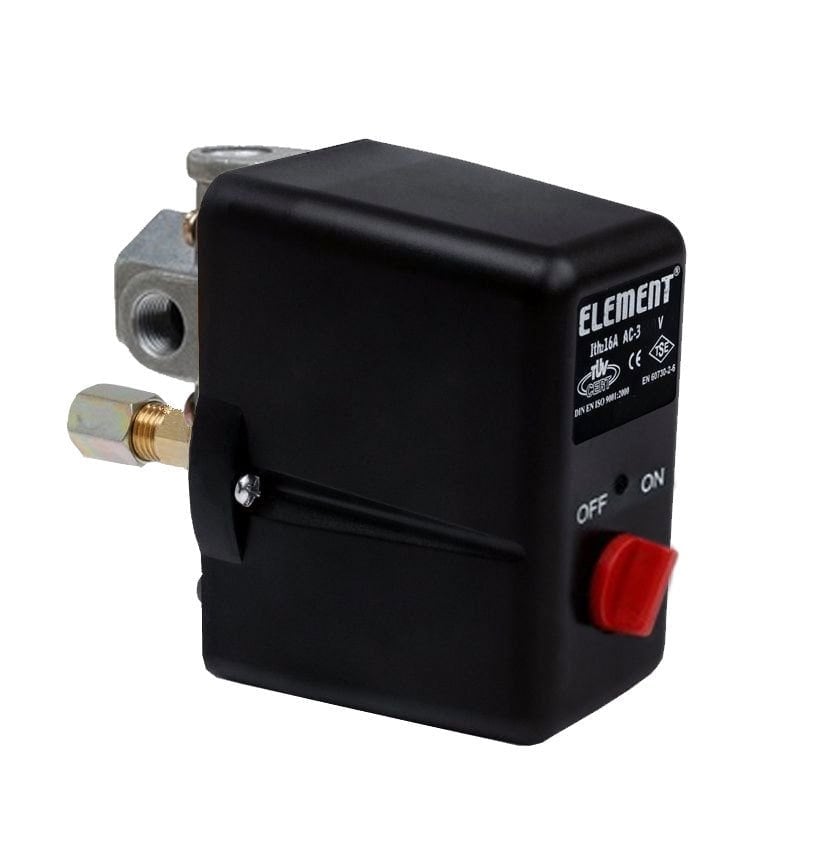

Element ELT-3CO-3Y Pressure Switch 3-11 Bar Relief 3-Way ON/OFF Switch
Brand
Stock Code
1112563098000001110000005
Warranty Period
24 Month
Price
31,98 USD + VAT
%5
36,46 USD
38,38 USD
Installments starting from 36,46 USD!
Element ELT-3CO-3Y Pressure Switch 3-11 Bar Relief 3-Way ON/OFF Switch
ORFA Industrial Warranty for Precise Pressure Control in Pump Systems
Industrial water pumps, hydro tanks and compressor systems require safe and uninterrupted operation, ensured by a pressure switch, a critical control device that automatically monitors and regulates system pressure. The Element brand ELT-3CO-3Y model is a professional pressure switch operating in an adjustable pressure range from 3 to 11 bar, suitable for powerful industrial applications via three-phase 380V electrical connection. This relief pressure switch is equipped with a mechanical system that automatically stops the pump or opens the relief valve when system pressure exceeds predetermined limits. Containing sealing elements made of NBR and rubber diaphragm, the pressure switch demonstrates resistance to wear over many years, eliminating frequent maintenance costs. Available from ORFA Industrial stocks, this 3-way ON/OFF switched pressure switch is equipped with a precision adjustment screw adaptable to any level of industrial installation. The closed contact electrical structure provides high safety in the electrical circuit of the pressure switch, minimizing the risk of short circuit resulting from water damage. This three-phase connected pressure switch is preferred by engineers for protecting powerful motor groups from excessive pressure and ensuring desired energy efficiency at pump discharge. Offered in relief and non-relief versions to adapt to different operating conditions, the pressure switch plays as critical a role as the selection of the front protection filter of the industrial system. The Element pressure switch device, used for protecting equipment from sudden pressure shocks or for energy conservation purposes, is known for its easy installation and minimal maintenance. A quality pressure switch unit that you will choose for your project will provide reliable automation across a wide range from water storage tanks to industrial compressor stations.
Pressure Switch Technical Feature Details
Basic Operating Parameters
| Setting Pressure (Bar) | Opening Point (Bar) | Closing Point (Bar) | Relief Pressure (Bar) | Hysteresis |
|---|---|---|---|---|
| 3.0 | 2.85 | 2.10 | 3.30 | 0.75 Bar |
| 5.5 | 5.35 | 3.85 | 6.05 | 1.50 Bar |
| 8.0 | 7.80 | 5.60 | 8.80 | 2.20 Bar |
| 11.0 | 10.70 | 7.40 | 12.10 | 3.30 Bar |
Pressure Switch Highlighted Advantages
- Automatic Protection: Protects pumps from excessive pressure, extending equipment life.
- Precise Adjustment: Fine-tunable pressure mechanism within 3-11 bar range on the pressure switch.
- Energy Efficiency: Three-phase system is efficiently controlled by the pressure switch, reducing electrical consumption.
- Long Life: NBR diaphragm and durable body structure with minimal maintenance requirements.
Pressure Switch Application Fields
- Building hydro tank systems and water automation control panels.
- Industrial compressors and pressurized air lines.
- Fire suppression systems and pump protection applications.
- Agricultural irrigation and tank filling pressure switch control stations.
Pressure Switch Technical Support and Supply
For installation, adjustment and spare parts support for Element pressure switch, contact the expert team at ORFA Industrial.
With Element ELT-3CO-3Y pressure switch, ensure safe and efficient operation of your pump systems, protect against excessive pressure risks.
