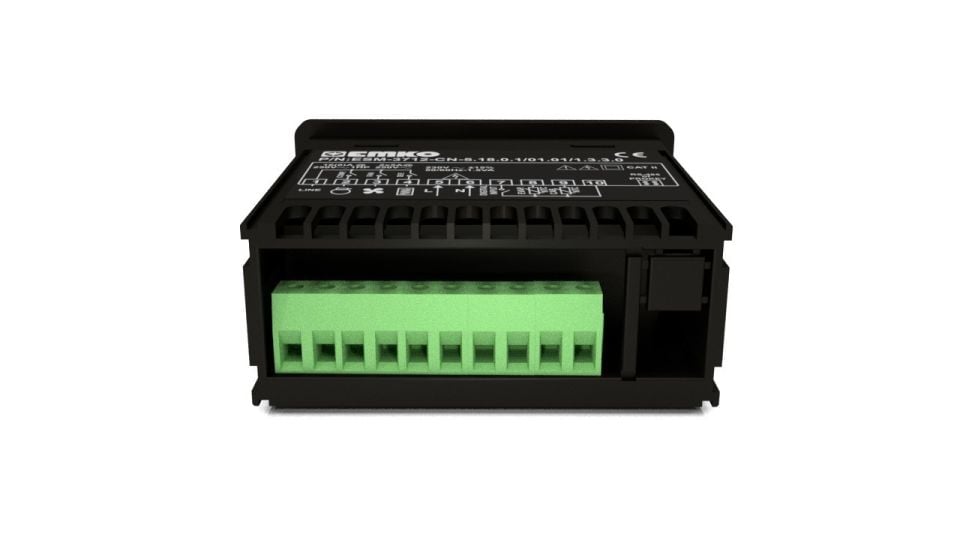

EMKO ESM-3712CN PTC Isı Kontrol Cihazı
%28 Discounted Product
0 - Comment / Read Comments
66,42 USD
47,82 USD
Category
Brand
Stock Code
024908070
Warranty Period
24 Month
Price
55,35 USD + VAT
* Installments starting from 47,82 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
EMKO ESM-3712CN PTC Thermal Controller High Precision Temperature Monitoring – Flexible Input, Wide Voltage Options, Industrial Reliability
EMKO ESM-3712CN PTC Thermal Control Device is an advanced device that is offered with ORFA Industrial assurance and can be integrated into many industrial and commercial temperature control applications thanks to its compact structure and wide input/output options.
NTC and PTC The structure that supports sensor inputs offers flexibility in different applications. Wide temperature range from -50°C to +150°C provides accurate control in cooling and heating systems. It is easy to integrate into central automation systems with RS-485 communication protocol. Device; It is resistant to harsh conditions with IP65 protection class on the front surface.
Temperature Control Device Technical Specifications:
Physical Features
EMKO ESM-3712CN PTC Thermal Control Device is an advanced device that is offered with ORFA Industrial assurance and can be integrated into many industrial and commercial temperature control applications thanks to its compact structure and wide input/output options.
NTC and PTC The structure that supports sensor inputs offers flexibility in different applications. Wide temperature range from -50°C to +150°C provides accurate control in cooling and heating systems. It is easy to integrate into central automation systems with RS-485 communication protocol. Device; It is resistant to harsh conditions with IP65 protection class on the front surface.
Temperature Control Device Technical Specifications:
Physical Features
Dimensions: mm x 34.5 mm x 71 mm
Protection Class: Front: IP65 – Rear: IP
Mounting Type: Panel mount
Front: IP65 - Rear: IP Fast: °C…+50°C
Storage Temperature: -40°C…+85°C
Relative Humidity: Maximum 90% (non-condensing)
Heat Controller Electrical Specifications
Heat Controller Electrical Specifications
Supply Voltages:
Vac ±15%, 50/60 Hz
Vac ±15%, 50/60 Hz
Vac ±15%, 50/60 Hz
Vac/dc ±15%
–30 Vdc
–240 Vac (wide voltage option)
Sensor Input
Sensor Input
NTC (10kΩ @ 25°C)
PTC (1000Ω @ 25°C)
Temperature Scale:
NTC: -50°C...+100°C
PTC: -50°C...+150°C
Accuracy: ±1% (full scale)
Outputs
Outputs
Relay Output:
Compressor: (8)A @ 250 Vac
Defrost: A @ 250 Vac
Fan: A @ 250 Vac
Control Type: ON/OFF
Reading Frequency: times per second
Communication: RS-485, PROKEY
Certificates: CE, EAC
Temperature Control Device Usage Areas:
Temperature Control Device Usage Areas:
Cold room and shock freezers
Industrial refrigerators
Heating and ventilation systems
Food processing and preservation systems
Automation systems
Laboratory equipment
Compressor, defrost and fan scenarios
EMKO ESM-3712CN , advanced With its functions, durable structure and flexible mounting options, it offers a reliable solution in every area where temperature control is required.
EMKO ESM-3712CN , advanced With its functions, durable structure and flexible mounting options, it offers a reliable solution in every area where temperature control is required.
