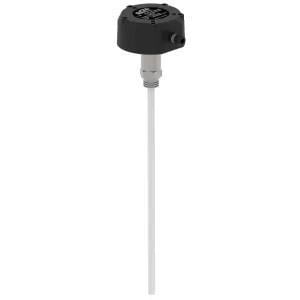

Ensim ECASm-101 Capacitive Level Switch 10cm
The Capacitive Level Switch, offered by ORFA Industrial Products Industry and Trade Inc., is a high-performance Capacitive Level Switch designed to precisely control the levels of a wide range of materials, including conductive and non-conductive liquids, solid particles, and powders. Designed specifically to ensure reliable results even in challenging environmental conditions, this level switch delivers stable performance even at high temperatures and pressures.
The Capacitive Level Switch detects the change in capacitance when material comes into contact with it and generates an output signal. When this change in capacitance exceeds the predetermined setting limit, the system activates and performs the necessary action in the process. Thanks to its user-friendly design, the trigger point and relay operating range can be easily calibrated according to operating conditions. It offers both horizontal and vertical mounting options, allowing for flexible use.
Capacitive Level Switch Product Features
High Durability: Structure resistant to high temperature and pressure conditions. Cooled models offer solutions for more challenging environments.
Easy Installation and Calibration: Quick installation and easy sensitivity adjustment by the user.
Reliable Performance: Unaffected by foam, liquid splashes and probe coatings, it provides consistently stable results.
Flexible Application Area: It can be easily integrated into different tank and silo types with horizontal and vertical installation options.
Capacitive Level Switch Technical Specifications
Materials that can be measured: Conductive liquids, low-conductivity liquids, solid particulate and sticky materials, acid/basic liquids
Supply Voltage: 24 VDC
Output: 1 NO / NC (5 A / 250 VAC) Relay
Min. Dielectric Constant: 1.6
Connection Material: 304 stainless steel (optional 316 stainless steel)
Insulation Material: PFA (optional PTFE, Delrin, Peek, Ceramic)
Working Pressure: Max. 150 bar
Operating Temperature: Max. 150 °C (230 °C with PEEK insulation, 200 °C with cooling apparatus)
Ambient Temperature: -20 °C to 60 °C
Protection Class: IP 65
Electrical Connection: Terminal connection
Test Standards: EMC, Low voltage testing
Weight: Maximum 40 Nm
Capacitive Level Switch Usage Areas
Liquid Tanks: Glycol tanks, wastewater tanks, clean water tanks, oil tanks, CO₂ liquid tanks
Food and Beverage Industry: Milk powder, flour, wine warehouses
Chemical Processes: Acid and basic liquids, sticky chemicals
Solid Material Storage: Grain silos, cement silos, plastic granule tanks, sand, feed and dough storage tanks
The ECASm series capacitive level switch maximizes efficiency by offering high precision, reliability, and long-lasting use in industrial processes. With its robust construction resistant to harsh conditions, the ECASm offers the most accurate solution for level control.
