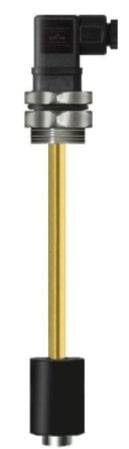

Ensim ELSp Şamandıralı Seviye Şalteri Pirinç L:1000mm
%28 Discounted Product
0 - Comment / Read Comments
164,93 USD
118,75 USD
Category
Brand
Stock Code
1511171005000210150000106
Warranty Period
24 Month
Price
137,44 USD + VAT
* Installments starting from 118,75 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
Ensim ELSp Float Level Switch Pirinç L:1000mm
ORFA Float Level Switch ELSp Series, offered by Endüstri Mamüller Sanayi ve Ticaret A.Ş. , is a high-performance solution for level control and monitoring of liquids. These sensors, which appeal to a wide range of applications with different housing connection and material options, are especially ideal for industrial users looking for a reliable and long-lasting level monitoring solution. With its superior design and versatile usage advantages, it offers the opportunity to precisely control tank and warehouse levels.
Float Level Switch Features:
Float Level Switch Features:
Versatile Material Options: A variety of materials suitable for different fluids provides special solutions according to the needs of users.
Various Contact Options: It can be customized with different contact types according to need, which provides flexible use.
Application Diversity: It is suitable for versatile usage areas and can be widely used in many sectors.
Float Level Switch Technical Information:
Float Level Switch Technical Information:
Float Material: PU (Standard)
Connection Material: Aluminum (Standard)
Pipe Material: Pirinç (Standard)
Float Type: P3 (Standard)
Float Diameter: mm
Operating Temperature: Maximum 80°C
Maximum Working Pressure: bar
Density Capacity: .75 g/cm³
Mechanical Connection: R 1” + Nut (Standard)
Electrical Connection: Socket structure
Number of Floats: piece (Standard)
Immersion Length: 0 mm
Number of Contacts: x SPST – NA (Standard)
Contact Current: .5 Ampere (Standard)
Maximum Contact Power: W / VA
Maximum Supply Voltage: VDC / 250 VAC (Standard)
Float Level Switch Operating Principle:
Float Level Switch Operating Principle:
Float Level Switch (ELSp Series) has an operating mechanism based on magnetic principle to monitor the liquid level. Moving along the tube, the float moves up and down according to changes in the liquid level. When the magnet inside the float reaches the reed sensor, it creates a magnetic field and opens or closes the sensor circuit. These signals transmit alarm or level information to the control system. Having the relay outputs inside the enclosure provides safe control.
Float Level Switch Usage Areas:
Tank Level Control: It is a perfect solution for precise monitoring of the liquid level in tanks and warehouses.
Boiler Control: Provides water level control in industrial boilers.
Yacht and Waste Water Systems: Used in clean water level control and waste water monitoring systems on yachts.
Hydraulic Oil Tanks: Suitable for monitoring and controlling the oil level in hydraulic systems.
Float Level Switch ELSp Series offers superior efficiency in various industrial and commercial applications with its reliable performance and flexible design. It stands out as a precise and durable solution in every field where fluids need to be accurately monitored and controlled.
Float Level Switch ELSp Series offers superior efficiency in various industrial and commercial applications with its reliable performance and flexible design. It stands out as a precise and durable solution in every field where fluids need to be accurately monitored and controlled.
