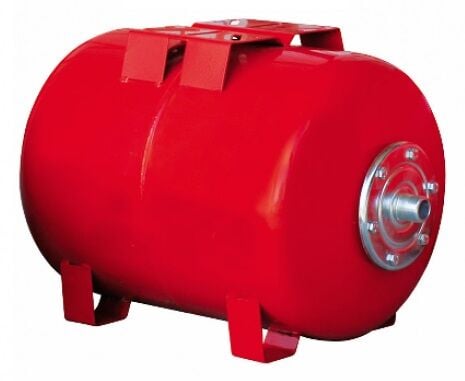

Expansion Tank Horizontal Type 24 Liter Pn10
0 - Comment / Read Comments
Category
Brand
Stock Code
0612242000000000000021004
Warranty Period
24 Month
Expansion Tank Horizontal Type
Proper pressure is essential for the proper operation of heating, solar, cooling water systems, and pressurized booster systems. Expansion tanks maintain a constant water balance in these systems, eliminate volume fluctuations under controlled pressure, and ensure gas separation. ORFA Industrial Products Industry and Trade Inc. meets this need by selling horizontal expansion tanks. Horizontal expansion tanks are a simple and effective solution for balancing system pressure fluctuations. ORFA offers high-quality expansion tanks to its customers.
CE Label and Declaration of Conformity
CE labeling is part of the European Union's harmonization of legislation. It ensures that products sold within the European Economic Area (EEA) meet high safety, health, and environmental protection requirements. ORFA Industrial Products Industry and Trade Inc. declares that the products it sells meet the legal requirements of the CE label and can be sold throughout the EEA without restriction.
General Features of Horizontal Type Expansion Tanks
Production in accordance with 2014/68/EU Pressure Equipment Directive and TS-EN 13831 Standards: Our horizontal type expansion tanks are manufactured in accordance with these directives and standards.
Replaceable EPDM Membrane: Contains a replaceable EPDM membrane in accordance with DIN 4807-3 standards. It can be replaced with a Butyl membrane upon request.
Electrostatic Powder Coated Steel Body: Provides a durable and long-lasting structure.
Maximum Operating Temperature for Expansion Tank Membrane: Between -10 °C and 70 °C.
Expansion Tank Maximum Allowable Temperature: +110 °C.
Suitable for Water and Water-Glycol Mixtures: Can be used with a maximum glycol content of 50% (Liquid group 2 according to Directive 2014/68/EU).
Expansion Tank Manometer in Models of 100 Liters and Above: For pressure measurement and monitoring.
Expansion Tank Basic Structure and Working Principle
Horizontal expansion tanks are divided into two main compartments: a water chamber and a gas chamber. A flexible membrane separates these two compartments. The membrane prevents water from entering the gas chamber and ensures proper system operation.
Water Room:
The water chamber is the compartment that connects the expansion tank to the system. This chamber is where the volume of the water in the system changes. When heated, water expands, and this expanded water enters the expansion tank's water chamber. When cooled, the water volume decreases, and the water in the chamber returns to the system.
Gas chamber:
The gas chamber is typically filled with air or another gas, and the correct pressure is set via a filling valve. The gas in this chamber resists changes in water volume through the membrane. The gas pressure is critical for balancing changes in the system's water volume.
Pressure Balancing Mechanism
The operating principle of the expansion tank is based on the physical properties of water and gas. When the system heats, the water expands and enters the water chamber. This forces the membrane against the gas chamber, compressing the gas. The compression of the gas creates a backpressure to balance the pressure increase in the system. This backpressure ensures safe system operation and prevents overpressure.
During cooling, the water volume decreases, and the water in the water chamber returns to the system. As this occurs, the pressure in the gas chamber decreases, pushing the membrane toward the water chamber, thus allowing the water to return to the system. This mechanism effectively balances pressure changes, contributing to stable system operation.
Expansion Tank Maintenance and Control
Horizontal expansion tanks require regular maintenance and inspection to ensure proper operation. The pressure in the tank's gas chamber should be checked regularly and adjusted as necessary. Additionally, the condition of the expansion tank and its membrane should be checked periodically for wear or damage.
Gas Pressure Control: The tank's pre-pressure should be adjusted according to the system's specifications and checked regularly. Insufficient air pressure reduces tank function and shortens the membrane's life.
Membrane Inspection: The membrane is one of the most critical components of a tank. When worn or damaged, the tank's performance deteriorates. Therefore, the condition of the membrane should be checked regularly and replaced if necessary.
Uses and Benefits of Horizontal Type Expansion Tanks
In Heating and Heating Systems: The expansion tank's function in a heating system is to absorb the excess pressure created in the system by the increased volume of heating water heated by the combi boiler or boiler, through its internal membrane. This means that the flexible membrane inside the tank inflates like a balloon when necessary, absorbing the excess pressure and reducing it to normal levels. Similarly, when the heating water cools, it represses the water inside, preventing the system from running dry.
In Hydrophore Installations: Horizontal expansion tanks used in hydrophore installations store pressurized water and direct it to taps when needed. This prevents frequent activation of hydrophore pumps, reduces electricity consumption, extends equipment life, and prevents water hammer.
Expansion Tank Application Scope:
Water Supply Applications: Used as a buffer tank in booster systems, balancing pressure differences and reducing pump frequency variation.
Sanitary Hot Water Applications: When sanitary water is heated, pressure increases. The expansion tank absorbs excess pressure, preventing unnecessary opening of the safety valve.
HVAC Applications: Balances the pressure in closed heating-cooling systems when water expands and contracts.
