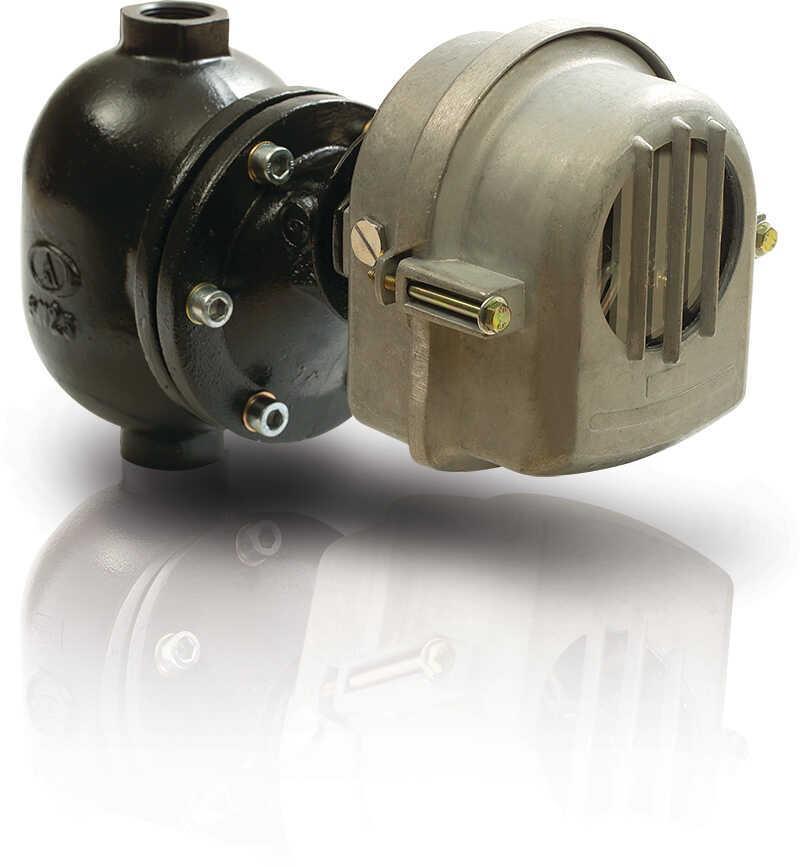

Fantini Cosmi A2 Kazan Tağdiye Cihazı 1”
%62 Discounted Product
0 - Comment / Read Comments
1.474,49 USD
560,31 USD
Category
Brand
Stock Code
704100000100
Price
1.228,74 USD + VAT
* Installments starting from 105,86 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
Fantini Cosmi A2 Boiler Feeding Device 1”
The Fantini Cosmi Boiler Feeding Device, sold by ORFA Industrial Products Industry and Trade Inc. , is a high-performance, fully automatic device that provides reliable and precise liquid level control in industrial applications. This device is used primarily in pressure systems up to 16 atmospheres, such as steam boilers and hydrophores. Classified as A1 and A2 Type Boiler Feeding Devices, these products are designed to monitor and adjust liquid levels in open and closed vessels.
The Fantini Cosmi Boiler Feeding Device consists of two three-function contact tubes and controls the liquid level by providing three different on-off states. The liquid level is measured by a stainless steel float resistant to 25 atmospheres. The float's movement is transmitted via a stainless steel shaft to mercury commutators located outside the pressurized section. This system offers high pressure resistance and ensures reliable performance.
Boiler Feeding Device Product Features:
Body: GGG40.3 Ductile Iron
Float: AISI 316 Stainless Steel
Shaft: AISI 316 Stainless Steel
Bellows: AISI 316 L Stainless Steel
Gasket: Klingerite
Connection : 1” BSPT Threaded (A-2)
Pressure Class: PN 16
Maximum Operating Temperature: 200 ºC
Boiler Feeding Device Technical Information:
Boiler Feeding Device Technical Information:
The Fantini Cosmi Boiler Feeding Device utilizes a stainless steel float and shaft resistant to 25 atmospheres. The movement of these components is supported by stainless steel bellows elements, ensuring leak-tightness. The float housing and cover are made of GGG 40.3 ductile iron, while the contact and control sections are insulated with pressure-cast aluminum shields.
The Boiler Feeder allows for easy monitoring of the system's liquid level, thanks to its manual control and inspection window in the switch housing. Magnetic field-free control magnets prevent the accumulation of ferromagnetic particles, minimizing operational malfunctions. Furthermore, flexible communication cables insulated with silicone rubber provide a safe and comfortable working environment.
Fantini Cosmi Boiler Feeding Device Working Principle
The Fantini Cosmi Boiler Leveling Device is a high-tech device used to control the liquid level in industrial steam boilers and hydrophore systems. This device provides automatic liquid level control, supporting safe and efficient system operation. Here are the details of this device's operating principle:
The Fantini Cosmi Boiler Leveling Device is a high-tech device used to control the liquid level in industrial steam boilers and hydrophore systems. This device provides automatic liquid level control, supporting safe and efficient system operation. Here are the details of this device's operating principle:
1. Float Mechanism
The key component of the Boiler Feeding Device is the float, made of AISI 316 stainless steel. The float is in direct contact with the liquid level within the boiler or hydrophore and rises and falls in response to changes in liquid level. The float's movement is used to send a signal to the device's control mechanism.
2. Shaft and Bellows System
The float's movement is transmitted via a shaft, also made of stainless steel. This shaft establishes a physical connection between the float and the control panel. When the float moves, the shaft transmits this movement to the control panel. During this transfer, a bellows element made of AISI 316L stainless steel prevents pressure within the system from leaking out, ensuring a tight seal.
3. Contact Tubes and Control Mechanism
The float's movement is transmitted to the electrical circuit via mercury-filled contact tubes that control the electric current. These contact tubes automatically control the boiler's feed pump by opening and closing based on the float's position. This maintains the liquid level within the specified optimum levels.
4. Observation Window and Manual Control
The Boiler Feeder's inspection window allows users to monitor the float position within the system and perform manual intervention if necessary. Additionally, switches located under the device's cast aluminum protective cover allow users to manually control the system.
5. Security Precautions
The Boiler Adjustment Device is equipped with a safety device to prevent any incorrect settings. Furthermore, the switch is mounted securely to prevent any vibration, ensuring safe system operation at all times.
Areas of Use
The Fantini Cosmi Boiler Leveling Device is ideal for controlling and adjusting liquid levels in high-pressure systems, particularly steam boilers and hydrophores. Thanks to its wide range of adjustment options, these devices can be easily used in a variety of systems. The A1 model provides level control from 15 to 75 mm, while the A2 model provides level control from 15 to 30 mm. The mercury contact tubes are also adjustable and can operate on 380 V, 3 A, 1.1 kW alternating current or 220 V, 1.A, 220 VA direct current.
Application Areas
Steam Boilers: Controlling the liquid level in steam boilers is one of the device's primary uses. Accurate liquid level adjustment is crucial for safe and efficient operation.
Hydrophores: Accurate water level control is essential in hydrophore systems. The Fantini Cosmi Boiler Feeding Device is a reliable solution for such systems.
The Fantini Cosmi Boiler Leveling Device provides precise and reliable liquid level control in industrial systems. Its stainless steel construction, high-pressure resistance, and wide adjustment range make it an ideal choice for applications such as steam boilers and hydrophores. Sold by ORFA Industrial Products Industry and Trade Inc. , this device is the perfect solution for users seeking high performance and reliability.
