Float Level Switch ELSp L:750mm
%28 Discounted Product
0 - Comment / Read Comments
136,80 EUR
98,50 EUR
Category
Brand
Stock Code
1511171005000210300000106
Warranty Period
24 Month
Price
114,00 EUR + VAT
* Installments starting from 98,50 EUR!
Add to Cart

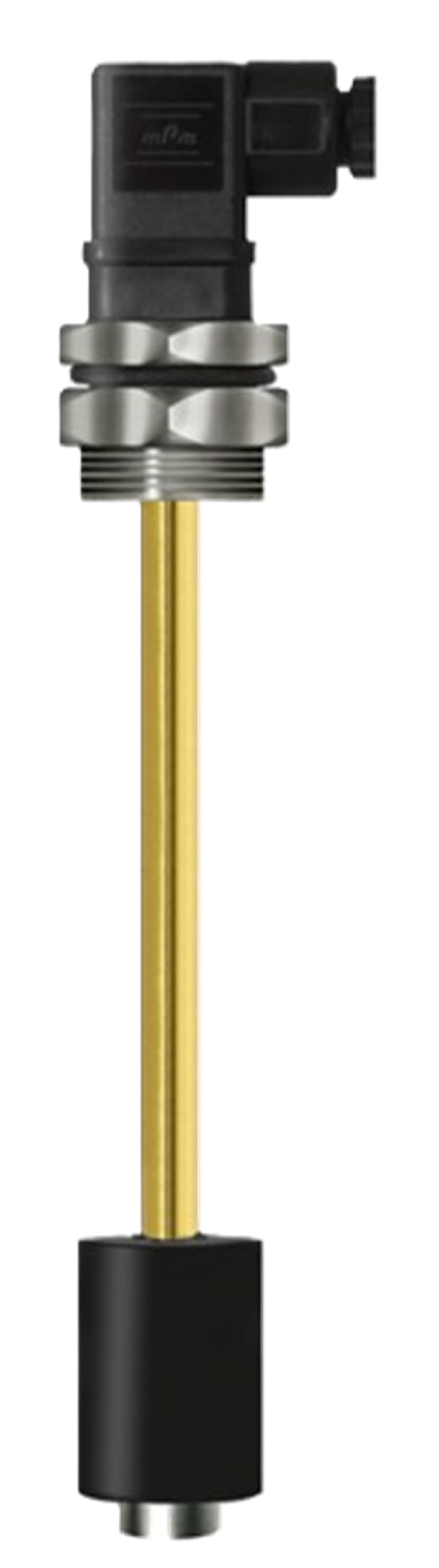

Float Level Switch (ELSp Series)
The Float Level Switch (ELSp Series), offered by ORFA Industrial Products Industry and Trade Inc. , is a high-performance solution for level control and monitoring of liquids. These sensors, available in a wide range of housing connection and material options, are ideal for industrial users seeking a reliable and durable level monitoring solution. Their superior design and versatile application advantages allow for precise control of tank and reservoir levels.
Product Features:
Product Features:
Versatile Material Options: A variety of materials suitable for different fluids offers special solutions according to user needs.
Various Contact Options: Can be customized with different contact types according to need, providing flexible use.
Application Variety: It is suitable for versatile usage areas and can be widely used in many sectors.
Technical Information:
Technical Information:
Float Material: PU (Standard)
Connection Material: Aluminum (Standard)
Pipe Material: Brass (Standard)
Float Type: P3 (Standard)
Float Diameter: 30 mm
Operating Temperature: Maximum 80°C
Maximum Working Pressure: 1 bar
Density Capacity: 0.75 gr/cm³
Mechanical Connection: R 1” + Nut (Standard)
Electrical Connection: Plug-in structure
Number of Floats: 1 (Standard)
Immersion Length: Maximum 750 mm (Including Outer)
Number of Contacts: 1 x SPST – NA (Standard)
Contact Current: 1.5 Amps (Standard)
Maximum Contact Power: 50 W / VA
Maximum Supply Voltage: 200 VDC / 250 VAC (Standard)
Working Principle:
Working Principle:
The Float Level Switch (ELSp Series) uses a magnetic principle to monitor liquid level. The float, which moves along the tube, moves up and down in response to changes in liquid level. When the magnet within the float reaches the reed sensor, it generates a magnetic field, opening or closing the sensor circuit. These signals transmit alarm or level information to the control system. The enclosure of the relay outputs ensures reliable control.
Areas of Use:
Tank Level Control: It is the perfect solution for precise monitoring of liquid levels in tanks and reservoirs.
Boiler Control: Provides water level control in industrial boilers.
Yacht and Waste Water Systems: Used in clean water level control and waste water monitoring systems on yachts.
Hydraulic Oil Tanks: Suitable for monitoring and controlling oil level in hydraulic systems.
The Float Level Switch (ELSp Series) delivers superior efficiency in a variety of industrial and commercial applications with its reliable performance and flexible design. It stands out as a precise and durable solution for any application requiring accurate fluid monitoring and control.
The Float Level Switch (ELSp Series) delivers superior efficiency in a variety of industrial and commercial applications with its reliable performance and flexible design. It stands out as a precise and durable solution for any application requiring accurate fluid monitoring and control.
