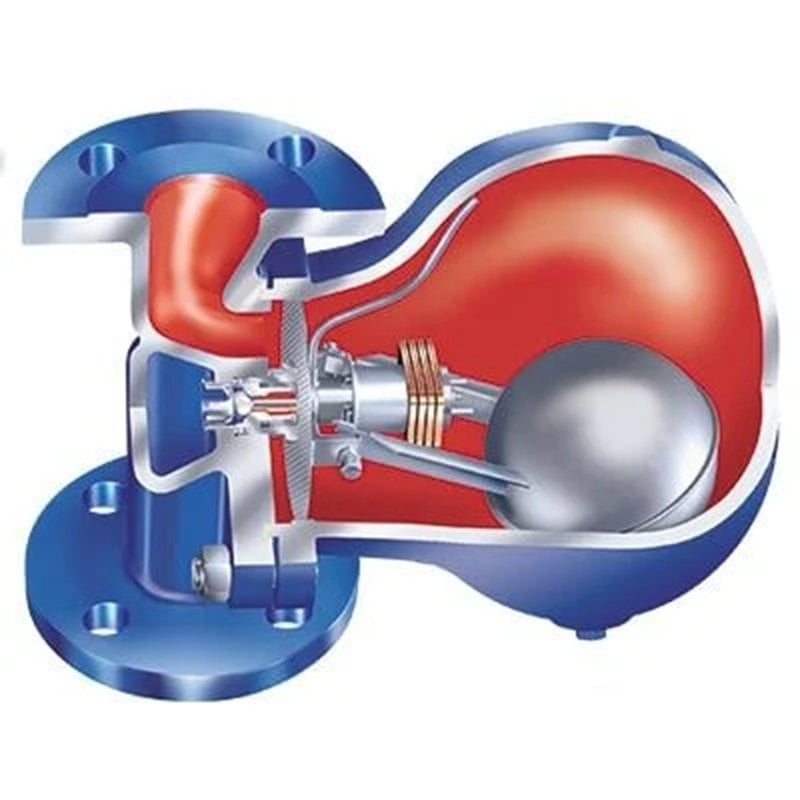

Float Steam Trap (Steam Trap) DN25 PN25 /25.635-1
0 - Comment / Read Comments
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
ARI-CONA-SC Float Steam Trap (Steam Trap)
The ARI-CONA-SC float steam trap offers a reliable and efficient condensate removal solution in steam systems. Sold by ORFA Industrial Products Industry and Trade Inc. , this product increases system efficiency by providing uninterrupted condensate removal, particularly in areas where saturated steam is present. With its outstanding features and durable construction, this steam trap is preferred in many industrial applications. Its user-friendly design allows for easy installation and use.
Product Features:
The ARI-CONA-SC float steam trap features a design that allows for uninterrupted, backpressure-free condensate discharge, even at varying volumes and high pressures. The automatic air release mechanism integrated with the controller effectively removes air and gases from the system. This steam trap, resistant to water hammer, functions as a check valve thanks to its integrated backflow protection. It also offers connection and bypass options for the recovery line.
The central orifice design allows the steam trap to be used in either a vertical or horizontal position. Simply separate the cover and body, rotate the body 90°, and re-bolt. The controller can be replaced without any piping modifications.
Technical Information:
Body and Cover: EN-JS1049 Ductile Iron
Internal Parts/Capsules: 1.4301 (AISI 304) Stainless Steel/Hastelloy
Connection: Flanged
Pressure Class: PN40
Controller: R5, R10, R14
Max. Operating Temperature: 350 °C (9.6 barg)
Air and Gas Evacuation Mechanism: Thermostatic Capsule
Mounting Position - Standard: Vertical, Optional: Horizontal
Working Principle:
Condensate Inlet and Discharge: The basic operating principle of the ARI-CONA-SC steam trap is the continuous and uninterrupted discharge of condensate at the points where steam condenses. This steam trap instantly discharges the condensate formed by the condensation of steam, preventing unwanted water accumulation in steam systems.
Float Mechanism: The float inside the steam trap rises when the condensate level increases, opening the drain valve. When the condensate level drops, the float lowers, closing the drain valve. This mechanism ensures the continuous drainage of condensate from the system.
Thermostatic Capsule: The ARI-CONA-SC steam trap is equipped with a thermostatic capsule mechanism. This mechanism automatically evacuates air and gases from the system. The thermostatic capsule contains an element sensitive to temperature changes, which allows air and gases to be evacuated. This prevents air pockets and gas accumulation in the system.
Backflow Protection: The steam trap's integrated backflow protection mechanism functions as a check valve. This mechanism prevents reverse flow in the system and contributes to the safe and efficient operation of the steam trap.
Flow Diverter and Orifice Design: The orifice design, located centrally within the steam trap, allows for condensate discharge in both vertical and horizontal positions. This design facilitates installation and allows the steam trap to be used without any piping modifications.
Water Hammer Resistance: The ARI-CONA-SC steam trap is resistant to water hammer and is insensitive to such impacts. This feature protects against sudden pressure changes in steam systems and ensures the longevity of the steam trap.
Application Areas and Advantages:
The ARI-CONA-SC float steam trap is used in a variety of industrial applications. It provides effective condensate removal in areas such as heat exchangers, heating batteries, tanks, drying cylinders and ovens.
The advantages of this steam trap are:
Uninterrupted Condensate Discharge: Increases system efficiency by providing continuous and reliable condensate discharge.
Automatic Air Vent: Automatically evacuates air and gases in the system with the thermostatic capsule mechanism.
Backflow Protection: Integrated check valve function prevents reverse flow and ensures safe operation.
Easy Installation: Thanks to its orifice design, it can be easily installed in vertical or horizontal position.
Durability: It offers long-lasting use with its water impact resistant structure.
The ARI-CONA-SC float steam trap offers a reliable and effective condensate removal solution for steam systems. At ORFA Industrial Products Industry and Trade Inc. , we are proud to offer this high-performance steam trap to our customers. Please contact us for more information and to place an order.
