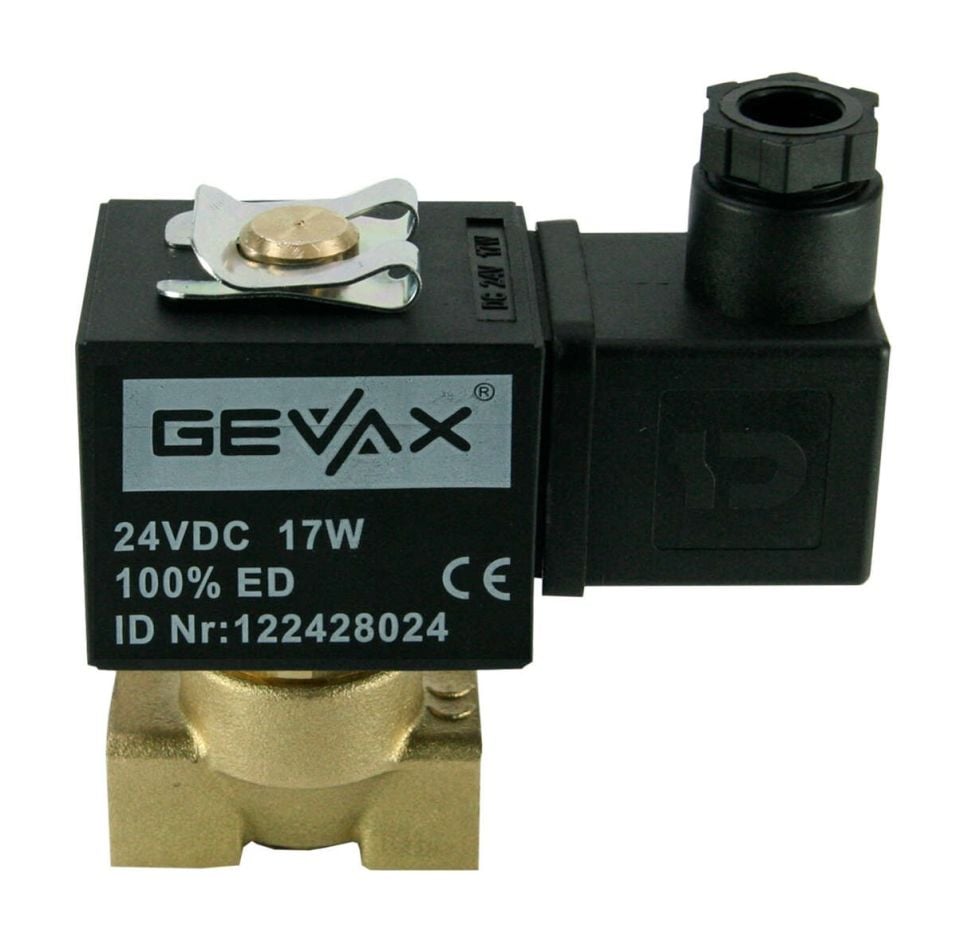

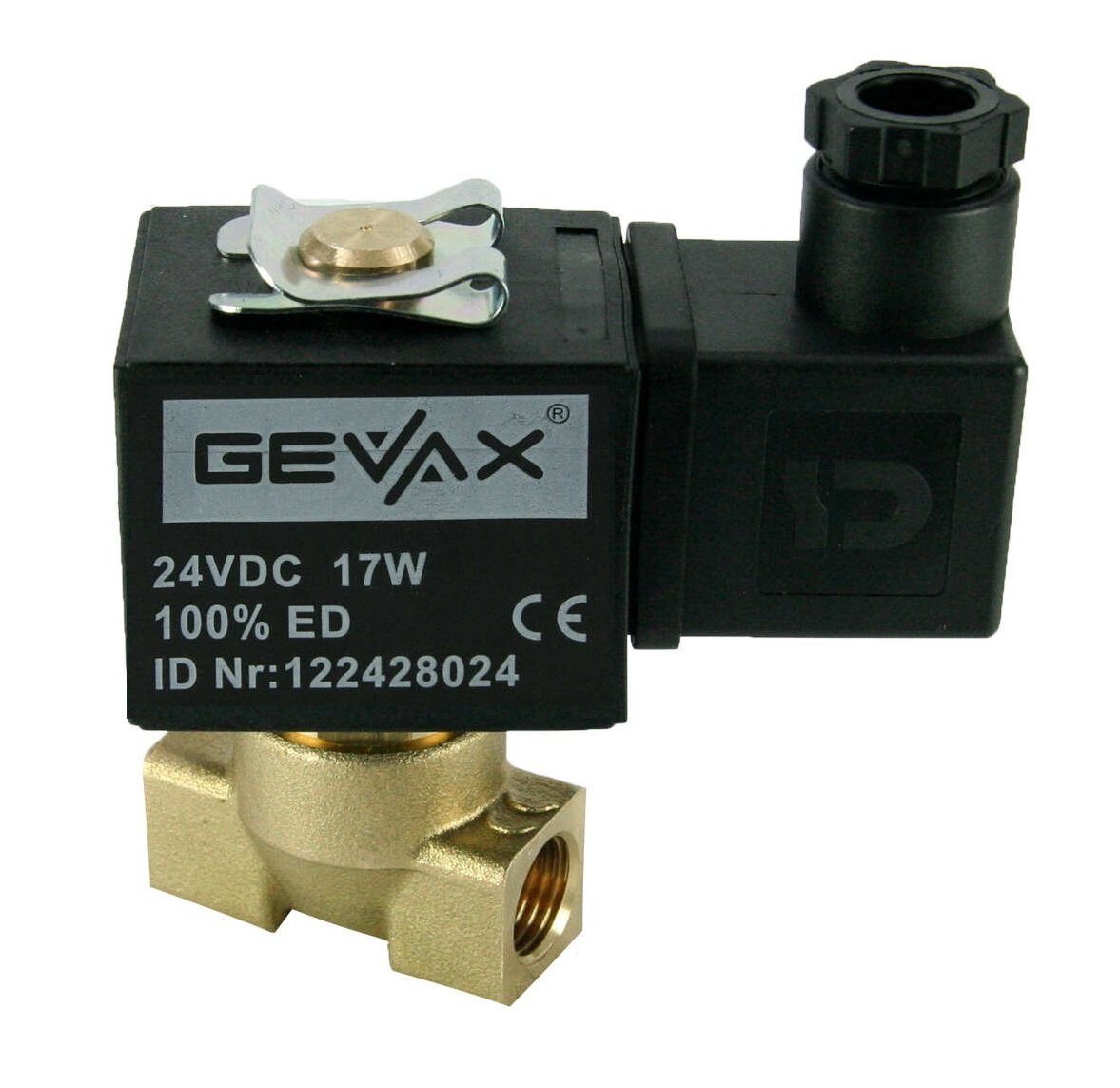

GEVAX 1901-KDNB016-020-G24DC Solenoid Valf 1/4'' (0-16 Bar)

GEVAX 1901-KDNB016-020-G24DC Solenoid Valf 1/4'' (0-16 Bar)

GEVAX 1901-KDNB016-020-G24DC Solenoid Valf 1/4'' (0-16 Bar)

GEVAX 1901-KDNB016-020-G24DC Solenoid Valve 1/4'' (0-16 Bar)

Precise Flow Control with ORFA Industrial Assurance

An indispensable element for fluid control in your industrial piping systems, this solenoid valve, manufactured with the quality of the GEVAX brand, offers a 1/4'' connection model that delivers superior performance over a pressure range of 0-16 bar. Thanks to its direct-acting principle, this valve can open even at 0 bar minimum pressure; its normally closed position automatically stops flow in the event of power failure. With NBR seal and diaphragm, the brass-bodied model ensures leak-tightness over a wide temperature range and operates with a 24V DC coil. Its compact design allows easy installation in tight spaces, making this solenoid valve suitable for a wide range of applications from laboratory equipment to automation systems. With an orifice diameter of 2 mm, this solenoid valve is ideal for low flow rate applications. IP65 protection rating provides resistance to dust and water splashes. Coil power is 17 W. Weight is only 0.375 kg. Installation is straightforward. Choose GEVAX solenoid valve for a reliable solution in flow control.

Solenoid Valve Detailed Technical Specifications

Model: GEVAX 1901-KDNB016-020-G24DC Solenoid Valve

Connection Size: 1/4''

Way / Position: 2/2 Normally Closed (N.C.)

Operating Principle: Direct Acting

Seal & Diaphragm: NBR

Min. / Max. Pressure: 0 / 16 Bar

Orifice Size: 2 mm

Temperature Range: -10°C ~ +80°C

Coil Voltage / Power: 24V DC / 17 W

Body Material: Brass

Kv Value: 1.7 l/min

Weight: 0.375 kg

Key Advantages of the Solenoid Valve

Low Pressure Operation: The solenoid valve can open even at 0 bar inlet pressure.
Compact Design: The solenoid valve allows easy installation in tight spaces.
Energy Efficiency: The solenoid valve with 24V DC coil ensures low power consumption.
Long Service Life: The solenoid valve with brass body and NBR seal is durable and resistant.

Application Areas of the Solenoid Valve

Use of solenoid valve in laboratory and analytical equipment.
Preference for solenoid valve in small-scale automation systems.
Control of compressed air lines with solenoid valve.
Solenoid valve solution for process control and water lines.

Discover reliable and precise performance in your flow control with GEVAX solenoid valve solutions.
