GEVAX 1901-KBNI010-500-G220AC Solenoid Valf 2''
%28 Discounted Product
0 - Comment / Read Comments
204,88 USD
147,51 USD
Category
Brand
Stock Code
1901-KBNI010-500-G220AC
Warranty Period
24 Month
Price
170,73 USD + VAT
* Installments starting from 147,51 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.

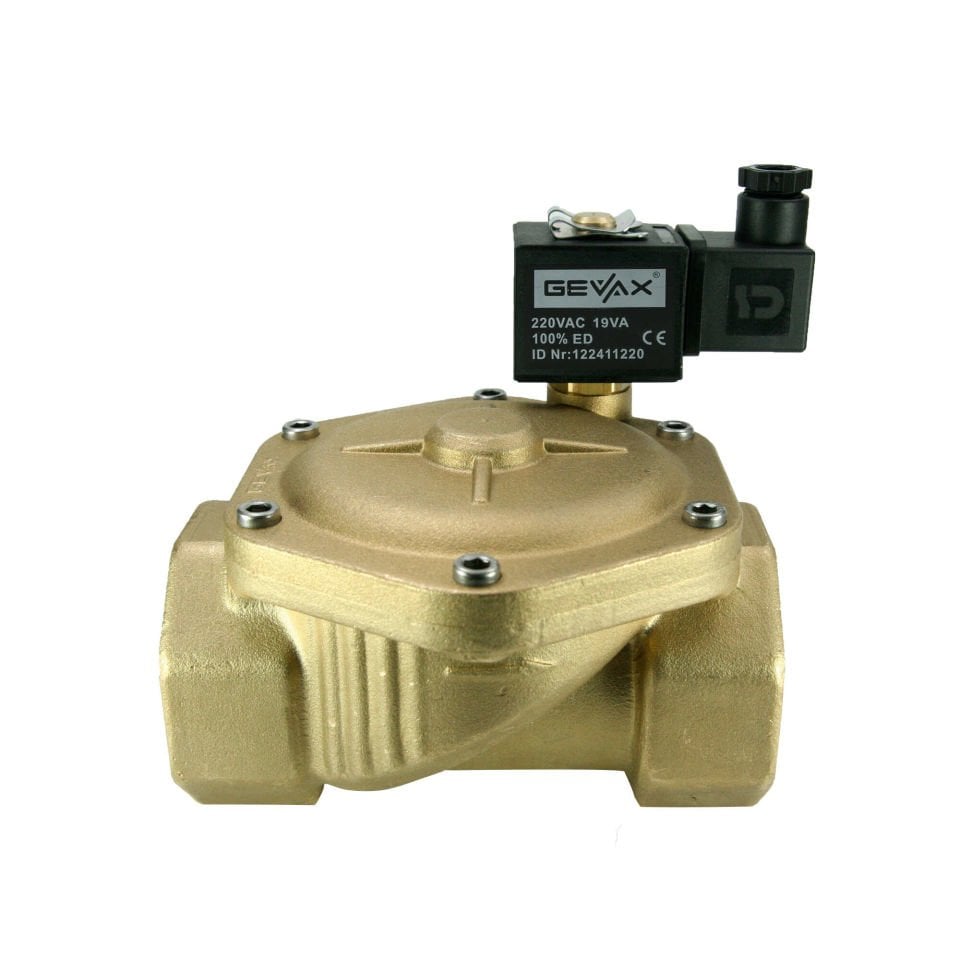

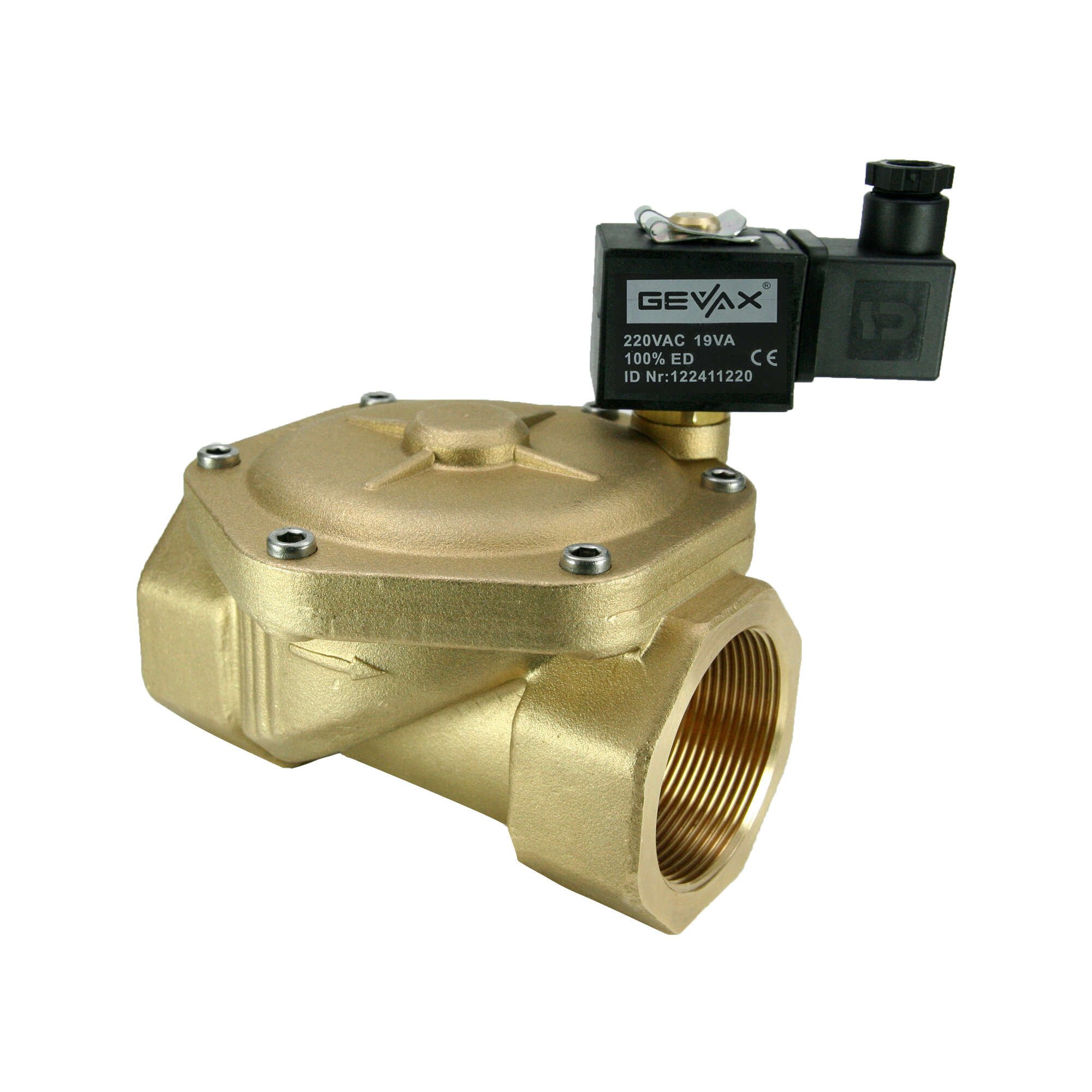

GEVAX N.K. Solenoid Valve NBR 2'' (0.5-10 Bar) 1901-KBNI010-500-G220AC
GEVAX N.K. Solenoid Valve (1901-KBNI010-500-G220AC) is an industrial valve that provides high performance and reliability in fluid control. It offers long-lasting use thanks to its 2'' connection size, Brass body and NBR diaphragm. It operates safely with its normally closed (N.C.) structure and provides effective control even at low differential pressures with its pilot-controlled design. It operates with 220V AC TP4 coil and has a power rating of 19 VA. This valve, which can be used in the pressure range of 0.5 – 10 bar, is ideal for controlling high flow fluids thanks to its 575 l/min KV value.Valve Type:
General Purpose Solenoid Valve Connection Size:
" Position:
Normally Closed (N.C.) Operating Principle:
Pilot Controlled Seal & Diaphragm:
NBR Min. Pressure:
.5 bar Max. Pressure:
bar Orifice Diameter:
bar Orifice Diameter:
mm Temperature Range:
-10°C … +80°C Coil Brand:
GEVAX Coil Type:
TP Coil Voltage:
V AC Coil Power:
VA KV Value:
l/min Body Material:
Brass Body Code:
AX Product Weight:
.745 kg Areas of Use
Water and fluid control systems Industrial process lines
HVAC installations
HVAC installations
Agricultural irrigation systems
Compressed air and liquid circuits
GEVAX N.K. Solenoid Valve 2''
is an excellent choice for industrial facilities with its robust structure, high flow capacity and safe operating principle. It provides reliable performance even in harsh conditions with its long-lasting NBR diaphragm and Brass body.
Basınçlı hava ve sıvı devreleri
GEVAX N.K. Solenoid Valf 2’’ , sağlam yapısı, yüksek debi kapasitesi ve güvenli çalışma prensibi ile endüstriyel tesisler için mükemmel bir seçimdir. Uzun ömürlü NBR diyaframı ve Brass gövdesiyle zorlu koşullarda dahi güvenilir performans sağlar.
GEVAX N.K. Solenoid Valf 2’’ , sağlam yapısı, yüksek debi kapasitesi ve güvenli çalışma prensibi ile endüstriyel tesisler için mükemmel bir seçimdir. Uzun ömürlü NBR diyaframı ve Brass gövdesiyle zorlu koşullarda dahi güvenilir performans sağlar.
| Voltage | : | 220 Volt Ac |
| Body | : | Brass |
| Pressure Class | : | PN 10 |
| Tooth Measurement | : | 2'' |
