GEVAX 1901-KDNB016-020-G24DC Solenoid Valve 1/4'' (0-16 Bar)
%28 Discounted Product
0 - Comment / Read Comments
26,40 EUR
19,01 EUR
Category
Brand
Stock Code
1901-KDNB016-020-G24DC
Warranty Period
24 Month
Price
22,00 EUR + VAT
* Installments starting from 19,01 EUR!
Add to Cart

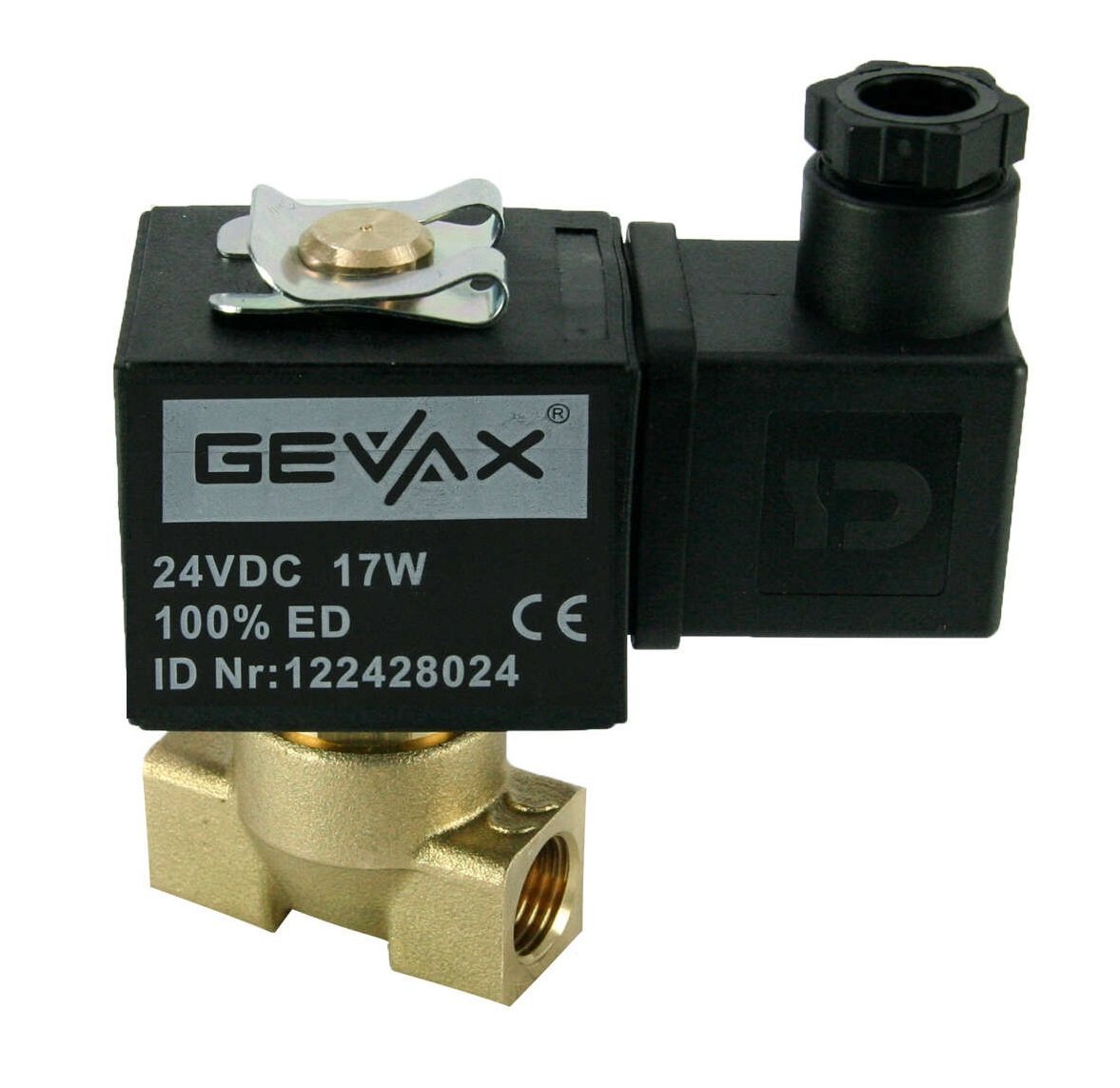

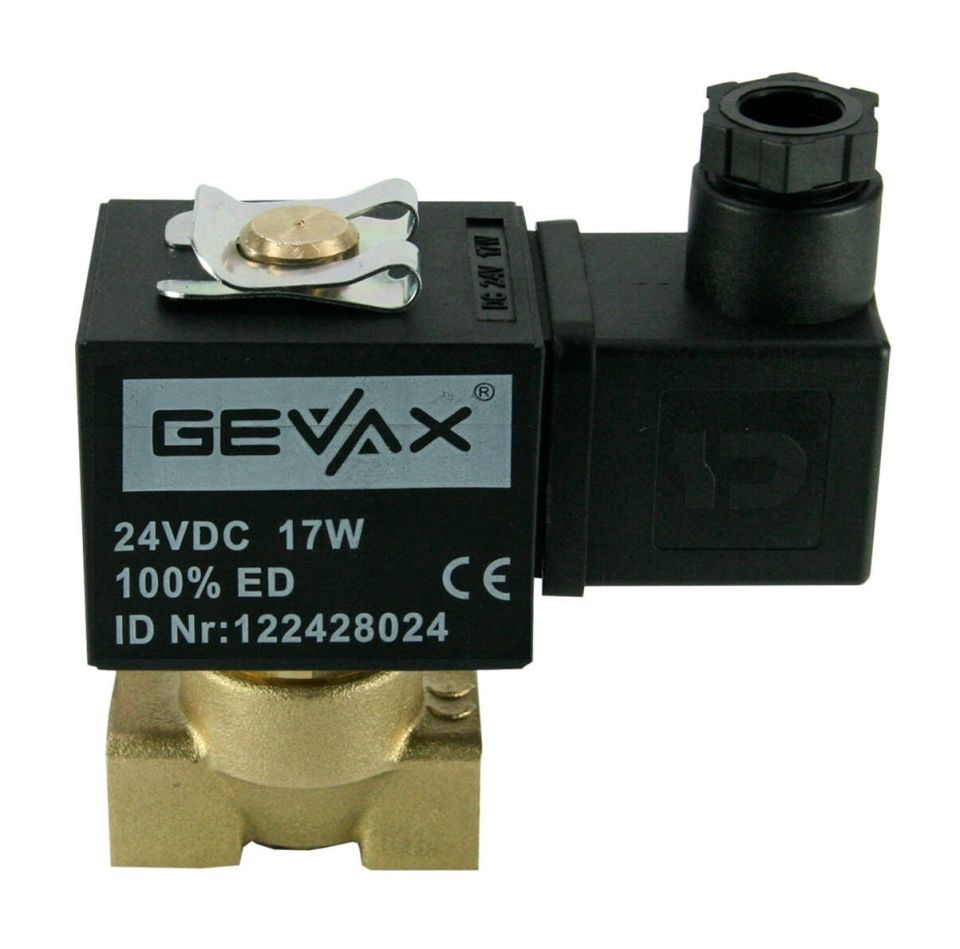

GEVAX N.K Direct Pull Solenoid Valve NBR 1/4'' (0-16 Bar) 1901-KDNB016-020-G24DC Sensitive and Reliable Flow Even at Low Pressures Control
GEVAX 1901-KDNB016-020-G24DC Solenoid Valve has been developed to provide safe and precise flow control even in low pressure systems. 1/4'' connection size offers the ideal solution for lines requiring compact and precise control. Normally closed (N.C) operating position provides maximum safety by automatically stopping the flow when the power is cut off. The direct-pull operating principle allows the valve to operate even at a minimum inlet pressure of 0 bar. NBR gasket and diaphragm offer superior sealing and chemical resistance over a wide temperature range (-10°C to +80°C). The Brass body offers durability and long life, while the 24V DC coil (GEVAX branded) provides reliable and energy-efficient control.
Valve Type:
GEVAX 1901-KDNB016-020-G24DC Solenoid Valve has been developed to provide safe and precise flow control even in low pressure systems. 1/4'' connection size offers the ideal solution for lines requiring compact and precise control. Normally closed (N.C) operating position provides maximum safety by automatically stopping the flow when the power is cut off. The direct-pull operating principle allows the valve to operate even at a minimum inlet pressure of 0 bar. NBR gasket and diaphragm offer superior sealing and chemical resistance over a wide temperature range (-10°C to +80°C). The Brass body offers durability and long life, while the 24V DC coil (GEVAX branded) provides reliable and energy-efficient control.
Valve Type:
General purpose Connection Size:
/4" Number of Paths:
/ Position:
Normally Closed (N.C) Operating Principle:
Direct pull Seal & Diaphragm:
NBR Min. Pressure:
bar Max. Pressure:
bar Orifice Size:
mm Temperature Range:
-10°C ~ +80°C Coil Brand:
GEVAX Coil Voltage:
V DC Coil Power:
W Body Material:
Brass KV Value:
.7 l/min Body Code:
AC Coil Type:
TP Weight:
.375 kg Solenoid Valve Usage Areas:
Laboratory and analysis equipment
Laboratory and analysis equipment
Small-scale automation systems
Compressed air lines
Process control lines
Water and neutral fluid lines
GEVAX N.K Direct Pull Solenoid Valve 1/4'' (0-16 Bar), ORFA Industrial
offers precise control and maximum safety even at low pressure, with assurance. It provides long-lasting use with its compact design, NBR gasket and durable Brass body. güvencesiyle, düşük basınçta bile hassas kontrol ve maksimum güvenlik sunar. Kompakt tasarımı, NBR contası ve dayanıklı Brass gövdesiyle uzun ömürlü kullanım sağlar.
offers precise control and maximum safety even at low pressure, with assurance. It provides long-lasting use with its compact design, NBR gasket and durable Brass body. güvencesiyle, düşük basınçta bile hassas kontrol ve maksimum güvenlik sunar. Kompakt tasarımı, NBR contası ve dayanıklı Brass gövdesiyle uzun ömürlü kullanım sağlar.
| Tooth Measurement | : | 1/4'' |
| Body | : | Brass |
| Pressure Class | : | PN 16 |
| Voltage | : | 24 Volt Dc |
