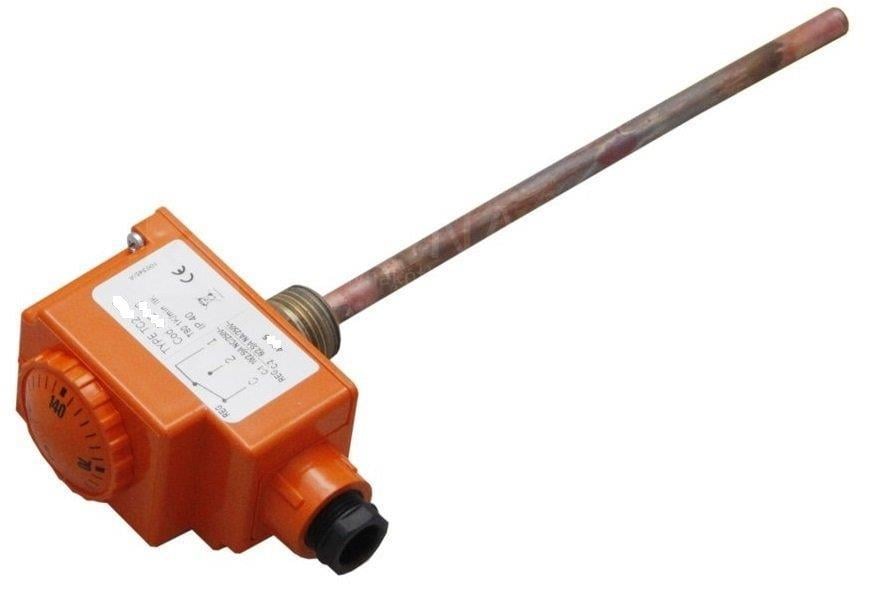

IMIT Boiler Thermostat TC2 40/210°C 542441

Precise Temperature Control and Long-lasting Reliability with ORFA Industrial Assurance

Playing an indispensable role in the automatic management of boilers, pumps, and various industrial hot water systems, the boiler thermostat precisely monitors liquid temperature, ensuring energy efficiency. Manufactured with IMIT's advanced technology, this TC2 series boiler thermostat offers maximum control over a wide operating range of 40°C to 210°C. This professional boiler thermostat with a liquid expansion sensor system instantly monitors water temperature and automatically opens/closes the circuit. With a 1/2" connection diameter and a 100 cm precision capillary tube, installation of this boiler thermostat is generally simple and fully compliant with safety and efficiency regulations. This boiler thermostat, available from ORFA Industrial, guarantees safe electrical control with a capacity of 10 amps at 250 Volts AC nominal voltage. Operating at a maximum head temperature of 80°C, this boiler thermostat maintains durability up to 225°C at the thermocouple level. A high-quality boiler thermostat you choose for your industrial installation engages electrical resistors, burners, or fans, providing energy savings. With a fast response thermal gradient of 1°K per minute, this IMIT boiler thermostat minimizes temperature fluctuations and maximizes system stability. Choosing a boiler thermostat known for build quality and long service life reduces maintenance costs and ensures uninterrupted operation. Make temperature management fully automatic with the IMIT TC2 boiler thermostat, which delivers both installation safety and energy performance.

Boiler Thermostat Technical Specification Details

Model Code: IMIT TC2 542441

Operating Range: 40°C - 210°C

Capillary Length: 100 cm (Including Tube)

Connection Diameter: 1/2" (Male Thread)

Electrical Contact Capacity: 10 A / 250 Vac - 50 Hz

Maximum Head Temperature: 80°C

Maximum Thermocouple Temperature: 225°C

Thermal Gradient: 1°K/minute

Sensor System: Liquid Expansion (Capillary)

Key Advantages of the Boiler Thermostat

Wide Temperature Range: Precise boiler thermostat from 40°C to 210°C offers flexibility in applications.
Fast Response: With a thermal gradient of 1°K/min, the boiler thermostat instantly corrects temperature fluctuations.
Safe Control: Electrical contact rated 250 V AC, 10 A reliably manages the boiler thermostat circuit.
Easy Installation: Standard 1/2" connection diameter and 100 cm capillary make boiler thermostat setup quick and practical.

Application Areas of the Boiler Thermostat

Boiler temperature control in central heating systems and boiler thermostat automation management.
Temperature regulation in industrial hot water storage tanks with boiler thermostat.
Fluid temperature control and safety system in combi units and radiator boilers using boiler thermostat.
Efficient energy management in agricultural applications and small heating panels with boiler thermostat.

Discover safe temperature management and long-lasting performance in your installation with IMIT boiler thermostat solutions.
