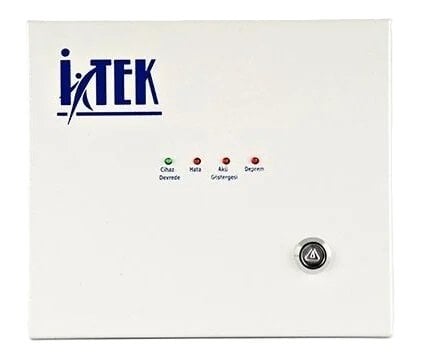

Itek Seismic Motion Detecting Gas Cutting Device TAMMY-2
0 - Comment / Read Comments
177,12 USD
Category
Brand
Stock Code
07910
Warranty Period
24 Month
Price
147,60 USD + VAT
* Installments starting from 177,12 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
Seismic Motion Detecting Gas Cutting Device
The Seismic Motion-Detecting Gas Shutoff Device, offered by ORFA Industrial Products Industry and Trade Inc., is a high-tech product designed to ensure safety in buildings by detecting earthquakes and other seismic movements. Commonly known as an elevator earthquake sensor or natural gas earthquake sensor, it precisely detects movements at acceleration values specified in TSE standards. This device, via the dry contact or voltage output on the panel, sends signals to specific systems, activating preset scenarios and preventing potential hazards.
Product Features:
Elevator Control: It ensures that elevators are lowered to the nearest floor in the event of an earthquake and ensures the safety of people in the elevator.
Gas Flow Interruption: Minimizes the risk of explosion and fire by interrupting the gas flow at the building entrance.
Electricity Cut-Off and Redirection: Provides safety in case of an earthquake by cutting or redirecting the building's electricity.
Generator Control: Can disable or redirect the generator.
Connectability to Fire Panels: By connecting to fire panels in buildings, it activates all security systems in the event of an earthquake.
Malfunction Warning System: It gives audible and visual warnings in case of malfunctions in the gas cutting devices it contacts.
Comprehensive Security: Ensures the safety of the building and its residents by controlling all security conditions during an earthquake.
Technical Specifications
Working Voltage: 100 – 260 V AC 50Hz/60Hz
Quiescent Current: 36 mA
Relay Contact Output: 16A – 250V AC
Solenoid Valve Relay Output: 2.5A – 12V DC
Battery Capacity: 12V 1.3 Ah
Battery Working Time: 36 hours
Detection Plane: Horizontal Plane XY
Widest Acceleration Range Sensitive: 0+ 1G / -1G
Frequency Sensitivity Range: TS12884
Minimum Sensitive Acceleration Threshold: 0+/-40 mg
Sensor Analog Output Sensitivity: 500 mV/G
Sensor Digital Output Resolution: 40 mg
Maximum Impact Acceleration Resistance: 50,000G
Working Temperature: 0 / +51.5 °C
Relative Humidity: 0-90%
Internal Siren: Piezoelectric Buzzer
Warning Intensity: 85 dB/1 meter
LED Indicators: Green light is on when the device is active, red light is on in case of error.
Buttons: System reset button (Reset), system test button (Test)
Enclosure: 1.2mm oven-painted sheet metal box
Weight: 4.7 kg
Dimensions: 240mm x 220mm x 80mm
Working Principle of Seismic Motion Detecting Gas Cutting Device
The Seismic Motion-Detecting Gas Shutoff Device is a high-tech security device designed to provide maximum safety in buildings during earthquakes. Its basic operating principle is to detect seismic activity and activate predetermined security scenarios.
1. Seismic Motion Detection: The device continuously monitors seismic activity in its surroundings thanks to its high-sensitivity sensors. These sensors are sensitive enough to detect even the slightest vibrations occurring in the horizontal (XY) plane. The sensors operate in accordance with the acceleration values specified in TSE standards and detect the acceleration generated during an earthquake (in the range of 0+1G / -1G).
2. Data Processing and Analysis: Detected seismic movements are instantly analyzed by the device's internal processor. The processor determines whether an earthquake is occurring by evaluating acceleration values and frequency sensitivity. The device identifies movements above the minimum sensitive acceleration threshold of 0+/-40 mg as earthquakes and takes action accordingly.

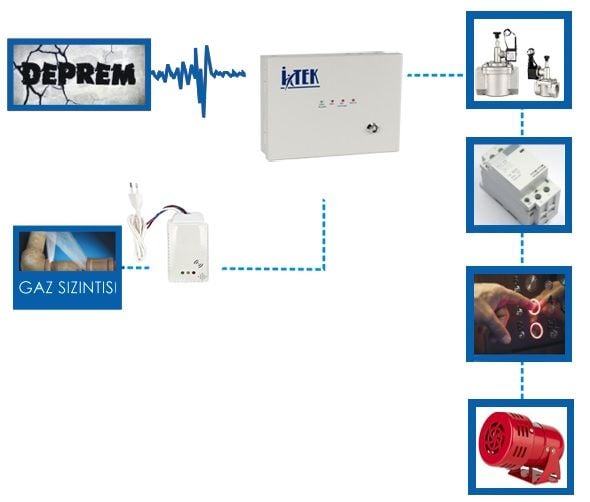

3. Activating Security Scenarios: When an earthquake is detected, the dry contact or voltage output on the device is activated, triggering predefined security scenarios. These scenarios include various actions to ensure the safety of the building and its occupants:
- Cutting off the gas flow: Prevents possible explosions and fires by closing the gas valve at the building entrance.
- Cutting or Redirecting Power: Reduces risks from electricity by cutting or safely redirecting building power.
- Elevator Control: Ensures that elevators are lowered to the nearest floor, thus ensuring the safety of people in the elevator.
- Control of Generators: Can disable or safely redirect generators.
- Integration with Fire Panels: Connects to fire panels and activates all systems that need to be turned on or off during an earthquake.
4. Fault and Warning System: The device provides audible and visual warnings in the event of a fault or line disconnection in the gas shut-off devices or other systems it contacts. The internal piezoelectric buzzer emits an 85 dB sound and provides visual warnings via LED indicators. In case of fault conditions, the red LED is constantly illuminated, while in the event of an earthquake, the earthquake LED is red.
5. Energy Management and Battery Support: The device operates between 100-260 V AC 50Hz/60Hz and, in the event of a power outage, continues to operate continuously for 36 hours thanks to its 12V 1.3 Ah battery. If the battery voltage is low, a red light illuminates to warn the user.
Areas of Use:
In buildings: It ensures safety by cutting off gas flow and electricity during an earthquake.
Elevator Systems: Ensures that elevators are brought down to the nearest floor in the event of an earthquake.
Fire Systems: Works integrated with fire panels and activates safety measures in case of shock.
Generators: Enables generators to be disabled or diverted in emergency situations.
ORFA Industrial Products Industry and Trade Inc. 's Seismic Motion Detecting Gas Cutting Device is designed to provide the highest level of security in your buildings in case of an earthquake and offers a safe living space with its vital functions and technical superiorities.
