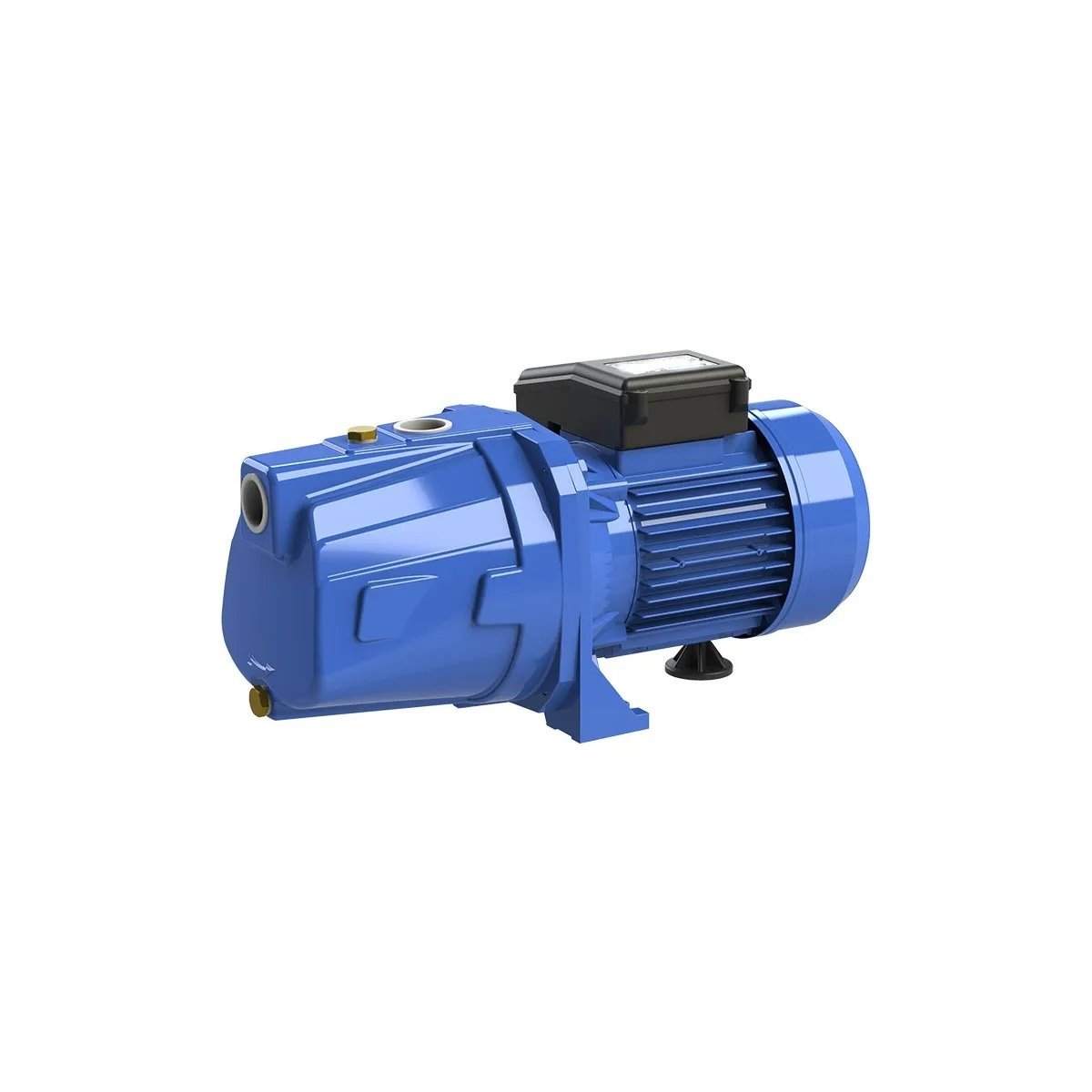

Jet Pump 1.5 HP JSP 150
Jet pumps are highly energy-efficient devices designed for liquid transfer. ORFA Industrial offers reliable, high-performance jet pumps for industrial applications. These pumps stand out with their unique designs, providing superior transfer capabilities even under challenging conditions.
Jet pumps, thanks to their ability to suction from a depth of 9 meters, can draw water from a well or reservoir. This feature makes them suitable for small-scale garden irrigation and as a hydrophore for buildings as large as four to five stories. Thanks to their 9-meter suction capacity, they are the most preferred pump type for pumping water from pumps and wells, as well as for garden irrigation and hydrophore systems.
Technical Specifications
Working Conditions:
Maximum ambient temperature: 40℃
Maximum water temperature: 40℃
Power Supply: 230 VOLT 50 HZ
Pump Material:
Pump Body: Cast Iron
Winding: 100% Copper
Shaft: Stainless Steel
Fan: Bronz
Protection Class: IP44
Product Features:
High pressure and efficiency
Corrosion and wear resistant materials
Low energy consumption
Wide operating temperature range
Easy installation and maintenance
Advantages:
Reducing costs through energy savings
Superior performance in high pressure liquid transfer
Suitability for wide application areas
Long life and low maintenance requirements
Providing an environmentally friendly solution
Application Areas:
Water supply and distribution
Chemical substance transfer
Wastewater management
Agriculture and irrigation systems
Maritime and shipbuilding
ORFA Industrial Products Industry and Trade Inc. offers its customers reliable, efficient, and high-performance solutions with the jet pumps it sells. Suitable for a wide range of applications, these jet pumps reduce your costs with their energy-saving and long-lasting design, while also providing an environmentally responsible solution. Jet pumps can be used in a wide range of applications, from water supply and distribution to chemical transfer, wastewater management, and agricultural and irrigation systems. With their durable materials and easy maintenance, jet pumps are an ideal choice for your industrial needs.
| MEDICINE | STRENGTH | Ampere | Capacitor | RPM | Q.max | H.max | S. Head | NW(kg) | DIMENSIONS | |||||||
| HP | kW | 220V | (µF) | (l/min) | (m) | (M) | A | B | H | kg | ||||||
| JSP 100 | 1 | 0.75 | 4.5 | 20 | 2850 | 54 | 52 | 9 | 18 | 450 | 205 | 230 | 19 | |||
| JSP 150 | 1.5 | 1.1 | 7.5 | 30 | 2850 | 70 | 60 | 9 | 25 | 550 | 255 | 280 | 26 | |||
| JSP 200 | 2 | 2 | 8.5 | 30 | 2850 | 75 | 68 | 9 | 33.5 | 590 | 255 | 280 | 34.5 | |||
