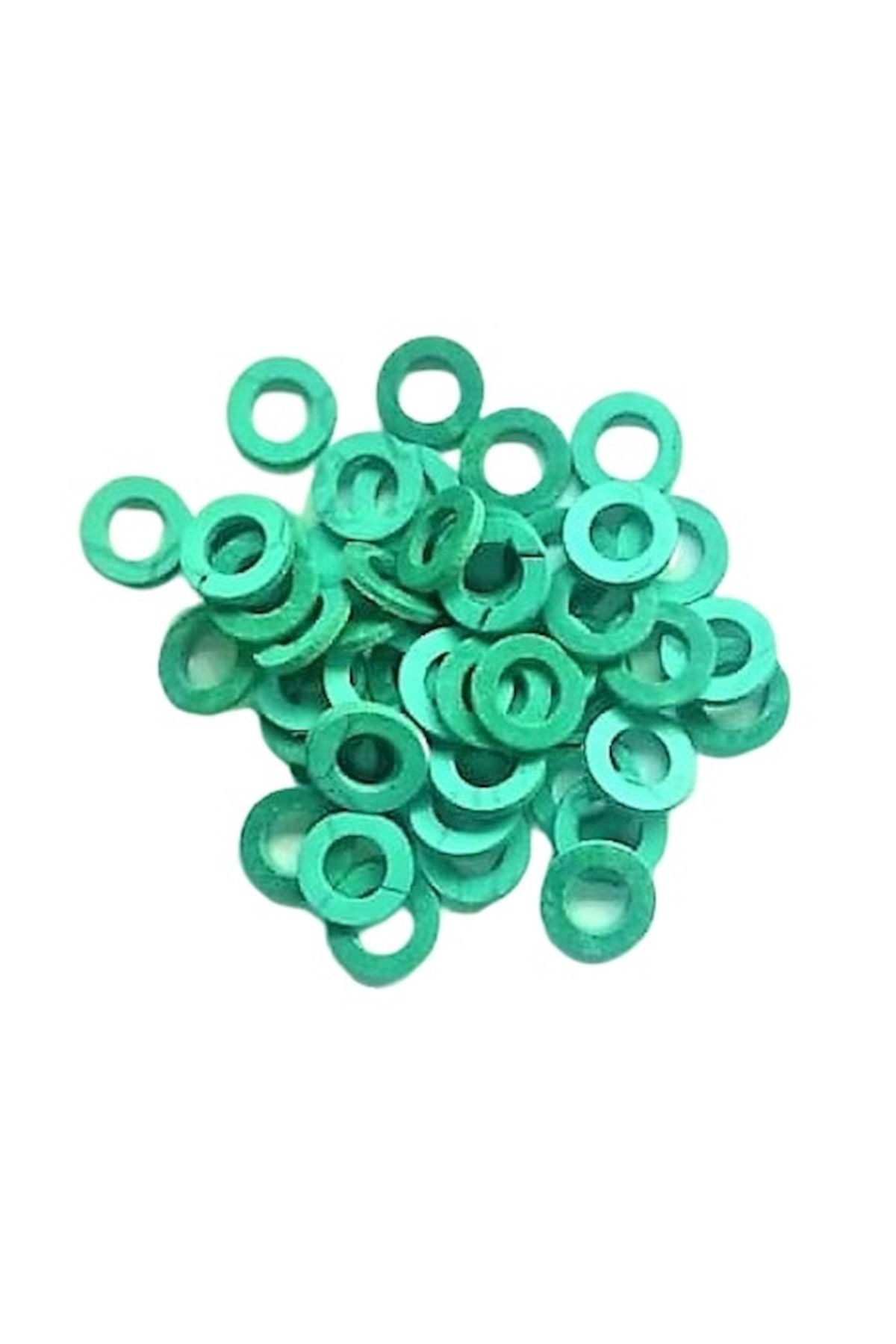

KLINGRIT Su Contası 1''

Klingrit Water Seal 1'': Reliable Sealing Solution for Your Water Installations

Gaskets play a vital role in preventing water leakage at flange, fitting, and valve connections in plumbing systems. The 1" Klingrit water seal is a product designed to meet these needs, providing a reliable and long-lasting seal, particularly in industrial and commercial water installations where high pressure and temperature conditions exist.

What is Klingrit Water Seal and What Does It Do?

Klingrit (or Klingrit) is a high-performance gasket sheet material composed of aramid fiber, mineral fiber, and elastomeric binders such as NBR (Nitrile Butadiene Rubber). Gaskets cut from these sheets create a leak-proof barrier at joints. It does not contain harmful asbestos.

Main Functions:

• Sealing: Effectively prevents fluid (in this case, water) from leaking out at connection points such as flanges, unions or valves.

• Pressure Resistance: Maintains its sealing performance without deformation at connection points exposed to high pressure.

• Heat Resistance: Prevents seal deterioration in high temperature water lines (hot water, steam).

Klingrit Water Seal 1'' Features and Advantages:

• Diameter Specification (1''): A gasket specifically cut for piping and fittings with a diameter of 1 inch (DN25). This ensures a perfect fit on standard flanges and unions.

• Asbestos-Free Construction: It does not contain any harmful asbestos substances, which provides a safe working environment.

• High Pressure and Temperature Resistance: Provides excellent resistance to high pressure and hot water. Ideal for medium temperature and pressure applications in water, air, light oil and fuel systems.

• Wide Application Area: It can be used not only for water, but also in gas and light chemical applications by cutting from sheets of appropriate composition.

• Durability: Thanks to its mechanical strength, it is resistant to compression and tension, which extends the life of the seal.

• Cost Effective: It is an economical and reliable sealing solution especially for medium pressures.

Areas of Use of Klingrit Water Seal:

• Water Installations: Flange and union connections in domestic, commercial and industrial water lines.

• Heating and Cooling Systems: Central heating boilers, combi boilers and chiller lines.

• Steam Systems: Condensate in steam lines and connections of steam valves.

• Pump Systems: Pump inlet and outlet connections.

• Industrial Applications: In various industrial process lines.
