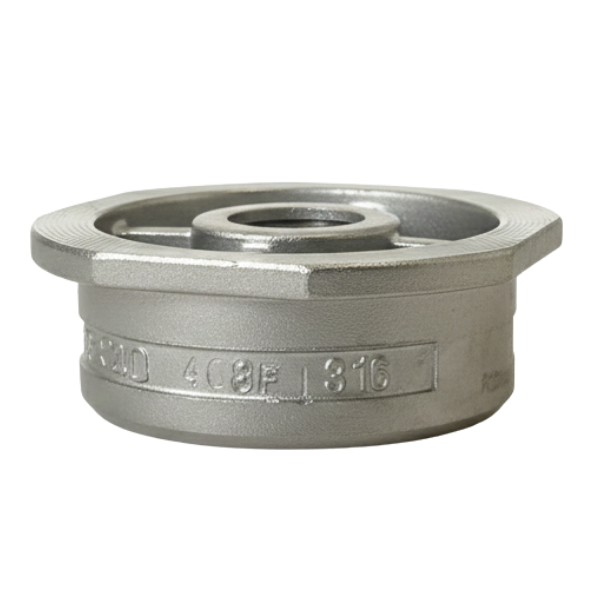

KSB BOA-RVK Paslanmaz Disko Çekvalf PN40 DN15
KSB BOA-RVK Stainless Steel Disc Check Valve PN40 DN15
Safe Flow Control in Demanding Processes with ORFA Industrial Assurance
In industrial installations requiring high pressure and temperature resistance, the disc check valve plays a critical role by ensuring one-way flow and automatic closure against back pressure, maximizing system safety. Designed with KSB's engineering superiority, this disc check valve features an AISI 316L stainless steel body and internal components, providing excellent corrosion resistance in harsh environments such as steam, hot oil, and high-pressure gas lines. With a pressure rating up to 40 bar and temperature tolerance up to 400°C, this professional disc check valve operates reliably in the most demanding applications in the petrochemical and power generation industries. The compact wafer-type design of the disc check valve saves space in piping and greatly simplifies installation and maintenance. With a spring-assisted mechanism for silent closure, this disc check valve minimizes the risk of water hammer in the pipeline, extending the life of system components. With a nominal diameter of DN15, the disc check valve is ideal for medium-flow lines and can be quickly supplied from ORFA Industrial stocks. The fully stainless steel construction of the disc and spring in the disc check valve eliminates any risk of corrosion and internal wear. Choose KSB disc check valve to maximize your process safety and experience long-term, trouble-free operation.
Disc Check Valve Technical Specifications
Disc Check Valve Performance Characteristics
| Opening Pressure (Bar) | Closing Pressure (Bar) | Lift Height (mm) | Closing Speed (ms) | Flow Rate Range (m³/h) |
|---|---|---|---|---|
| 0.5 - 1.0 | 0.3 - 0.8 | 3 - 5 | 150 - 250 | 2.5 - 5.0 |
Key Advantages of Disc Check Valve
- High Corrosion Resistance: AISI 316L stainless steel construction for maximum durability in steam and acidic environments.
- Silent Closing: Spring-assisted mechanism minimizes water hammer and vibration in the pipeline.
- Compact Design: Wafer-type connection for space saving and easy installation.
- Minimal Turbulence: Flow geometry ensures low pressure drop and energy efficiency.
Disc Check Valve Application Areas
- Use of disc check valve in steam generators and condensate return lines.
- Hot oil circulation lines, industrial furnaces, and heat exchangers.
- Petrochemical and chemical industry high-pressure gas line applications.
- Power plants, power generation facilities, and process control systems.
Disc Check Valve Technical Support and Supply
Contact ORFA Industrial expert team for KSB disc check valve installation, spare parts, and technical consultancy.
Ensure safe flow control and long-lasting operation in your process lines with KSB disc check valve solutions.
| Body Material | : | Stainless |
| Pressure Class (PN) | : | PN 40 |
| Nominal Diameter (DN) | : | DN 15 |
