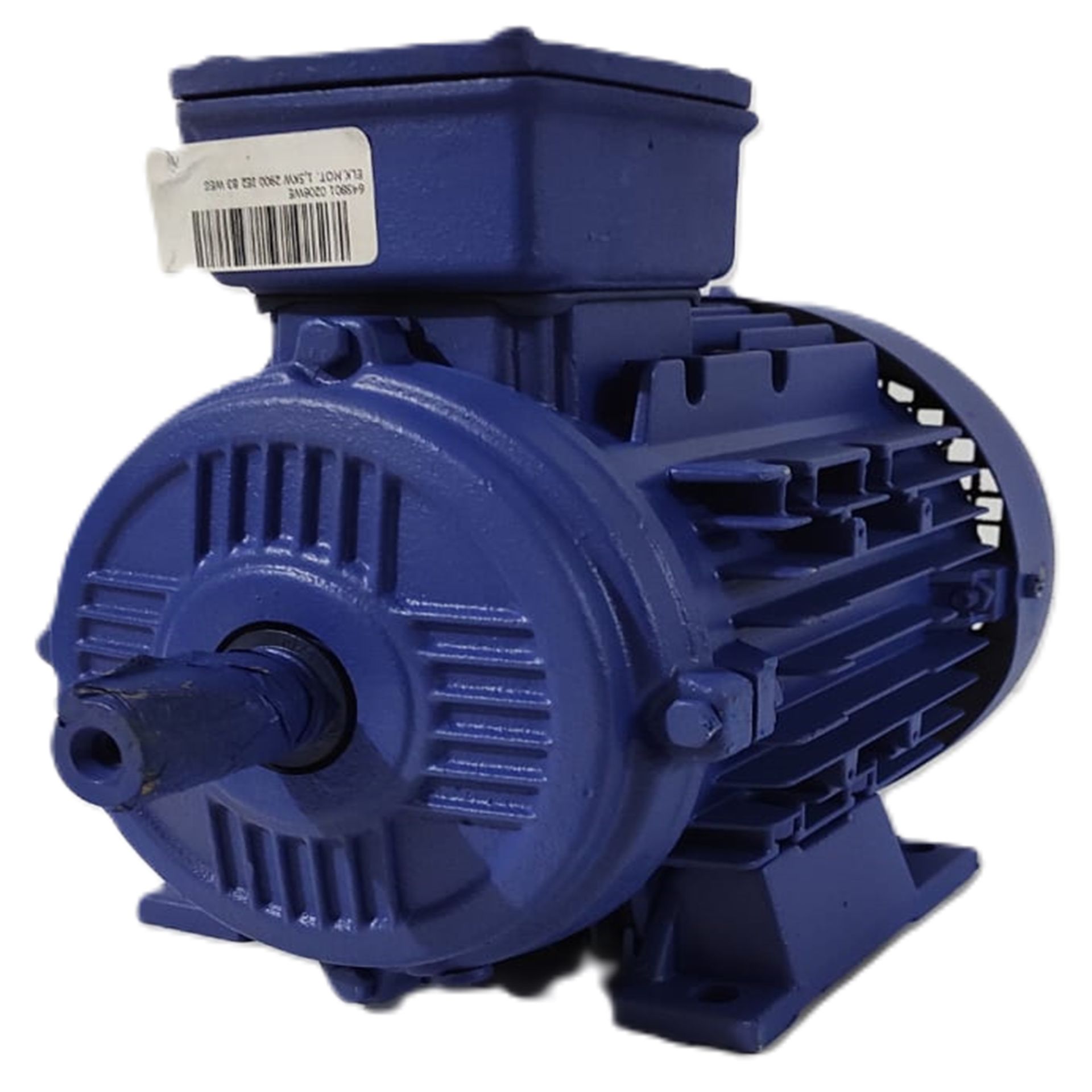

KSB Electric Motor 1.5 kW 2900 rpm IE2 B3 Flanged
188,40 USD
Installments starting from 188,40 USD!
KSB Electric Motor 1.5 kW 2900 rpm IE2 B3 Flanged
With ORFA Industrial Warranty Energy Efficient Industrial Drive
The reliable heart of industrial pump, fan and compressor applications, the electric motor at 1.5 kW delivers high performance and energy savings as a professional solution. Manufactured by KSB, this electric motor operates at maximum efficiency at its nominal speed of 2900 rpm, continuously supporting system flow without interruption. Designed with IE2 efficiency rating, this electric motor fully complies with European Union energy standards, reducing your facility's electricity costs by approximately 15-25%. With B3 flanged mounting design, this electric motor mounts directly to pumps and reducers without play. Utilizing asynchronous three-phase motor construction, this electric motor offers full flexibility in 380 Volt Y-D configuration or 220 Volt delta connection. With IP55 protection rating, this electric motor is resistant to dust, water splashing and humid industrial environments, providing long service life in steel mills, chemical plants and agricultural operations. Thanks to Class F insulation rating, this electric motor safely operates at temperatures up to 155°C, providing reliable drive in closed industrial areas without cooling. With its simple yet robust design and lightweight 21 kg body, this electric motor minimizes installation and maintenance. Using AISI 430 cast iron stator and rotor construction, this electric motor exhibits high resistance to corrosion and mechanical impact. Designed for S1 continuous operation mode, this electric motor can operate continuously 24 hours under full load with maximum efficiency. KSB electric motor available from ORFA Industrial stock is a reliable and long-lasting choice for your industrial drive requirements.
Electric Motor Technical Specification Details
Nominal Operating Data
| Parameter | Value | Unit |
|---|---|---|
| Installed Power | 1.5 | kW |
| Nominal Speed | 2900 | rpm |
| Nominal Torque | 4.92 | N·m |
| Nominal Current (380V Y) | 2.9 | A |
| Nominal Current (220V Δ) | 5.0 | A |
| Power Factor | 0.78 | Cos φ |
| Efficiency | 82 | % |
Electric Motor Key Advantages
- Energy Savings: IE2 class electric motor with 15-25% reduced energy consumption.
- Reliable Drive: B3 flanged electric motor mounts directly to pumps and compressors.
- Durable Construction: AISI 430 cast iron stator with long-lasting electric motor performance.
- Cooling Effectiveness: IP55 protected electric motor operates in hot environments.
Electric Motor Application Fields
- Industrial water supply pump drive and water tank automation systems.
- Fan, compressor and pressurized air unit electric motor solutions.
- Chemical and petroleum industry fluid transfer system electric motor applications.
- Agricultural mechanization, mill and grain processing facility drive operations.
Electric Motor Technical Support and Supply
For KSB electric motor installation, initial configuration and spare parts support, contact the ORFA Industrial expert team.
With KSB electric motor solutions, provide your industrial drive systems with reliable, efficient and economical power.
| Power (P) | : | 2 HP - 1.5 KW |
| RPM | : | 2900 rpm |
