KSB Etanorm 100-080-160 Centrifugal Pump 1.5 kW 1450 rpm
0 - Comment / Read Comments

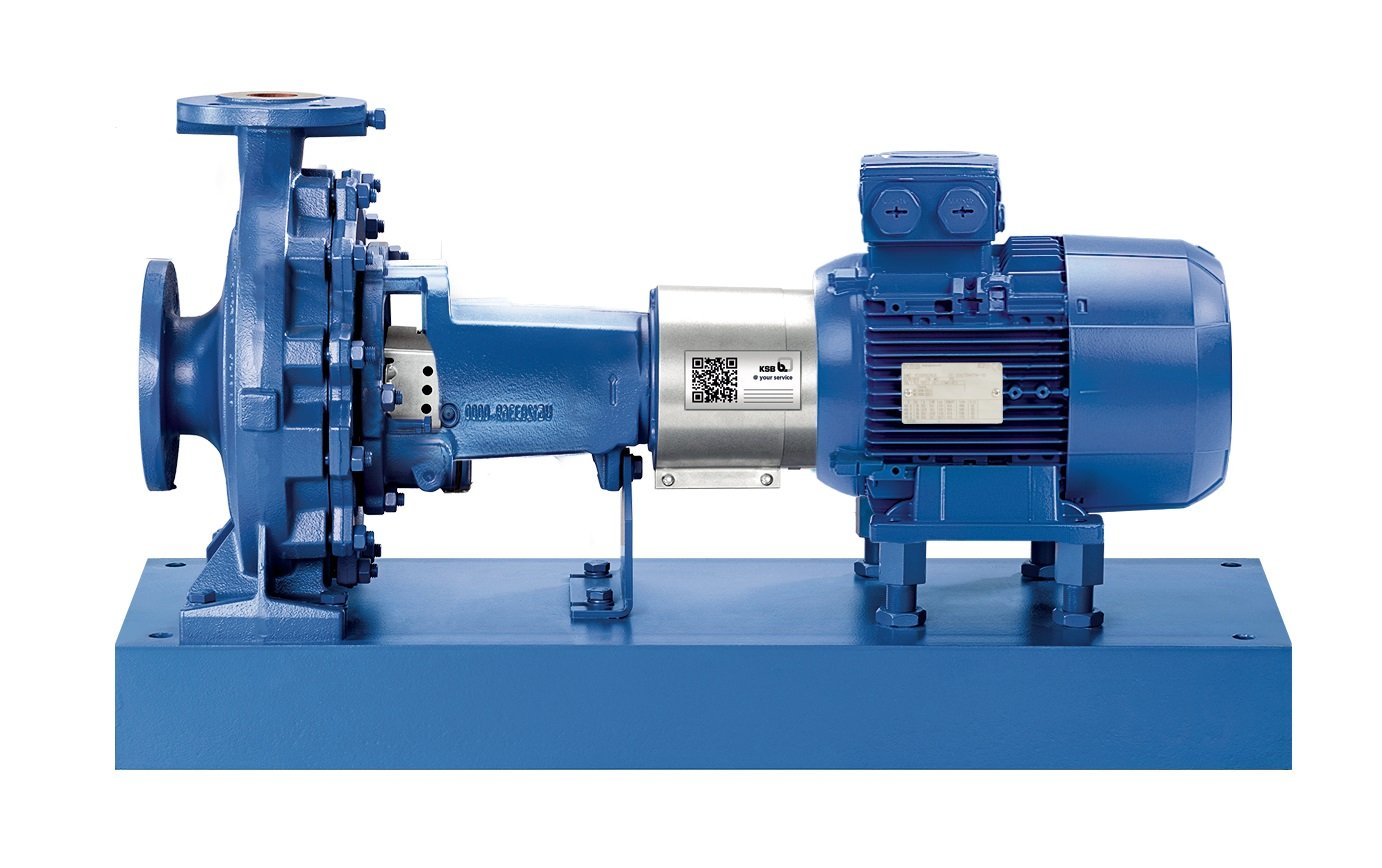

KSB Etanorm 100-080-160/154 GG Centrifugal Pump | 1.5 kW | 1450 rpm
ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş., continues to offer professional solutions to the needs of the sector with pump solutions that combine high quality and energy efficiency. In this context, the KSB Etanorm 100-080-160/154 GG Centrifugal Pump stands out with its low speed operation, quiet performance and compact structure.
This Centrifugal Pump is a centrifugal pump with a single-stage horizontal volute body, complying with the EN 733 standard. While 1450 rpm engine speed keeps vibration and sound levels in the system to a minimum, the 1.5 kW IEC IE3 engine provides energy savings. The pump offers the advantage of easy maintenance with its retractable (back pull-out) design; The motor, bearing housing and impeller can be easily removed without removing them from the installation.
Specification
Pump Type: Horizontal, single-stage volute centrifugal pump
Model: Etanorm 100-080-160/154 GG
Engine Power: .5 kW
Revolution: 0 rpm
Maximum Flow Rate (Q): m³/h
Maximum Head (H): mSS
Maximum Current: ,465 A
Fluid Temperature: °C – 110 °C
Operating Pressure: Maximum 16 bar
Operating Ambient Temperature: -10 °C – +50 °C
MEI Value: ≥ 0.
Engine Efficiency Class: IE3 – Premium Efficiency
Protection Class: IP
Engine Type: KSW - IEC 90L
Body Material: Gray cast iron (JL1040)
Impeller Material: Steel / Tempered steel (E335/C45)
Shaft Material: Grey cast iron (JL1040)
Sealing: Single mechanical seal (EN12756) – Q1Q1X4GG
Suction / Discharge Nozzle Dimensions: DN 100 / DN
Installation: Pump + motor set on base plate
Weight: .5 kg
Centrifugal Pump Usage Areas
Industrial water circulation systems
HVAC applications in commercial buildings
Irrigation systems in agriculture
Recycling and water treatment facilities
Low speed, silent system needs
Fire systems and pressurized water networks
@KSB Etanorm 100-080-160/154 GG makes a difference in areas where low flow rate and quiet operation are required with its energy efficiency, serviceability and long-lasting structure. ORFA Industrial allows you to optimally integrate this Centrifugal Pump into your projects with expert engineering support.
| Body | : | Iron Casting |
| Strength | : | 2 HP - 1.5 KW |
| Transfer | : | 1450 d/d |
