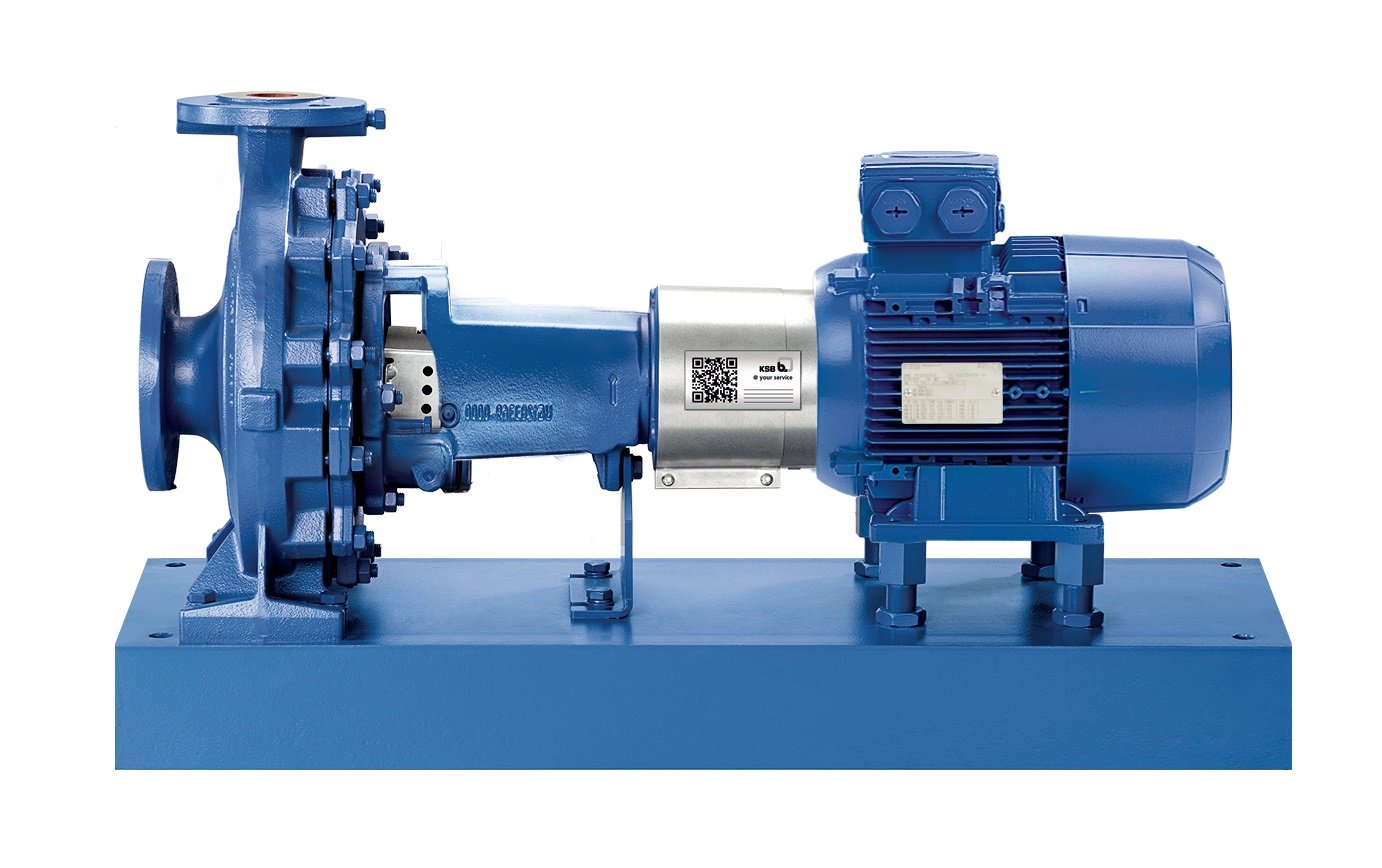

ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. offered with assurance KSB Etanorm 100-080-160/1502 GG is a horizontal, single-stage volute type centrifugal pump model designed for high performance water transfer applications. EN It is produced in accordance with 733 norms and is ideal for long-lasting and efficient operation in harsh industrial conditions.

This pump, whose body is radially divided, has integrated feet and with its retractable (back pull-out) design, it allows easy maintenance and service operations without the need to dismantle the plumbing connections. Centrifugal Pump, which has a closed type, multi-volute impeller, provides maximum efficiency and quiet operation in liquid passage.

Centrifugal Pump Technical Specifications

Pump Type: Horizontal, single-stage volute pump

Model: Etanorm 100-080-160/1502 GG

Engine Power: kW

Revolution: 0 rpm

Maximum Flow Rate (Q): m³/h

Maximum Head (H): mSS

Maximum Current: .4 A

Rated Input/Output: DN 100 / DN

Body Material: Gray cast iron JL1

Impeller Material: Steel / Tempered steel (E335/C45)

Spindle: Grey cast iron JL1

Sealing: EN Conical cover mechanical seal conforming to 12756 standards (Q1Q1X4GG)

Fluid Temperature: °C - 110°C

Operating Pressure: Maximum 16 bar

MEI Efficiency Value: ≥ 0.

Protection Class: IP

Engine Type: KSW - IEC, 160M

Energy Class: High efficiency (suitable for IE classification)

Supply Voltage: x 380–480 V AC (±15%)

Net Weight: .4 kg

Centrifugal Pump Usage Areas

Industrial water supply

HVAC (heating-cooling) systems

Agricultural irrigation systems

Water treatment and recycling facilities

Pressure systems

Industrial process applications

KSB Etanorm Centrifugal Pump series increases system efficiency by reducing operating costs with its modular structure, energy efficiency and ease of maintenance. With the engineering support of ORFA , you can find the most suitable pump solutions for your projects.

Operating Voltage	:	380 V AC
Body Material	:	Casting
RPM	:	2900 rpm
Nominal Diameter (DN)	:	DN 80, DN 100
Maximum Head (H)	:	25 mSS
