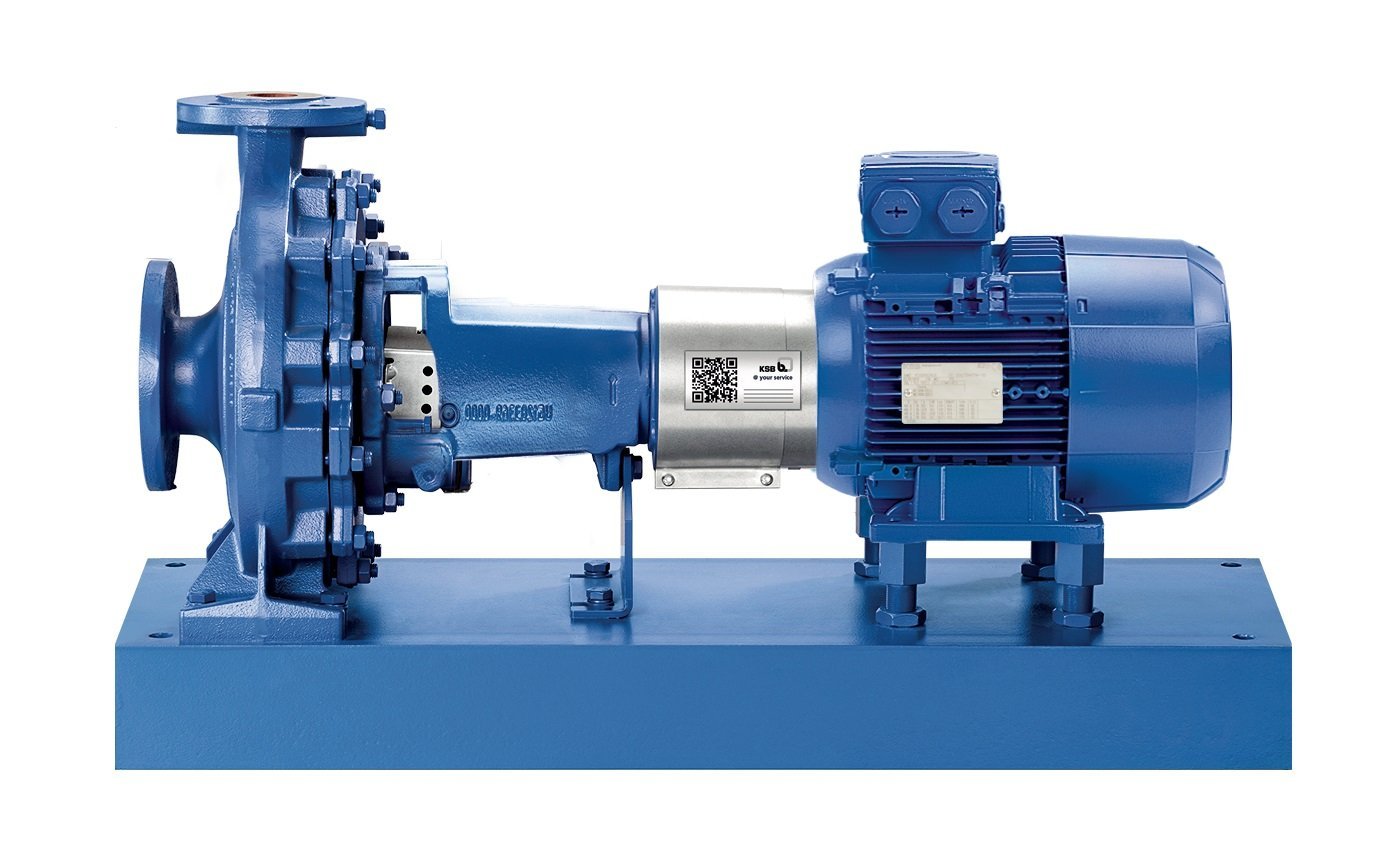

KSB Etanorm 100-080-200 Centrifugal Pump 2.2 kW 1450 rpm
0 - Comment / Read Comments
KSB Etanorm 100-080-200 Centrifugal Pump 2,2 kW 1450 rpm
ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş . is a well-established company that offers world-class quality solutions to its customers. The KSB Etanorm 100-080-200 Centrifugal Pump in its portfolio stands out with its reliability and high performance.
KSB Etanorm Centrifugal Pump series is the industry leader among horizontal single-stage volute casing pumps. Designed in accordance with EN733 standards, this model offers maximum durability with its radically divided body and integrated cast pump feet. Long coupling design provides ease of maintenance and operational efficiency.
Etanorm's retractable design makes it possible to easily disassemble the coupling, bearing bracket and impeller without disassembling the connections. In this way, facility downtime is minimized and maintenance costs are reduced.
Centrifugal Pump Features
Model: KSB Etanorm 100-080-200/224 GG
Engine Power: .2 kW
Speed: 0 rpm
Maximum Flow Rate (Q): m³/h
Maximum Head (H): .2 mHH
Fluid Temperature: °C to +110 °C
Operating Pressure: Maximum 16 bar
Ambient Temperature: -10 °C to +50 °C
Engine Type : KSB IEC
Engine Efficiency Class: IE3 (Premium Efficiency)
Motor Voltage: x 380 V AC -15% ~ 480 V AC +10%
Maximum Current: .84 A
Protected Engine Structure: IP
Connection Dimensions: Suction DN 100 / Discharge DN
Weight: Approximately 167.6 kg
Centrifugal Pump Materials:
Pump Casing: Gray cast iron JL1
Impeller: Steel/heated steel E335 or C
Pump Shaft: Grey cast iron JL1
Packing: Single mechanical seal (EN12756), Q1Q1X4GG
Body Wear Rings: Non-asbestos DPAF and gray cast iron options
Centrifugal Pump Technical Advantages
Long life and low maintenance costs thanks to replaceable body wear rings
Closed radial impeller design, high hydraulic efficiency with multi-curved blades
Shaft wear is minimized thanks to the shaft protection bushing
Easy maintenance and service advantage thanks to modular structure and retractable design
Wide fluid temperature and operating pressure range
Robust and vibration-free installation thanks to integrated base plate
Centrifugal Pump Areas of Use
Industrial process lines
Drinking water and domestic water transfer systems
Agricultural irrigation and drainage applications
Heating and cooling systems (HVAC)
Fire extinguishing systems
Chemical and petrochemical plants
Power plants
KSB Etanorm 100-080-200 Centrifugal Pump is an ideal choice for critical applications that require low maintenance, energy saving and high reliability.
ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. offers the most accurate solutions for all your project needs with its wide product stock and expert engineering support.
| Body | : | Iron Casting |
| Strength | : | 3 HP - 2.2 KW |
| Transfer | : | 1450 d/d |
