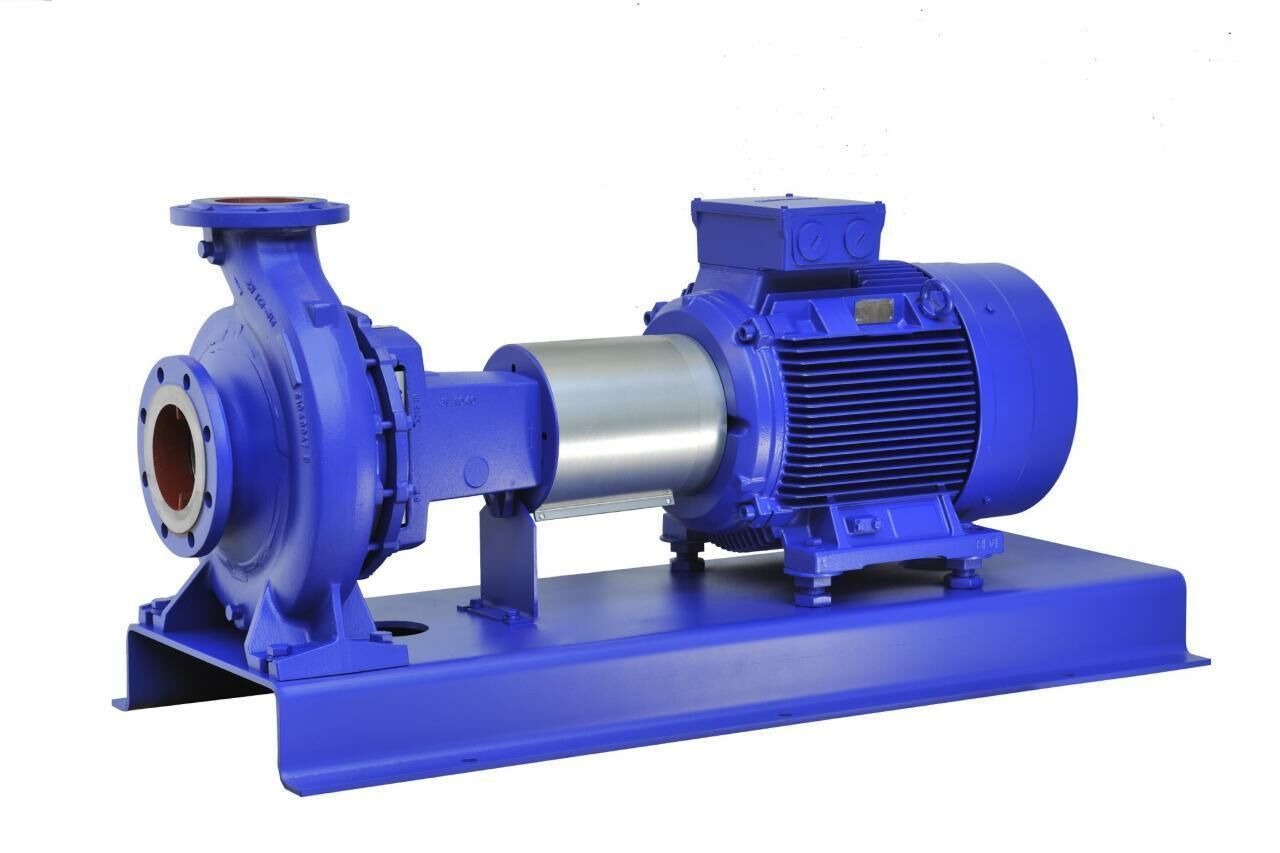

KSB Horizontal Centrifugal Pump Meganorm 65-315 Siemens Motor 90 kW
%55 Discounted Product
0 - Comment / Read Comments
16.584,00 EUR
7.462,80 EUR
Category
Brand
Stock Code
02444
Warranty Period
24 Month
Price
13.820,00 EUR + VAT
* Installments starting from 1.409,97 EUR!
Add to Cart
The KSB Meganorm 65-315 is a 90 kW horizontal centrifugal pump with a Siemens motor. This pump is ideal for a wide range of applications in industrial facilities, including water supply, heating, cooling systems, and irrigation. Standing out with its high efficiency and reliable performance, this pump delivers maximum flow and pressure while minimizing energy consumption. The KSB Meganorm is designed for long-term use and is easy to maintain. The pump casing is manufactured from corrosion-resistant materials, ensuring the safe and hygienic transport of liquids. The 90 kW Siemens motor provides superior performance and energy efficiency.
mega norm
The single-stage helical casing pump is horizontally mounted and features a rotation design. It meets the technical requirements of ISO 5199. Dimensions and performance in accordance with ISO 2858 are completed with pumps with nominal sizes from DN 25 to DN 200 and larger.
Select product
Main applications
Water supply systems
Drainage systems
Irrigation systems
Sugar industry
View all apps
Technical data
Maximum flow Gen. series
700 m³/hour
Alt.manom. max. Gen. series
140 meters
op.max press. permission. side press
16 bars
Maximum temperature. Series G. Liquid
105°C
Energy efficiency and ecological use of resources thanks to hydraulic features with maximum efficiency and NPSH
Lower investment costs can be achieved thanks to operating points determined by smaller pumps.
Lower operating costs thanks to lower energy consumption, optimised spare parts concept as well as maintenance-friendly and wear-minimising design
Technical data
Function of components
Pump
Connection type Login
Flange
Drive concept
E-motor
Maximum flow Gen. series
700 m³/hour
Alt.manom. max. Gen. series
140 meters
Network frequency
60 Hz
Main voltage
220V,
380V,
440V,
760V
Nominal outlet pressure
PN 16
op.max press. permission. side press
16 bars
Sucking behavior
Normal suction
Maximum temperature. Series G. Liquid
105°C
Minimum temperature. perm.fluid ger.sér.
2°C
| Voltage | : | 380 Volt |
| Strength | : | 120 HP - 90 KW |
| Transfer | : | 2900 d/d |
