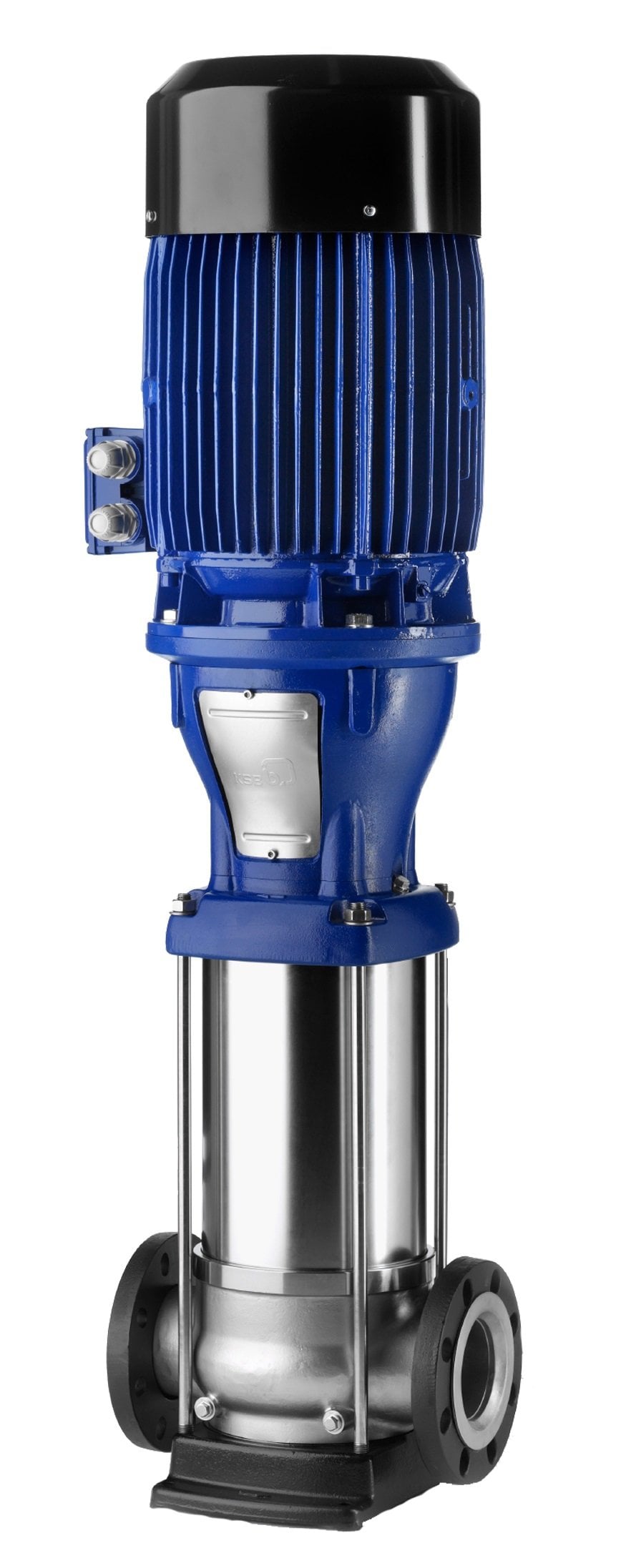

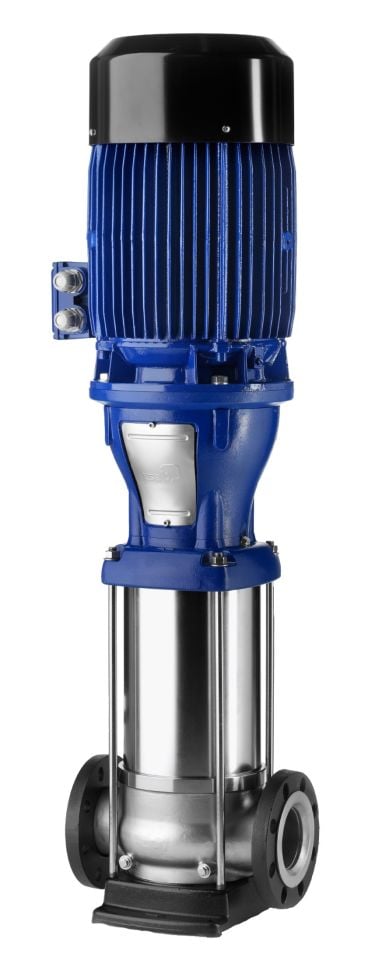

KSB Movitec VF 10/19 b Dikey Kademeli Pompa 2900 d/d
KSB Movitec VF 10/19 b Vertical Multistage Pump 2900 rpm
High Efficiency in Industrial Water Applications with ORFA Industrial Assurance
This vertical multistage pump, designed with KSB's advanced engineering solutions, provides reliable performance in industrial water circuits and high-pressure applications. With an optimized 19-stage design, this vertical multistage pump achieves a head of 57 meters at 2900 rpm, ensuring stability in the most demanding process conditions. This model from the Movitec VF series, with its compact vertical design, saves space while the stainless steel casing and precision-balanced impeller system guarantee long-term reliability. Preferred for clean water, this vertical multistage pump is widely used in the food, pharmaceutical, chemical industries and industrial cooling systems. Supplied by ORFA Industrial, this vertical multistage pump is fully compliant with ISO 5199 and ISO 9906 standards, having passed international quality certification. Leveraging the advantages of multistage technology, this vertical multistage pump increases the fluid pressure in stages, maximizing energy efficiency. Frequently chosen for fire-fighting systems, high-pressure water supply panels, and recirculation lines, this vertical multistage pump perfectly adapts to clean water with viscosities up to 1 mm²/s. The stainless steel shaft, mechanical seal, and vibration-reducing bearing system extend maintenance intervals and minimize operating costs. With DN50 PN40 flanged connection, this vertical multistage pump can be easily integrated into standard industrial pipelines, achieving optimal performance with water density of 0.998 kg/dm³ at 20°C. By choosing this KSB vertical multistage pump model for your project's high-pressure and flow requirements, you obtain a long-lasting and efficient solution.
Technical Specifications of the Vertical Multistage Pump
Performance Data (Flow / Head)
| Flow (m³/hour) | 0.00 | 0.60 | 1.20 | 1.80 | 2.40 |
|---|---|---|---|---|---|
| Head (m) | 57.0 | 56.2 | 54.8 | 52.1 | 48.0 |
Key Advantages of the Vertical Multistage Pump
- High Head Capacity: Vertical multistage pump design with 19 stages achieving 57 meters head.
- Energy Efficiency: Vertical multistage pump with IE3 class motor and staged impeller system for energy savings.
- Long Service Life: Durable vertical multistage pump solution with stainless steel casing, mechanical seal, and precision bearings.
- Compact Vertical Design: Vertical multistage pump configuration delivering maximum performance in confined spaces.
Application Areas of the Vertical Multistage Pump
- High-pressure water supply systems and hydrophone stations.
- Industrial process water circuits and cooling systems with vertical multistage pump.
- Clean water transfer solution in food, pharmaceutical, and chemical industries using vertical multistage pump.
- Reliable vertical multistage pump performance in fire-fighting systems and recirculation filtration lines.
Technical Support and Supply for the Vertical Multistage Pump
For installation and spare parts of the KSB vertical multistage pump, contact the expert team at ORFA Industrial.
Achieve high performance and long-lasting operation in industrial water applications with the KSB Movitec VF 10/19 b vertical multistage pump.
| Operating Voltage | : | 380 V AC |
| Power (P) | : | 7.5 HP - 5.5 KW |
| Body Material | : | Stainless |
| RPM | : | 2900 rpm |
| Nominal Diameter (DN) | : | DN 50 |
| Maximum Head (H) | : | 57 mSS |
| Flow rate Q : m³/h | : | 2,4 m³/h |
