At ORFA Industrial Products Industry and Trade Inc. , we meet the needs of the industry with Multistage Centrifugal Pumps that deliver superior performance in industrial, agricultural, and commercial applications. Designed with modern technologies, these Multistage Centrifugal Pumps stand out with their energy efficiency, durability, and high-pressure performance. Thanks to their environmentally friendly and long-lasting design, Multistage Centrifugal Pumps are a safe choice for your projects and cater to a wide range of applications.

Working Principle of Multistage Centrifugal Pump

A multistage centrifugal pump gradually increases pressure by circulating liquid through impellers located at each stage. This results in high pressure with low energy consumption. From the moment the liquid enters the pump until it exits, the pressure is increased steadily and efficiently at each stage. Its compact design saves space and simplifies maintenance.

Multistage Centrifugal Pump Technical Specifications

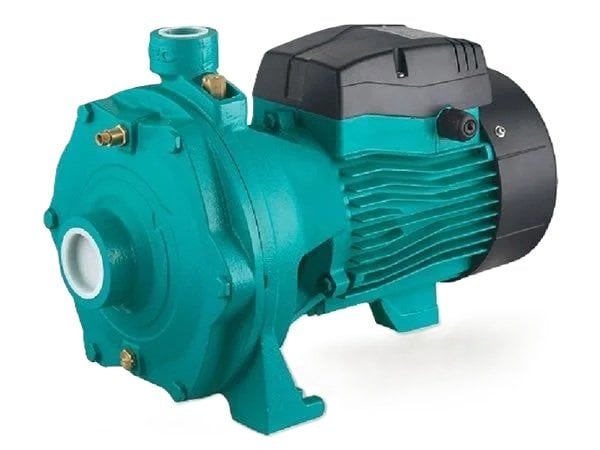

Model: 2ACm75

Volt / Frequency: 180-220V / 50Hz

Engine Power: 0.75 kW / 1 HP

Inlet Diameter: 1 1/4"

Outlet Diameter: 1"

Max Flow (Q): 0-80 L/minute - 4.8 m3/h

Max. Head (H): 15-45 m

Multistage Centrifugal Pump Features:

The cast iron body is protected against corrosion with a special anti-rust treatment.

AISI 304 stainless steel shaft providing high durability.

Maximum liquid temperature: +40°C

Maximum suction depth: 8 meters

Engine Features:

High quality C & U bearing.

Copper winding to increase efficiency.

Safe use with internal thermal protector.

Insulation class: F

Protection class: IPX4

Maximum ambient temperature: +40°C

Areas of Use

Industrial Applications: Transfer of liquids with chemical and physical properties similar to water.

Urban Water Supply: Increasing water pressure in city water networks and high-rise buildings.

Fire Extinguishing Systems: Providing high pressure in fire extinguishing equipment.

Garden and Agriculture Irrigation: Reliable performance in long-distance irrigation systems.

Heating and Cooling Systems: Fluid circulation in heating, ventilation and air conditioning systems.

Long Distance Water Transfer: The ideal solution for transporting water over long distances.

Hot and Cold Water Systems: Increasing water pressure and providing circulation.

Multistage centrifugal pumps offered by ORFA Industrial Products Industry and Trade Inc. are designed to meet the challenges of your projects with their high performance and durable construction. If you're looking for both efficiency and durability, these pumps offer solutions tailored to your needs, taking your business processes one step further.

You can contact us to get detailed information and offers for your projects!

Operating Voltage	:	220 V AC
Power (P)	:	1 HP - 0.75 KW
Body Material	:	Casting
Thread Size	:	1/2'', 1 1/4''
Maximum Head (H)	:	45Mss
Flow rate Q : m³/h	:	4,8 m³/h
