Leo LRP32-60/180 Sirkülasyon Pompası
%50 Discounted Product
0 - Comment / Read Comments
171,22 USD
85,61 USD
Category
Brand
Stock Code
03790
Warranty Period
24 Month
Price
142,68 USD + VAT
* Installments starting from 85,61 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.

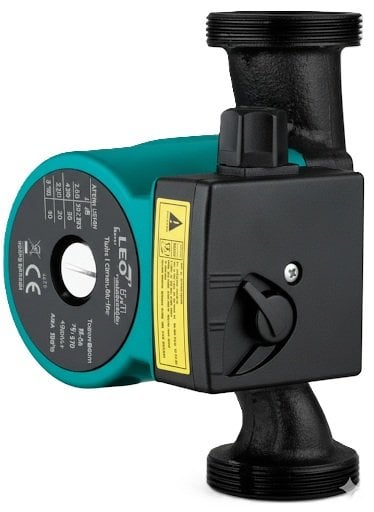

Leo LRP32-60/180 Circulation Pump – Efficient Solution, Superior Performance
The circulation pump offered by ORFA Industrial Products Industry and Trade Inc. is an advanced circulation pump system that enables efficient energy use by continuously circulating liquid in closed systems. It transports water to the desired areas, ensuring consistent flow, particularly in heating, cooling, and hot water installations. This functionality increases the pump's energy efficiency while also ensuring comfort. Circulation pumps are a reliable choice for a variety of industrial and domestic applications, offering high performance in the transfer of clean water and similar liquids.
This Circulation Pump offers an effective solution not only for heating and cooling, but also for everyday applications such as drawing water from wells, watering gardens, and increasing water pressure. Its advanced technology allows you to achieve efficient results with low energy consumption.

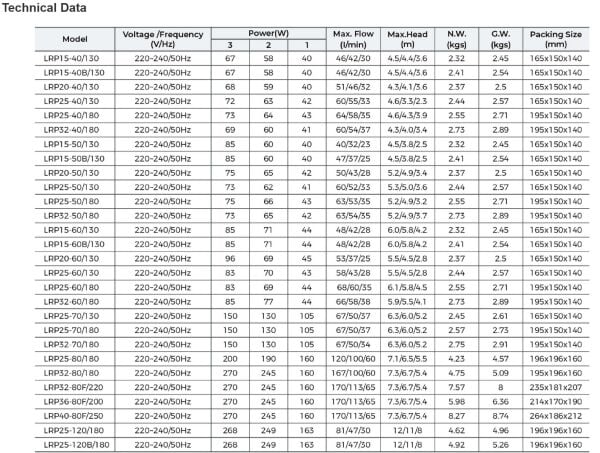

Circulation Pump Technical Specifications:
Model: LRP32 60/180
Voltage/Frequency: 220V/50Hz
Power: 96W
Inlet/Outlet Diameter: 32 mm
Connection Size: 2"
Maximum Height: 5.5 Mss
Maximum Flow: 4 m³/h
Maximum Flow: 4 m³/h
Flow Capacity (lt/min): 66/47/62
The pump body is made of durable cast iron, while the pump impeller is made of noryl material that can withstand temperatures up to 150°C. The highly durable 99% alumina ceramic shaft operates reliably over a wide temperature range (2°C to 110°C). The three-speed motor is customized to meet all fluid circulation needs.
Circulation Pump Motor Features:
Insulation Class: H
Protection Class: IP 44
Winding Material: Copper
Motor Speed: Three-stage adjustable speed
Circulation Pump Working Principle
1. Rotation of the Circulation Pump Impeller: At the heart of circulation pumps is an impeller that moves the liquid. This impeller is turned by an electric motor, which moves the liquid in a specific direction. The rotation of the impeller draws the liquid from the inlet under high pressure and pushes it toward the outlet, thus ensuring a continuous flow within the system. This movement allows water or similar liquids to circulate at a constant speed, maintaining a uniform flow throughout the system.
2. Motor and Speed Adjustment: Circulation pumps typically have a motor that can operate at three different speed settings. These speed settings help regulate the fluid flow rate and ensure optimal operation according to system needs. Low speeds save energy and reduce system load, while high speeds are preferred when rapid fluid circulation is required. The high-performance copper windings and ceramic bearings used in circulation pumps prevent the motor from overheating, ensuring long-lasting and trouble-free operation.
3. Pressure and Flow Control: The pump circulates the liquid within the system using the difference between inlet and outlet pressures. This pressure difference is the primary factor determining the liquid's flow rate. Circulation pumps, with their high-pressure capacity, enable the liquid to reach the desired heights. This feature is crucial for distributing hot water evenly to all radiators in heating systems and for ensuring that cool liquid reaches the entire area uniformly in cooling systems.
4. Heat Transfer and Energy Efficiency: Circulation pumps operate continuously to regulate ambient temperature, particularly in heating and cooling systems. In such systems, the circulation of hot and cold water within a specific cycle ensures efficient energy transfer. ORFA 's circulation pumps are developed to increase energy efficiency, offering maximum performance with minimal energy consumption. This helps maintain the desired temperature while minimizing energy loss.
5. Quiet and Efficient Operation: Circulation pumps are designed to operate with minimal vibration in the system. This not only increases user comfort but also ensures quiet and uninterrupted system operation. This low noise level, combined with the pumps' high-performance motor structure, ensures quiet and stable operation even during extended periods of use.
6. Protection and Safety Mechanisms: Circulation pumps feature features such as IP44 protection class, which protects against water leaks, overpressure, and electrical problems. These features not only extend the life of the circulation pump but also ensure safe operation. Furthermore, the anti-rust cast iron and durable noryl material used in the pump body are resistant to high temperatures, allowing the circulation pump to operate safely even in the most challenging conditions.
Circulation Pump Usage Areas:
Circulation pumps are designed to efficiently circulate hot or cold water in HVAC systems (heating, cooling, air conditioning). They also meet the high temperature and high flow requirements of industrial facilities, making them an ideal circulating pump solution for businesses. They are also suitable for both daily and commercial applications such as garden irrigation, water pressure boosting, and well extraction.
This versatile Circulation Pump is designed specifically for domestic and industrial use, and its user-friendly design allows for easy installation and maintenance. This Circulation Pump solution, offered by ORFA Industrial, combines high durability, efficiency, and comfort, making it the top choice for professionals seeking a reliable water circulation solution.
High Efficiency Circulation Pump Solutions with ORFA Industrial - Strong Performance, Durable Design!
| Operating Voltage | : | 220 Volt Ac |
| Length (mm) L: | : | 180 |
