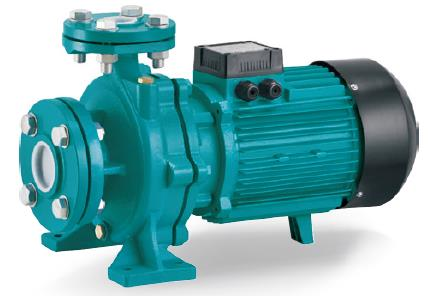

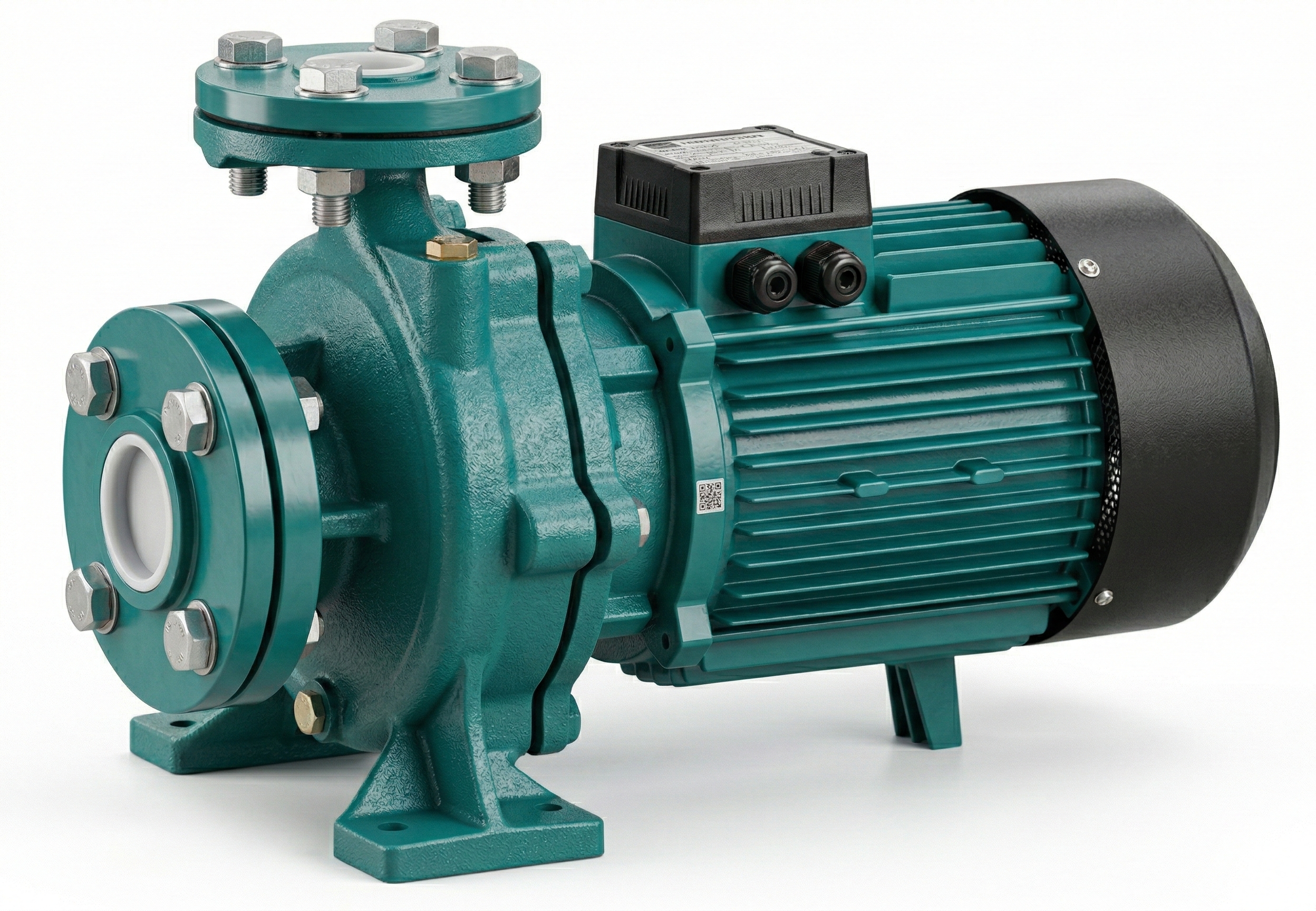

Leo XST65-125/55 Centrifugal Pump 7.5Hp
%50 Discounted Product
0 - Comment / Read Comments
1.293,66 EUR
646,83 EUR
Category
Brand
Stock Code
06944
Warranty Period
24 Month
Price
1.078,05 EUR + VAT
* Installments starting from 122,21 EUR!
Add to Cart
Leo XST65-125/55 Centrifugal Pump 7.5Hp – The Perfect Combination of Power and Efficiency
At ORFA Industrial Products Industry and Trade Inc. , we offer the most suitable solutions for your liquid transfer needs. The Centrifugal Pump we sell is an indispensable tool for your industrial applications, boasting superior performance, durability, and energy efficiency. Its modern engineering design and wide range of applications allow it to adapt to the needs of various sectors.
The Centrifugal Pump is a high-performance product that combines speed and safety in liquid transfer. Its special design allows it to efficiently process liquids and gradually increase pressure. Its compact design, easy installation, and energy-saving technology make it suitable for a wide range of applications.
Centrifugal Pump Working Principle
The basic operating principle of a centrifugal pump is that liquid enters the impeller axially and is driven outward by centrifugal force through high-speed rotation. During this process, the liquid's pressure and velocity increase, resulting in a powerful and uninterrupted transfer to the target location. The internal circulating lubrication system ensures trouble-free operation and ensures long product life.
The basic operating principle of a centrifugal pump is that liquid enters the impeller axially and is driven outward by centrifugal force through high-speed rotation. During this process, the liquid's pressure and velocity increase, resulting in a powerful and uninterrupted transfer to the target location. The internal circulating lubrication system ensures trouble-free operation and ensures long product life.
Centrifugal Pump Technical Specifications
Model: XST65-125/55
Volt / Frequency: 380V / 50Hz
Engine Power: 5.5 kW / 7.5 HP
Outlet Diameter: 65 mm
Max. Flow Rate (Q): 108 m³/h
Max. Head (H): 23 Mss
Operating Conditions
Maximum Flow: 108 m³/h
Maximum Pressure: 2.3 bar
Operating Temperature Range: -10°C to 85°C
Impeller Material: AISI 304 / HT 200
Seal: Mechanical seal in accordance with DIN 24960
Engine Specifications
Protection Class: IP 54
Insulation Class: F
Operating Temperature: Maximum +40°C
Compliance with Standards: CEI 2-3 (IEC 34.1)
Centrifugal Pump Structural Features
Flange Compatibility: UNI 2236 and DIN 2532
Ease of Installation: Rear entry system that allows the engine to be removed without cutting the pipe connections
Design Compatibility: Input and output design complies with EN 733 (ex DIN 24255) standards
Centrifugal Pump Usage Areas
Clean Water Transfer: Provides effective transportation of chemically harmless water.
Water Reserve and Irrigation Systems: Ideal for agricultural irrigation and water management applications.
Air Conditioning Systems: Provides effective distribution of water in air conditioning systems.
The Centrifugal Pump we offer at ORFA Industrial is an excellent choice for increasing your business's efficiency with its durability and superior technical features. Offering a wide range of applications, including water transfer, irrigation, and air conditioning, this pump maximizes your investment with its energy efficiency and long-lasting performance. Contact us for customized solutions, and we'll work together to determine the perfect Centrifugal Pump model for your needs!
| Voltage | : | 380 Volt |
| Strength | : | 7.5 HP - 5.5 KW |
| Transfer | : | 2900 d/d |
Be the first to comment on this product!
No questions have been asked about this product yet.
