Maxtor 3M310-08-24VDC Single Solenoid Namur Valve 1/4''
%30 Discounted Product
0 - Comment / Read Comments
25,83 USD
18,08 USD
Category
Brand
Stock Code
19323M3100824VDC
Price
21,53 USD + VAT
* Installments starting from 18,08 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.

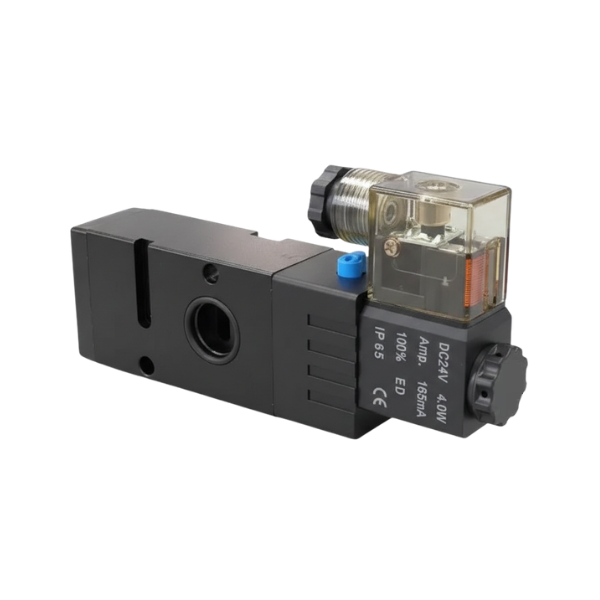

Maxtor 3M310-08-24VDC Single Solenoid Namur Valve
1/4" Large Body | Namur Standard Mounting | 3/2 - 5/2 Convertible
Maxtor 3M310-08-24VDC is a professional directional control valve designed for the automatic control of pneumatic actuators. Thanks to its Namur standard mounting interface, it can be directly mounted onto actuators. The "32 Series" large body structure provides a higher air flow rate compared to standard valves, optimizing the opening and closing speeds of large-diameter actuators. The 24VDC single solenoid structure changes position when energized and returns to the starting position via a spring return mechanism when the signal is cut.
TECHNICAL SPECIFICATIONS
Model Code 3M310-08 (32 Series)
Operation Type 3/2 - 5/2 Convertible / Single Solenoid
Supply Voltage 24V DC
Port Size 1/4" BSP (Large Body)
Mounting Standard Namur Standard Mounting Interface
Body Material Anodized Aluminum Alloy
Fluid 40 Micron Filtered Air
SYSTEM ADVANTAGES
- Flexible Configuration: Can be used with both single-acting and double-acting actuators (3/2 - 5/2) via a special gasket plate.
- High Flow Capacity: Shortens process time by accelerating air transmission with its large body structure.
- Easy Mounting: Screws directly onto the actuator via Namur interface, reducing hose clutter and leakage risk.
- Low Power Consumption: 24VDC low voltage coil allows direct connection to PLC control systems.
APPLICATION AREAS
- Pneumatic Actuator Automation: Control of quarter-turn butterfly and ball valves.
- Industrial Air Routing: High-flow air control in factory automation lines.
- Chemical and Food Processes: Control points requiring high speed and sealing in on-line valve units.
- Integrated Systems: Compatible operation with limit switch boxes and positioners.
| Operating Voltage | : | 24 V DC |
| Thread Size | : | 1/4'' |
