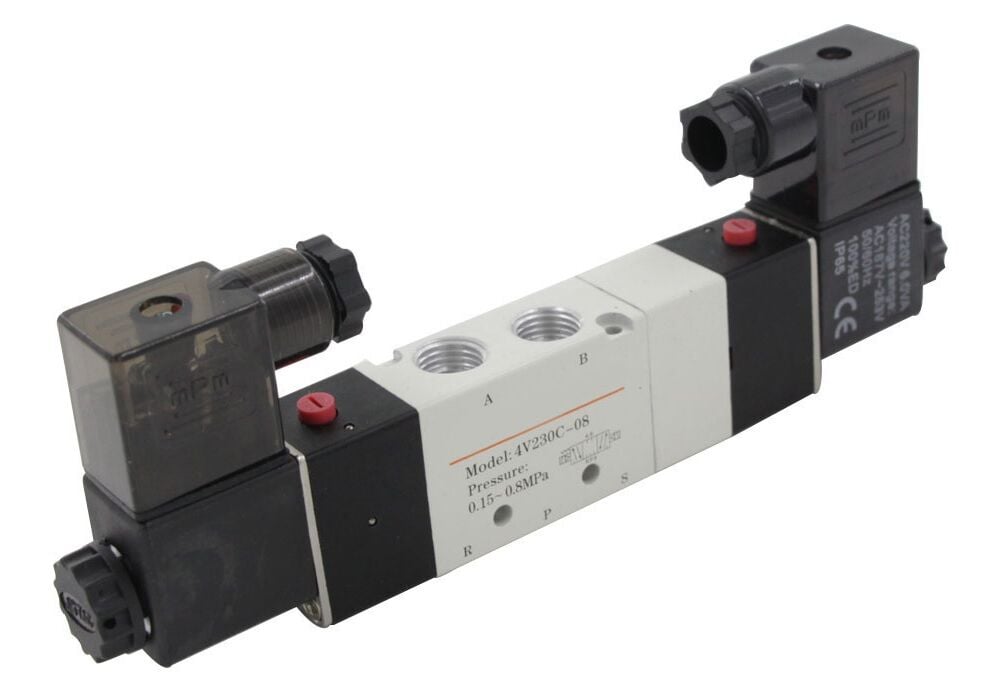

MAXTOR 4V230C-08 Çift Bobinli Kapalı Merkez Pnömatik Valf 1/4'' 5/3 24VDC

MAXTOR 4V230C-08 Double Coil Closed Center Pneumatic Valve: Precise Positioning in Automation Systems

Closed-center pneumatic valves play a critical role in industrial automation systems when pneumatic cylinders need to be stopped or precisely positioned in intermediate positions , as well as during their reciprocating motion. The MAXTOR 4V230C-08 Double-Coil Closed-Center Pneumatic Valve is a powerful and reliable directional control valve designed to meet this need. Its 5/3-way design provides precise control of double-acting pneumatic cylinders.

What is MAXTOR 4V230C-08 and How Does It Work?

MAXTOR 4V230C-08 is a directional control valve installed in the air supply line of the pneumatic system and controlled by electrical signal.

• 5/3-Way Valve: This valve has five ports (one intake, two cylinder outlets, and two exhausts) and three positions. These three positions provide the valve with the ability to remain closed in the neutral (center) position.

• Closed Center (Closed Neutral) Function: This is its most important feature. When both coils are de-energized, the valve remains in the center position, closing all ports. This locks air in and out of the cylinder, thus locking the piston in place.

• Dual-Coil Control: The valve has a coil at each end. When one coil is energized, the valve moves to one position; when the other coil is energized, the valve moves to the opposite position. When both coils are de-energized, the valve returns to center (closed). This provides greater control flexibility.

• 24VDC Voltage: Indicates that the coils operate with 24V DC voltage. This voltage is commonly used in industrial automation systems (PLCs, control cards).

• 1/4'' Connection: 1/4 inch threaded connection diameter, compatible with most standard pneumatic systems.

Highlights and Advantages of MAXTOR 4V230C-08:

• Precise Positioning: The closed-center feature allows pneumatic cylinders to be stopped and held in intermediate positions. This is critical for more complex automation applications.

• Reliable Control: Dual coil structure offers high reliability and flexibility in controlling the valve.

• Durable Construction: The body is made of durable aluminum injection molding material. Stainless steel internal parts and NBR sealing elements ensure long-lasting and reliable performance.

• Wide Operating Range: It operates safely in a wide temperature range from -5°C to +60°C and at a working pressure of 0-10 bar .

• Versatility: Suitable for fluids such as compressed air, vacuum and neutral gases.

Areas of Use:

• Industrial Automation: Applications requiring precise motion control, especially intermediate positioning, pressing or gripping operations.

• Machinery Manufacturing: Air lines of packaging machines, textile machines, robotic systems and other pneumatic machines.

• Conveyor Systems: Stopping products at a specific position and precise control of their movement.

• Robotic Systems: Position control of robot arms.
