PAKKENS adjustable thermometer Ø100mm, 200°C, 10cm immersion, CL 2.0
Category
Brand
Stock Code
1104911126000150070490411
Warranty Period
24 Month
Price
3.927,50 TL + VAT
%10
4.241,70 TL
4.712,99 TL
Installments starting from 440,39 TL!

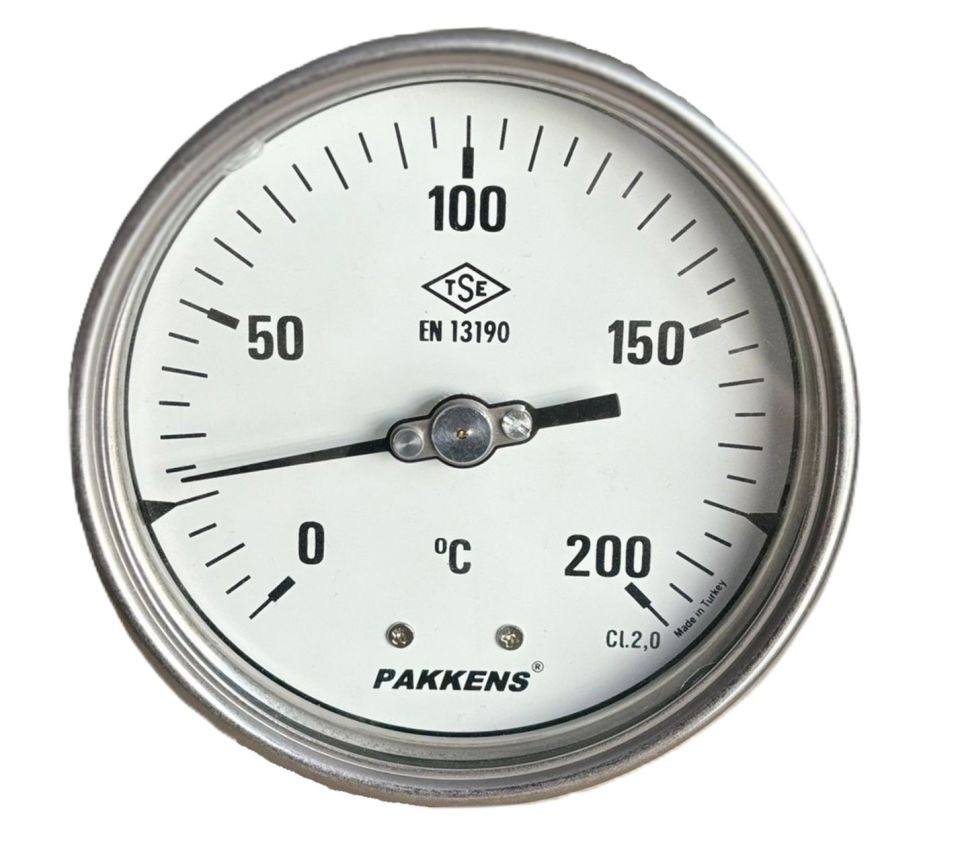

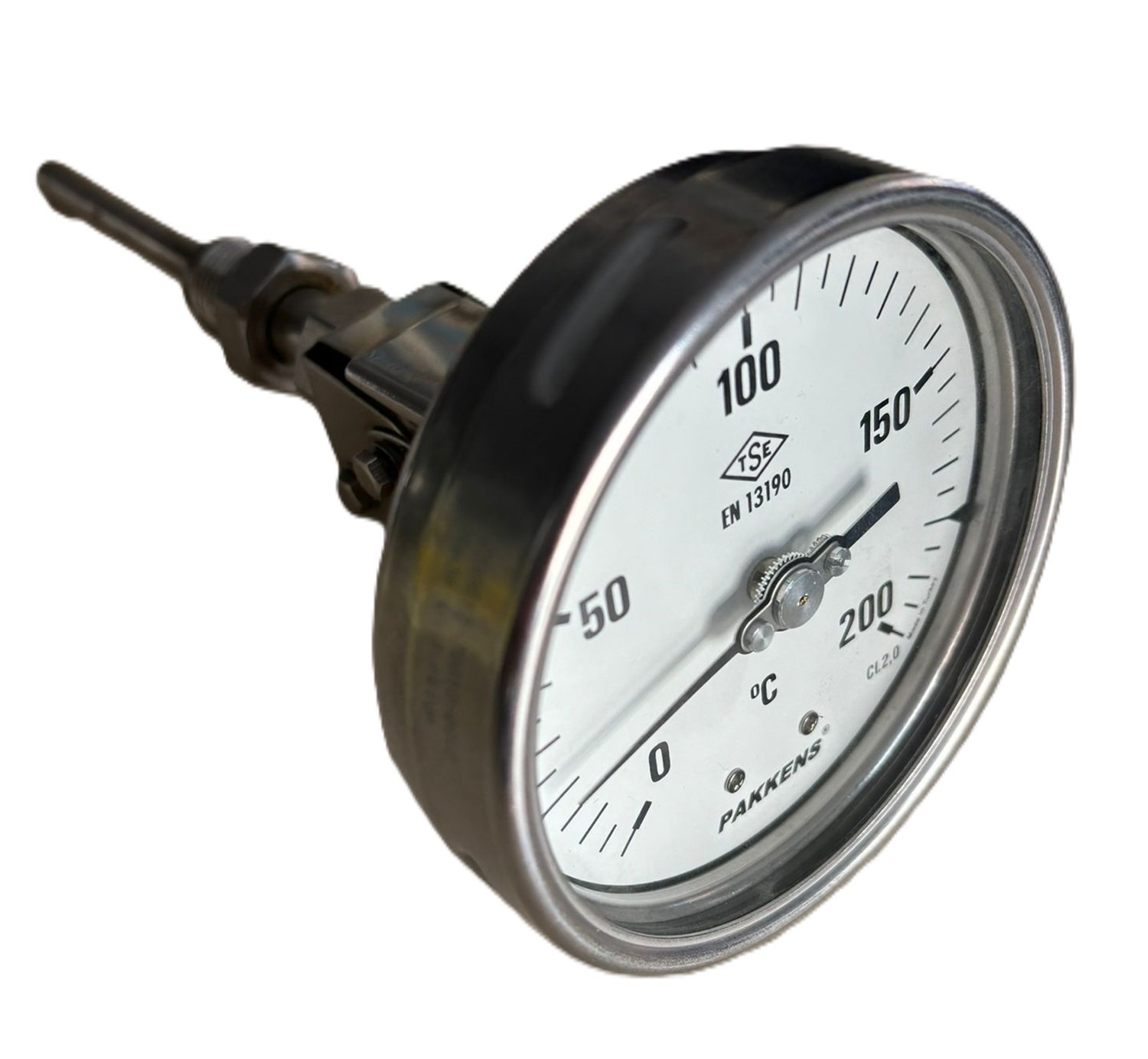

PAKKENS Adjustable Thermometer Ø100mm 200°C 10cm CL 2,0
Precise Temperature Measurement and Control with ORFA Industrial Assurance
In process control systems and industrial cooling installations, the adjustable thermometer performs a critical task by showing temperature changes in real time and ensuring system safety. This professional adjustable thermometer, developed with engineering mastery by the Pakkens brand, is fully compliant with the EN 13190 standard and delivers reliable performance in aggressive and corrosive environments. Designed with a Ø100 mm housing and 10 cm immersion length, this adjustable thermometer offers an ideal solution for boiler rooms, heat exchangers, and cooling systems. Thanks to the helical bimetallic coil mechanism, this adjustable thermometer enables error-free reading in axial and back angles, guaranteeing operators clear data. With an AISI 316L stainless steel housing, it can be used in harsh chemical and saline water environments, and the adjustable thermometer stands at the highest class in terms of corrosion resistance. With accuracy class CL 2.0, this adjustable thermometer serves as a reliable reference point in industrial automation and process control. Available from ORFA Industrial, this adjustable thermometer allows replacement without stopping the system thanks to the threaded thermowell system, speeding up maintenance and service. Measuring up to 200°C, this adjustable thermometer increases machine safety in steam, condensate, and hot oil applications. Due to its modular design, each adjustable thermometer unit can be easily adapted to different pipe diameters and installation positions without additional installation costs. Operating safely at 25 bar, this adjustable thermometer is confidently used in medium and high pressure systems. With the compression ring option, this adjustable thermometer allows contractors to adjust the housing length according to project requirements. With IP65 protection class, this adjustable thermometer ensures full safety of electrical contacts and provides long service life in industrial and agricultural applications. Achieve a professional standard in temperature management with the Pakkens adjustable thermometer and maximize your system efficiency.
Adjustable Thermometer Technical Specifications Details
Key Advantages of the Adjustable Thermometer
- Precise Measurement: High accuracy adjustable thermometer service with class CL 2.0.
- Corrosion Resistance: Long-lasting use in chemical environments thanks to AISI 316L material selection.
- No System Shutdown Required: Easily replace the adjustable thermometer device thanks to the threaded thermowell system.
- Modular Design: Adaptable adjustable thermometer with housing length adjustable via compression ring.
Application Areas of the Adjustable Thermometer
- Temperature monitoring with adjustable thermometer in boiler rooms and steam generators.
- Process control in industrial heat exchangers and cooling systems.
- Temperature indication in corrosive environments in chemical and petrochemical plants.
- Use of adjustable thermometer in agricultural applications – water heating systems and greenhouse management.
Discover engineering standards in industrial temperature control with PAKKENS adjustable thermometer solutions and ensure error-free operation in your processes.
| Connection Type | : | Back Connection |
| Nominal Diameter (of the gauge) | : | Ø100 mm |
| Accuracy Class | : | Cl.2,0 |
| Immersion Length L / cm | : | 10 cm |
