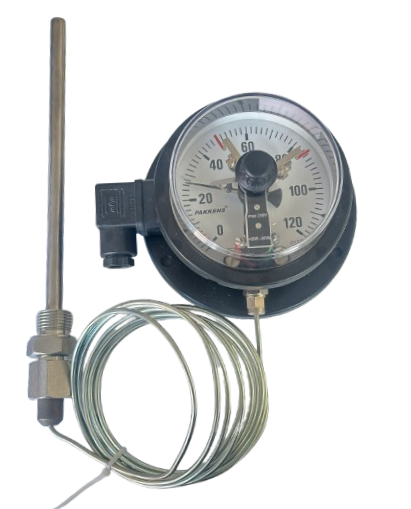

Pakkens Gas Filled Contact Thermometer NC/NO Ø100mm 120°C 3Mt CL 1,0
%10 Discounted Product
0 - Comment / Read Comments
86,90 USD
78,21 USD
Category
Brand
Stock Code
1006011505NC
Warranty Period
24 Month
Price
72,41 USD + VAT
* Installments starting from 78,21 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
Pakkens Gas Filled Contact Thermometer NC / NO
ORFA Pakkens Gas Filled Contact Thermometer NC / NO, offered by Endüstri Mamüller Sanayi ve Ticaret A.Ş. , is an ideal solution for temperature measurements that do not require high precision. Designed in accordance with the EN 13190 standard, this thermometer has been developed for use in processes that require temperature control of liquids and gases that do not harm copper alloys. The gas filling thermometer works on the principle of volume change according to the temperature change of the thermometric fluid in the capillary tube. In this way, it can be easily mounted at a point different from the heat source, which increases the flexibility of the device. Thanks to its modular design, it can be customized with different body diameters, body lengths and scale ranges.
Gas Filled Contact Thermometer Features:
Flexibility: Thanks to its capillary tube, the indicator can be placed away from the heat source, max. Can be mounted at a distance of up to 2 meters.
Durability: It can be used safely in temperature measurements of liquids and gases that do not damage copper alloys.
Modular Design: Provides customized solutions with different nominal sizes, body lengths and body diameters.
Wide Application Area: Provides wide usage in various industries such as heating, air conditioning, machine production, boiler production.
Gas Filled Contact Thermometer Technical Information:
Body Diameter: Ø100 mm
Temperature Range: °C
Immersion Length: Maximum 3 meters
Sensitivity: ±1%(KL 1.0)
Operating Range: Full scale
Industry Sector: Machine manufacturers, heating and air conditioning machines, boiler manufacturers
Gas Filled Contact Thermometer Structural Features:
Mounting Type: Bottom Mounted
Body Material: Made from durable steel.
Cover Material: AISI-304 quality stainless steel for long-lasting use.
Dial: Aluminium
Connection: Provides easy installation and integration with threaded connection type.
Standards and Certifications:
Compliance: EN Fully complies with 13190 standards.
Sensitivity Class: KL 1.
Protection Class: Dust and water resistant with IP41 protection class.
Gas Filled Contact Thermometer Working Principle
. Behavior of Thermometric Fluid:
The basic working principle of Gas Filled Contact Thermometers begins with the reaction of a thermometric gas in the capillary tube to temperature changes. This gas is generally known as thermometric fluid and shows expansion or contraction with temperature changes. The gas in the thermometer expands its volume when the temperature increases and contracts when the temperature decreases. These volume changes lead to pressure changes inside the capillary tube.
. Measurement of Pressure Changes:
Pressure differences that occur as a result of the volumetric change of the gas are detected by the thermometer's indicator and converted into a temperature value by a mechanical movement. This process is accomplished through a bent pipe (bourdon tube) or diaphragm. The pressure of the gas causes the movement of these elements, and this movement is shown as a readable value on the temperature scale with the help of an indicator.
. Contact Mechanism:
Gas Filled Contact Thermometers not only measure temperature, but also contain a contact mechanism that activates when a certain temperature threshold is reached. This mechanism sends a signal, closing (NC - Normally Closed) or opening (NO - Normally Open) the circuit at a predetermined temperature. This signal is usually transmitted to a control system or alarm circuit, enabling automatic temperature control.
. Flexibility of Capillary Tube:
Another important feature of Gas Filled Contact Thermometers is that temperature measurement can be made at a different point from the heat source, thanks to the capillary tube. The flexible structure of the capillary tube allows the display part of the thermometer to be mounted away from the source of measured temperature. This makes the mounting location of the thermometer more flexible and ensures reliable measurement even in harsh working conditions.
. Fast Response to Temperature Changes:
One of the most important advantages of Gas Filled Contact Thermometers is their ability to react quickly to temperature changes. The low thermal mass of the gas allows it to react quickly and sensitively to temperature changes. This provides an ideal solution for applications that do not require high precision in temperature measurement but require a fast response.
Gas Filled Contact Thermometer Application Areas:
Pakkens Gas Filled Contact Thermometer NC / NO is suitable for a variety of industrial applications. It can be used in a wide range of applications, from the heating and air conditioning industry to food and beverage production. It provides reliable temperature control in cooling systems and performs effectively in the process industry. This thermometer is widely preferred in machine building and process industries, especially those with non-precision measurement requirements.
ORFA Offered with the expertise of Endüstri Mamüller Sanayi ve Ticaret A.Ş. , this Gas Filled Contact Thermometer is the perfect choice for professionals looking for a long-lasting and reliable temperature measurement solution.
| Screen Diameter Measurement | : | Ø100 mm |
| Calibration Class | : | Cl.1,0 |
| Immersion Length | : | 300 cm |
