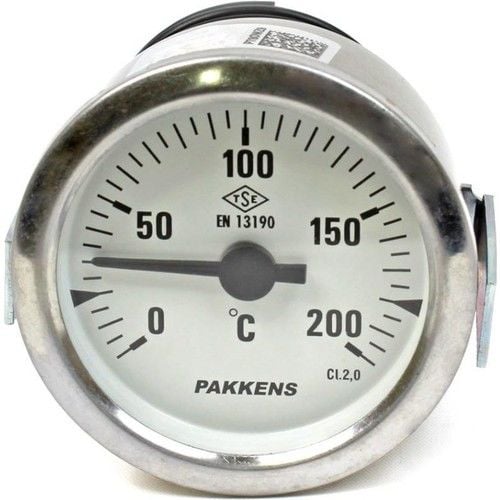

Pakkens Microtac Gazlı Kontaklı Termometre 200°C

Pakkens Microtac Gas Contact Thermometer: Industrial Temperature Measurement and Control

Pakkens is one of Turkey's leading manufacturers of pressure and temperature measurement instruments. The Pakkens Microtac Rear-Connected Panel-Mounted Gas Contact Thermometer is an advanced instrument designed to reliably measure and control the temperature of liquids and gases in industrial installations, furnaces, boilers, and other processes.

What is a Pakkens Microtac Gas Contact Thermometer?

In addition to its basic temperature measurement function, this thermometer is a control device with contacts (switches) that open and close an electrical circuit when set temperature limits are reached. Gas thermometers operate on the principle that the gas inside them expands and contracts with temperature.

Main Features:

• Gas Operating Principle: The temperature sensor (probe) operates on the principle of expansion/contraction of the gas inside. This enables precise measurements to be made over a wide temperature range.

• Contact (Switch) Design: The thermometer's dial contains one or two electrical contacts that operate according to preset temperature values. These contacts can automatically activate or deactivate a pump, fan, alarm system, or other control element when temperature limits are exceeded.

• Wide Temperature Range (200°C): The temperature range from 0°C to 200°C is suitable for many industrial processes and heating applications.

• Panel Mount with Rear Connection: The connection point is located on the rear of the thermometer. This allows for easy and practical mounting on fittings such as pressure gauge taps or thermowells. Panel mounting allows for easy integration into control panels or machine enclosures.

• Dial Size (Ø60mm): Compact dial diameter of 60mm is ideal for use in tight spaces.

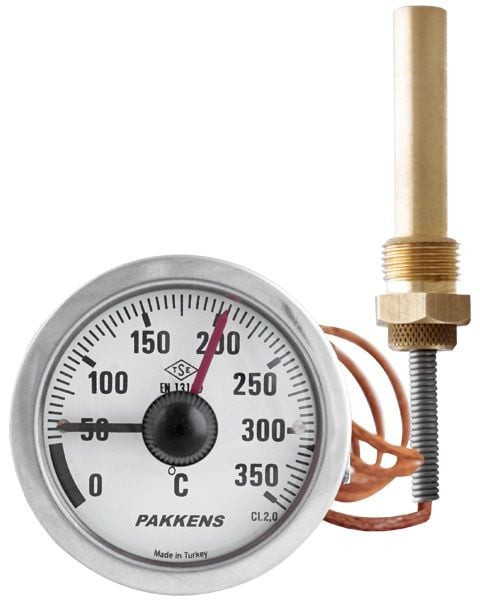

• Capillary Length (2 M): The 2-meter spiral (capillary) sensor allows the measuring point to be located away from the thermometer itself. This allows monitoring of hot processes from a safe distance.

• Thread Size (3/8''): Standard 3/8 inch threaded connection provides easy integration into the installation.

Advantages of Pakkens Microtac:

• Dual Function: Combines both visual temperature measurement and automatic control (on/off) functions in one device.

• System Safety: Prevents equipment damage and hazardous situations by providing automatic safety shutdown in case of over-temperature.

• Process Control: Provides automatic management of the process within certain temperature ranges.

• Durable Construction: Stainless steel body and internal parts increase resistance to corrosion, moisture and harsh industrial conditions.

Areas of Use:

• Industrial Ovens and Dryers: Monitoring and control of process temperature.

• Boilers and Heat Exchangers: Monitoring and control of boiler water or steam temperature.

• Heating and Cooling Systems: Temperature control circuits.

• Storage Tanks: Temperature monitoring of chemical or liquid tanks.

• Automation Panels: As temperature sensors and switches integrated into control panels.
