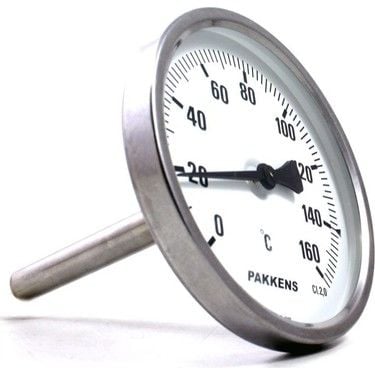

Pakkens Back Mounted Bi-Metal Thermometer Ø100mm 160°C 20 cm 1/2'' CL 2,0
%10 Discounted Product
0 - Comment / Read Comments
17,40 EUR
15,66 EUR
Category
Brand
Stock Code
1004020406
Warranty Period
24 Month
Price
14,50 EUR + VAT
* Installments starting from 15,66 EUR!
Add to Cart
Rear Outlet Bi-Metal Thermometer
5
ORFA Rear Outlet Bi-Metal Thermometer offered by Endüstri Mamüller Sanayi ve Ticaret A.Ş . offers high precision and reliability in temperature measurement. This thermometer is specially designed for industrial applications and provides long-lasting use with its stainless steel body and durable structure. This product, which can be used in a wide range of applications from HVAC systems to heating and cooling applications, stands out with its measurement accuracy and reliability.
Product Features Body Diameter:
Ø100 mm
Temperature Range: up to 160°C
Immersion Length:
Immersion Length:
20 cm
Sensitivity: ±2% (CL 2.0) 6
Connectivity:
1/2" Operating Range:
Full scale
Industry Sector: Machine manufacturers, heating and air conditioning machines, boiler manufacturers
Structural Features
Mounting Type: Rear mounted
Body: Stainless AISI-430
Cover: AISI-430
Dial:
Aluminium Temperature Element:
Bi-Metal
Link:
Gear
Standards and Certifications
5
Compliance:
EN Complies with 13190 standards.
Sensitivity Class:
CL It is in the 2.0 sensitivity class.
Protection Class:
It is resistant to dust and water with IP51 protection class.
Maximum Pressure:
Provides pressure resistance up to 16 Bar.
Technical Information
Rear Output Bi-Metal Thermometer is widely used in areas such as HVAC systems, heating and cooling applications. The thermometer's modular design allows it to have different combinations of nominal sizes, body lengths and scale ranges. These features enable flexible use of the thermometer in various industrial applications. It can be mounted to processes with screwable thermowells and thus changes can be made without the need to stop the systems. 6
Rear Output Bi-Metal Thermometer Working Principle 5 6
5
| Tooth Measurement | : | 1/2'' |
| Connection Type | : | Rear Mounted |
| Screen Diameter Measurement | : | Ø100 mm |
| Calibration Class | : | Cl.2,0 |
| Immersion Length | : | 20 cm |
