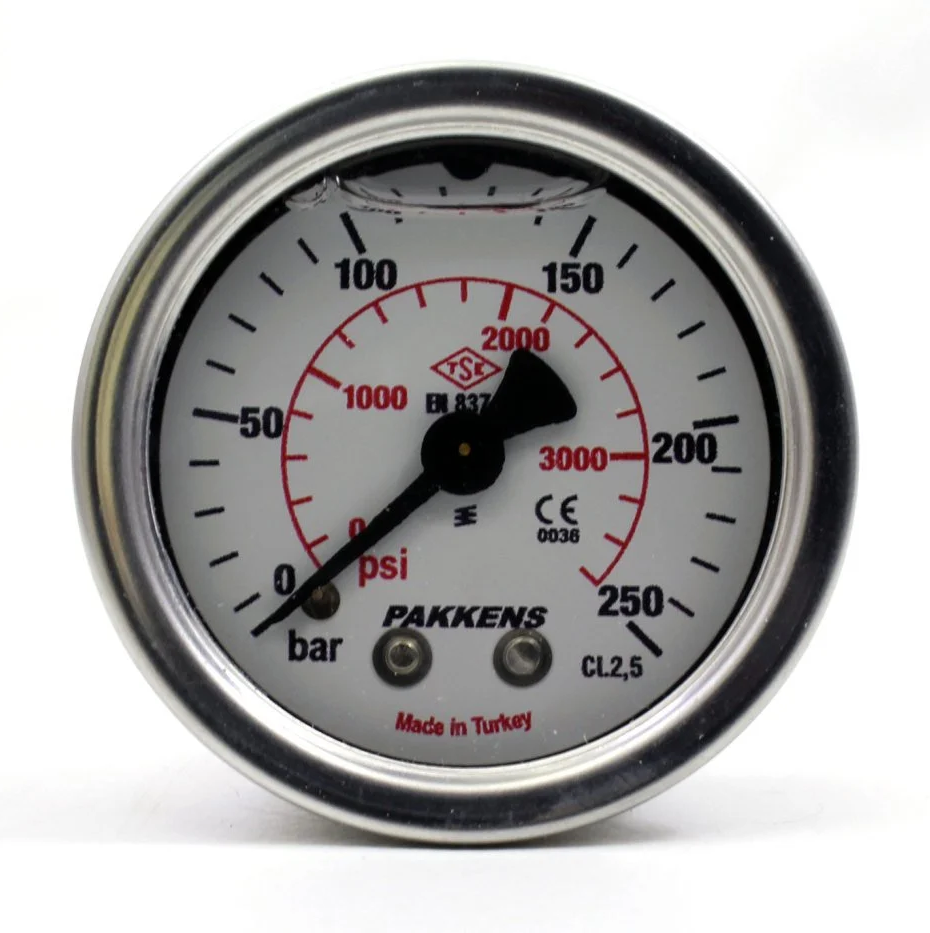

Pakkens Back Mounted Glycerin Manometer Ø63 mm 0-250 Bar 1/4''
%10 Discounted Product
0 - Comment / Read Comments
12,72 EUR
11,45 EUR
Category
Brand
Stock Code
0631001214
Warranty Period
24 Month
Price
10,60 EUR + VAT
* Installments starting from 11,45 EUR!
Add to Cart
Pakkens Glycerin Manometer with Back Connection Ø63 mm 0-250 Bar 1/4''Reliable Pressure Measurement in High Pressure Systems
Pakkens Ø63 mm glycerin manometer , with its 0-250 bar measurement range and rear connection design, reliable pressure measurement in industrial systems. It offers a reliable and precise solution for pressure measurement. The body and cover part are made of AISI 304 stainless steel, and the mechanism is made of p@inç. Thanks to its glycerin filling, it provides accurate and stable reading by dampening needle oscillation in environments with high vibration and impact load. With this feature, it is especially preferred in pumps, compressors and hydraulic systems. ORFA This manometer, which is offered for sale with the assurance of Endüstri Mamüller Sanayi ve Ticaret A.Ş. , ensures long-lasting and safe use with its compliance with EN 837-1 standard and IP65 protection class. Principle
The manometer works according to the principle that the copper alloy bourdon tube changes shape under the influence of pressure. The deformation occurring in the tube is transferred to the needle via the pirinç mechanism and the pressure value is read on the dial in bar/psi. Glycerin filling stabilizes the needle movement, reducing the effect of sudden pressure fluctuations.
Technical Specifications
Mounting Type:
Mounting Type:
From Rear linked Screen Diameter:
Ø63 mm Measurement Range:
… 250 bar Unit of Measurement:
bar / psi Connection:
G 1/4'' B (thread) Body and Cover
: Stainless AISI Mechanism:
Pyrinç Pressure Body:
Copper alloy Dial:
Aluminum Hand:
Aluminium Protection Class:
IP Sensitivity Class:
KL 2. Operating Pressure:
Up to 75% of the measuring scale Over Pressure Limit:
PN x 1.25 (to 40 bar up to) Operating Temperature (Ambient):
-20 … +60 °C Fluid Temperature:
Max. +60 °C Storage Temperature:
-40 … +70 °C Vibration Resistance:
–150 Hz arası Şok Dayanımı:
g Kullanım Alanları
Pompa çıkış hatları
Pompa çıkış hatları
Hidrolik ve pnömatik sistemler
Kompresörler
Endüstriyel proses hatları
Enerji ve güç üretim systems
Water and compressed air installations
Refinery and petrochemical applications
Pakkens Ø63 mm Glycerin Manometer with Back Connection
, 0-250 It provides reliable measurement in high pressure systems with its bar measurement range, stainless body and IP65 protection class. ORFA Industrial with assurance. güvencesiyle.
, 0-250 It provides reliable measurement in high pressure systems with its bar measurement range, stainless body and IP65 protection class. ORFA Industrial with assurance. güvencesiyle.
| Tooth Measurement | : | 1/4'' |
| Connection Type | : | Rear Mounted |
| Screen Diameter Measurement | : | Ø63 mm |
| Manometer Type | : | Glycerin Type |
| Cover Material | : | Stainless |
| Calibration Class | : | Cl.2,5 |
