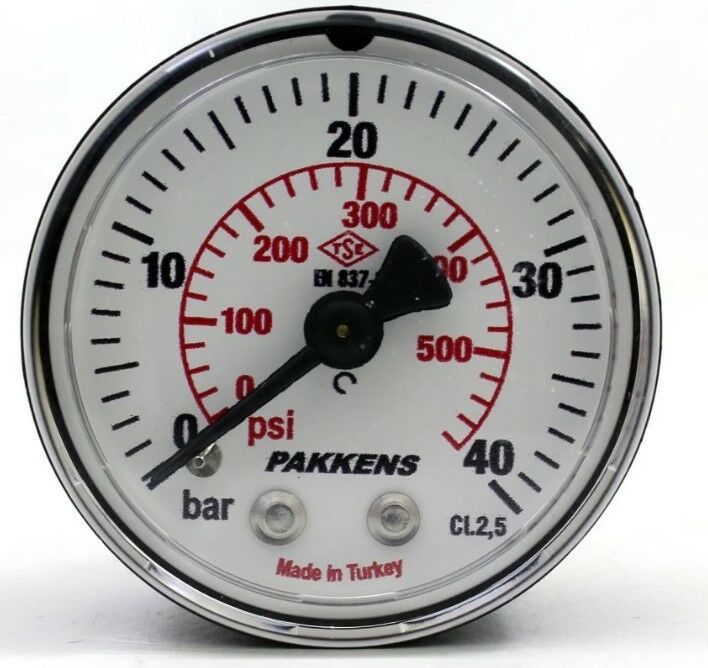

Pakkens Rear Connection Manometer 0-40 Bar 50 mm 1/4''
%10 Discounted Product
0 - Comment / Read Comments
6,84 EUR
6,16 EUR
Category
Brand
Stock Code
050100021004
Warranty Period
24 Month
Price
5,70 EUR + VAT
* Installments starting from 6,16 EUR!
Add to Cart
Pakkens Rear Mounted Manometer: Compact and Reliable Solution for Industrial Pressure Measurement
The Pakkens Back-Connected Dry-Type Manometer, offered by ORFA Industrial Products Industry and Trade Inc. , is a pressure measuring device offering high reliability and durability, widely used in a variety of industrial applications. These products provide accurate and reliable pressure measurement in applications where high measurement accuracy is not critical. They are particularly ideal for pressure measurement of liquids and gases that do not corrode copper alloys. Offering versatile use with its diverse body designs and wide pressure measurement range, this device stands out for its long-lasting performance and easy installation.
Product Features
-
Precision: Provides reliable performance in applications that do not require high measurement precision. - Compatibility: Used for pressure measurements of various liquids and gases that are not corrosive to copper alloys.
- Mounting: Rear Mount mounting allows the device to be easily integrated into various systems.
- Durability: It offers long-lasting use thanks to its steel body and brass mechanism.
- Visibility: Polycarbonate sheet and aluminum dial provide clear pressure reading.
Technical Information
-
Model: Dry Type - Mounting Type: Rear Mount
- Body Diameter: 50 mm
- Pressure Range: 40 Bar
- Sensitivity Class: KL 2.5
- Precision Measuring Range: 75% of Full Scale Value
- Process Connection: 1/4"
- Fluid Temperature: Maximum +60 °C
- IP Protection Class: IP41
- Body Material: Steel
- Mechanism: Brass
- View Panel: Polycarbonate
- Pressure Body: Copper Alloy
- Dial and Hand: Aluminum
- Joining Source : Solder
- Standard Compliance: EN 837-1
Working Principle
Pressure Sensing:
The Rear-Connected Dry-Type Manometer senses the pressure of the process fluid through a port located at its bottom. This fluid transmits the pressure within the pipe or line connected to the manometer to the pressure element inside the manometer.
Deformation of Bourdon Tube:
A manometer usually contains a Bourdon tube. This tube is a circular, oval-shaped metal tube. Process pressure acts on its inner surface. As pressure increases, the tube's circular shape begins to flatten, and this deformation is transmitted to the manometer's internal mechanism. This deformation of the tube translates into linear motion.
Movement of the Mechanism:
The deformation of the Bourdon tube activates a gear mechanism attached to the tube. This gear mechanism converts the linear motion of the tube into rotary motion. This rotary motion moves the needle on the dial of the pressure gauge.
Pressure Display:
The needle moves on the dial of the manometer and indicates the current pressure. The dial is marked in pressure units, and the value indicated by the needle informs the user of the process pressure. In dry-type manometers, the display on the dial remains accurate and stable, unaffected by vibrations.
Precision and Reliability:
Back-Connected Dry-Type Manometers are ideal for applications that don't require high measurement accuracy, but where reliability and durability are paramount. Being dry-type eliminates the risks of leakage or contamination that can occur with liquid-filled manometers, providing a long-term, low-maintenance solution.
Areas of Use
- Air Conditioners: Monitoring and control of ideal pressure levels.
- Compressed Air Lines: Safe and stable air pressure measurement.
- Healthcare Devices: Pressure control in medical equipment.
- Hydraulic Systems: Precise measurement of fluid pressure.
- Heating Systems: Pressure monitoring in heating systems.
- Water Pumps and Circulation Systems : Monitoring and control of water pressure.
Industrial Sector
The Pakkens Back-Connected Dry-Type Manometer is preferred in a wide range of applications, from water treatment plants and machinery manufacturers to heating and air conditioning systems, pumps, and compressors. It can be safely used in many sectors, including hydraulic systems and pressure lines.
Pakkens Back Mounted Dry Type Manometer is an ideal solution to meet your business's pressure measurement needs with its ease of use and reliable performance.
| Tooth Measurement | : | 1/4'' |
| Connection Type | : | Rear Mounted |
| Screen Diameter Measurement | : | Ø50 mm |
| Manometer Type | : | Dry Type |
| Cover Material | : | Metal |
| Calibration Class | : | Cl.2,5 |
