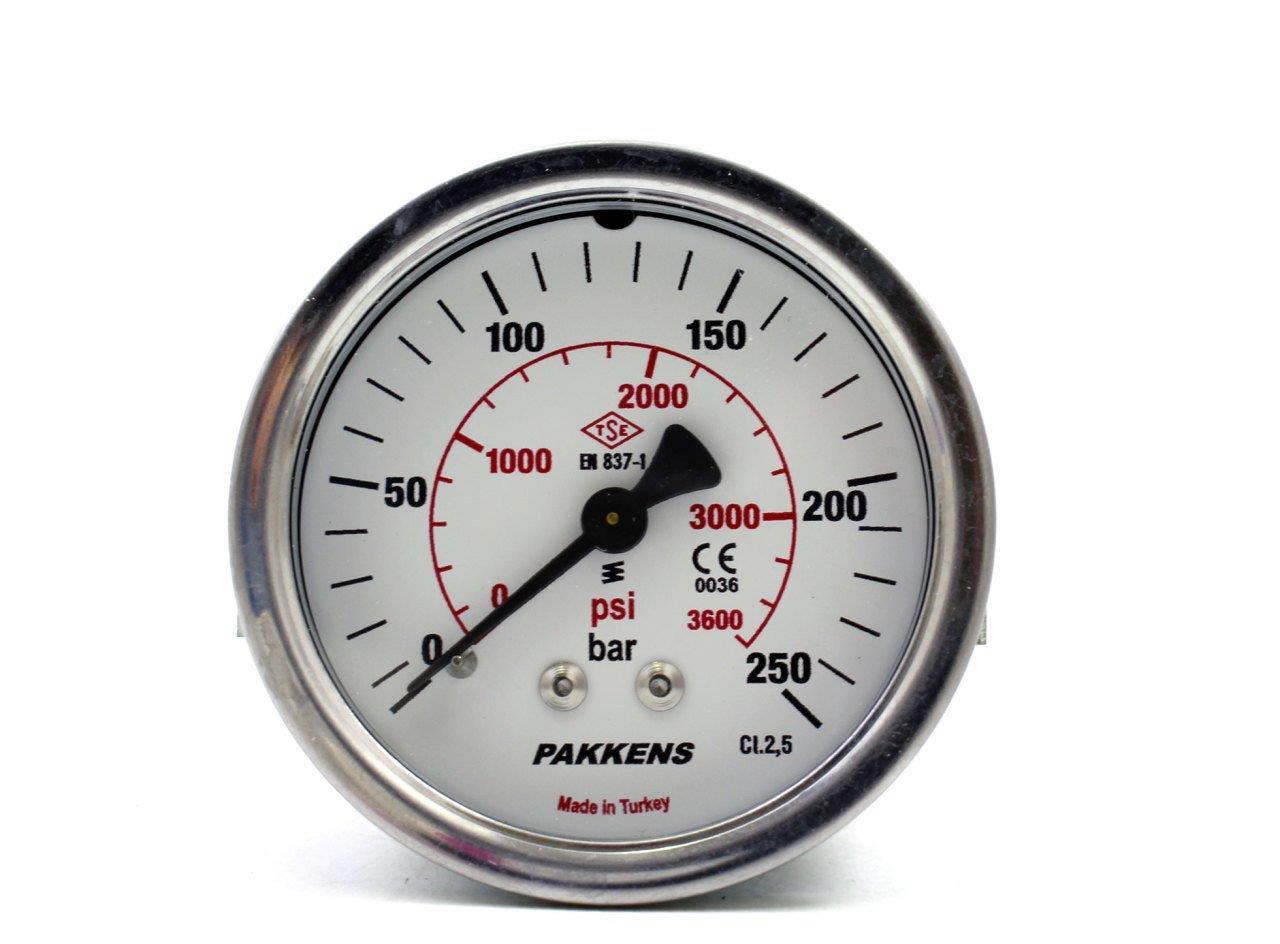

Pakkens Rear Connection Panel Type Manometer Ø63 mm 250 Bar 1/4''
%10 Discounted Product
0 - Comment / Read Comments
9,12 EUR
8,21 EUR
Category
Brand
Stock Code
0631000314
Price
7,60 EUR + VAT
* Installments starting from 8,21 EUR!
Add to Cart
Panel Type Dry Manometer with Rear Connection
ORFA Industrial Products Industry and Trade Inc. offers the Rear-Connected Panel-Type Dry Manometer, designed to provide reliable and cost-effective pressure measurement in industrial applications. This general-purpose pressure gauge offers ideal performance in applications that don't require high precision, making it the preferred choice for professionals seeking a simple and reliable solution. Compatible with process fluids that are non-corrosive to copper alloys, this pressure gauge stands out for its versatility and durability.
Product Features
- It offers reliable performance in industrial applications that do not require high precision.
- It is compatible with gases and liquids that do not corrode copper alloys and is long-lasting and durable.
- Its compact and durable steel body adapts to various installation environments.
- The IP41 protection class provides protection against dust and splash water, so it can be used safely in a variety of harsh environmental conditions.
Technical Information
Model: Dry Board Type
Mounting Type: Rear Mount
Body Diameter: 63 mm
Pressure Range: 250 Bar
Sensitivity Class: CL 2.5
Precision Measuring Range: 75% of full scale value
Process Connection: 1/4"
Fluid Temperature: Maximum +60 °C
IP Protection Class: IP41
Body: Steel
Mechanism: Brass
View Panel: Polycarbonate
Pressure Body: Copper Alloy
Dial: Aluminum
Needle: Aluminum
Joining Weld: Solder
Compliance: EN 837-1
Basic Structure of the Manometer
Indicator Mechanism (Dial and Needle): The part designed to show the measured pressure values to the users.
Bourdon Tube: It is the main measuring element that converts pressure changes into mechanical movement.
Rear Connection Point: The point where the pressurized fluid enters the manometer. Designed for panel mounting.
Gear Mechanism: The system that transfers the movement from the Bourdon tube to the needle.
Dry Panel Type Manometer with Rear Connection - Working Principle
Pressurization: Process fluid enters the Bourdon tube through the rear port of the manometer. This fluid, under pressure, fills the tube, increasing the pressure.
Tube Deformation: The pressure generated by the fluid causes the Bourdon tube to expand outward. The tube straightens under the influence of the pressure, and this mechanical action varies proportionally with the pressure.
Transmission of Mechanical Movement to the Needle: The expansion of the tube is transmitted to a gear mechanism inside the manometer. This mechanism transmits the tube's movement to the needle, ensuring the correct pressure value is displayed on the dial.
Pressure Measurement: The needle moves in proportion to the expansion of the Bourdon tube, and this movement corresponds to the pressure value displayed on the scale on the dial. Because dry-type manometers lack a liquid fill, needle movement is directly proportional to pressure changes and is less affected by environmental factors (e.g., temperature changes).
Pressure Reduction: When system pressure decreases, the Bourdon tube returns to its original state, i.e., curls up. This allows the needle to return to its initial position.
Areas of Use
Air Conditioners: Provides pressure measurement and control.
Compressed Air Lines: Provides reliable pressure monitoring.
Healthcare Devices: Used in medical applications requiring stable pressure measurements.
Hydraulic Systems: Suitable for monitoring system pressure.
Heating Installations: Provides reliable and accurate pressure measurements.
Water Pumps and Water Circulation Systems: Provides the ideal solution for pressure control and optimization.
Industry Sectors
This manometer is widely used in various industrial sectors, including water treatment plants, machine manufacturers, heating and air conditioning systems, pumps/compressors, hydraulic systems, and pressure lines. Its durable construction and reliable performance make it a trusted partner for users in industrial pressure measurement.
The Rear-Connected Panel-Type Dry Manometer provides reliable pressure measurement in a variety of industrial applications, ensuring the safe and efficient operation of your systems. Offered with ORFA Industrial Products Industry and Trade Inc. quality, this manometer, with its long-lasting and durable construction, perfectly meets your industrial needs.
| Tooth Measurement | : | 1/4'' |
| Connection Type | : | Rear Connection Panel Type |
| Screen Diameter Measurement | : | Ø63 mm |
| Manometer Type | : | Dry Type |
| Cover Material | : | Metal |
| Calibration Class | : | Cl.2,5 |
