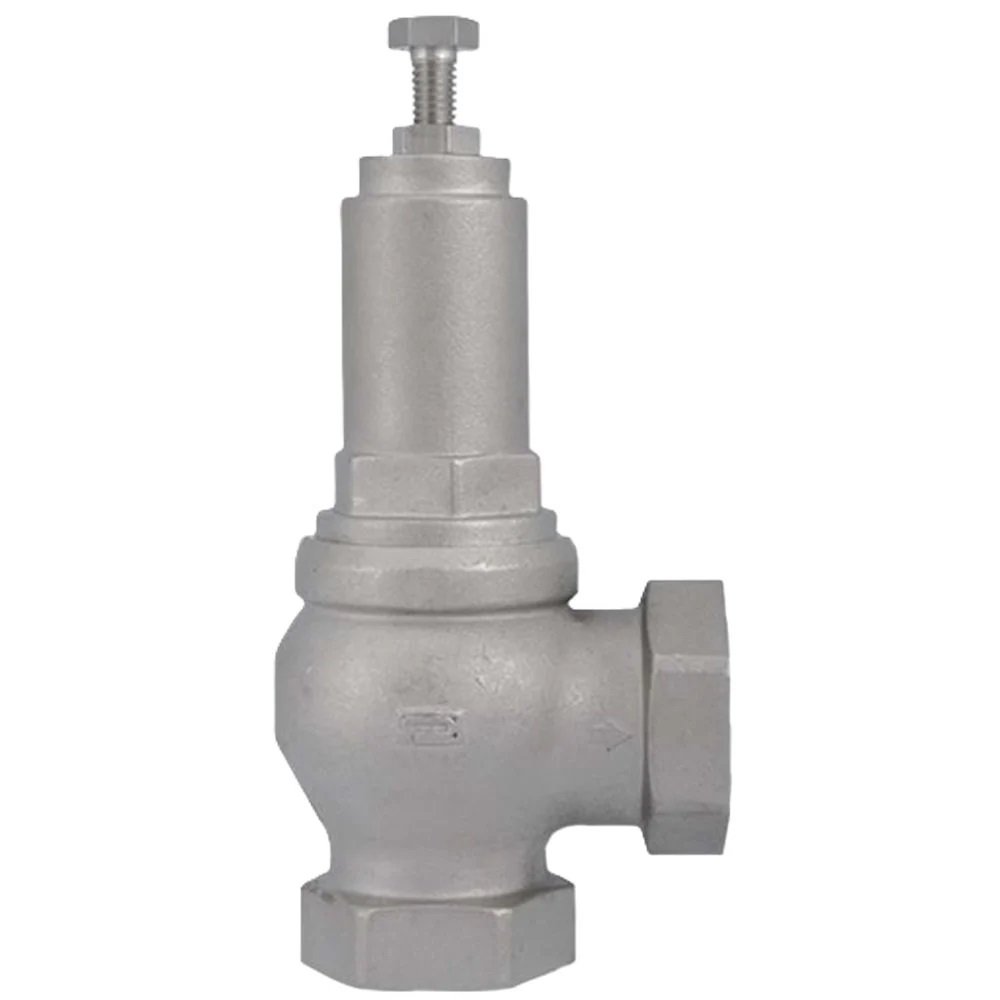

PAKKENS Steam Safety Valve 1''

Reliable Protection in Steam Systems with ORFA Industrial Assurance

A critical component for ensuring safety in industrial steam installations, the steam safety valve activates automatically in case of overpressure in the system. This 1-inch steam safety valve, manufactured by the PAKKENS brand, provides maximum protection against pressure fluctuations in steam lines. This steam safety valve with CE 0408 certification offers high durability thanks to its brass body and stainless steel spring mechanism. With an adjustable range from 2 to 12 bar, this steam safety valve can be set to the desired pressure by the user. Made of nickel-plated brass, this steam safety valve exhibits excellent corrosion resistance. With a maximum operating temperature of +200 °C, the steam safety valve is safely used in steam boilers and process lines. This steam safety valve, available from ORFA Industrial stocks, is an ideal choice to enhance your system's safety. Each steam safety valve has a maximum pressure rating of PN 25. Using a steam safety valve in your industrial facility protects equipment from overpressure and ensures operational efficiency.

Steam Safety Valve Technical Specification Details

Model Information: PAKKENS Steam Safety Valve 1''

Discharge Connection: G 1/2" B

Body Material: Brass – Nickel Plated

Connection Sizes: 1"

Adjustment Screw: Steel Coating

Pressure Spring: Stainless Steel

Approval: CE 0408

Fluid Temperature: Max. +200 °C

Storage Temperature: -20 °C to +60 °C

Pressure Setting Range: 2 - 12 bar (user adjustable)

Maximum Pressure: PN 25

Steam Safety Valve Key Advantages

High Safety: Steam safety valve opens automatically at overpressure to protect the system.
Adjustable Pressure: Steam safety valve can be adjusted by the user between 2-12 bar.
Durable Material: Nickel-plated brass body and stainless steel spring for long-lasting steam safety valve.
Easy Installation: Steam safety valve with standard connection sizes ensures quick setup.

Steam Safety Valve Application Areas

Steam boilers and heating systems
Industrial steam distribution lines
Chemical and petrochemical plants
Steam lines in food production facilities

Achieve a safe and efficient solution in your steam installation with the PAKKENS Steam Safety Valve.

Body Material	:	Brass
Thread Size	:	1''
