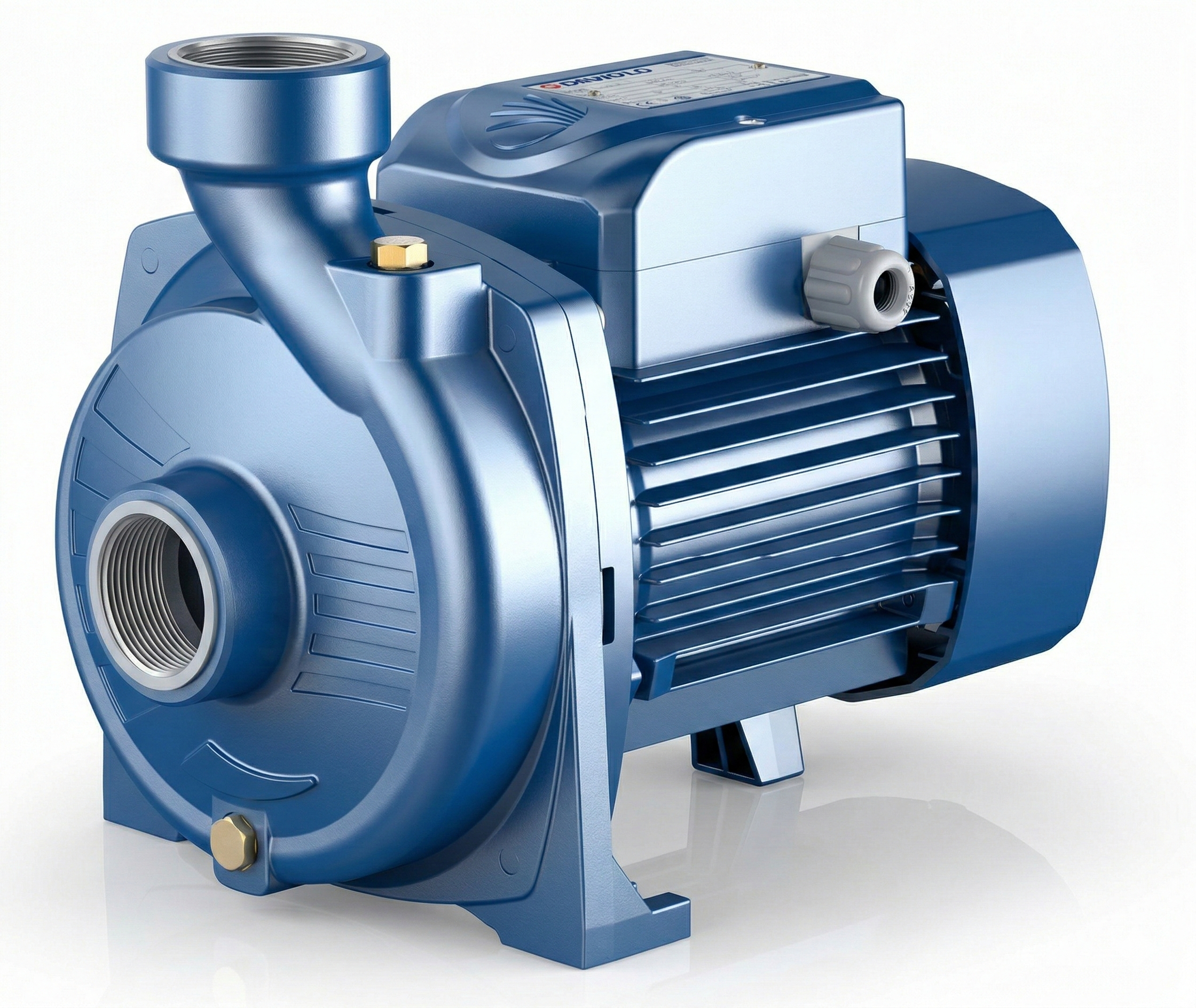

Pedrollo NGAm 1A Centrifugal Pump 1hp
%29 Discounted Product
0 - Comment / Read Comments
659,70 USD
468,39 USD
Category
Brand
Stock Code
1205246057010650680000001
Warranty Period
24 Month
Price
549,75 USD + VAT
* Installments starting from 468,39 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
Pedrollo NGAm 1A Centrifugal Pump 1hp – Powerful and Efficient Liquid Transfer Solutions
The Pedrollo NGAm 1A Centrifugal Pump, sold by ORFA Industrial Products Industry and Trade Inc. , is designed to deliver excellent performance in liquid transfer operations. Its open impeller design ensures smooth operation without clogging, even in contaminated liquids, making it ideal for transferring liquids from channels, rivers, tanks, and basins. Its wide particle permeability allows it to easily handle larger particles. Its high flow rate and reliable motor technology ensure uninterrupted operation even under challenging conditions. The high efficiency offered by centrifugal pump technology saves energy, reducing operating costs.
Centrifugal Pump Technical Specifications:
Model: NGAm 1A
Power (HP/kW): 1 HP / 0.75 kW
Voltage: 220V (Single Phase)
Maximum Flow: 21 m³/h
Maximum Height: 20 ms
Inlet and Outlet Size: 1 1/2" (40 mm)
Particle Permeability: 10 mm
Pump Body : Cast Iron
Mirror: AISI 304 Stainless Steel
Fan: AISI 316 Stainless Steel
Motor Shaft: Stainless Steel
Mechanical Seal: Carbon Ceramic
Motor Type: 2 Pole
Manometric Suction Head: 7 meters
Liquid Temperature: -10°C to +90°C
Ambient Temperature: -10°C to +40°C
Maximum Working Pressure: 2 Bar
Protection Degree: IP X4
Centrifugal Pump Operation Step by Step:
Suction: Liquid entering the pump through the suction port is drawn into the center of the impeller. This suction process is usually accomplished with the help of atmospheric pressure. During suction, the pump must be continuously supplied with liquid.
Acceleration: The pump's rotating impeller accelerates the liquid by throwing it outward. This acceleration is caused by centrifugal force, and the liquid gains kinetic energy as it moves outward through the impeller.
Pressure Generation: When the liquid reaches the outer edge of the impeller, this kinetic energy is converted into pressure energy. A diffuser, or spiral casing, placed around the circumference of the impeller controls the flow of the liquid and increases the pressure.
Discharge: Liquid is forced to the outlet port by pressure energy and exits the pump to be delivered to the rest of the system. In this stage, the liquid exits the pump at a higher pressure than the lower pressure it had entering the pump.
Centrifugal Pump Usage Areas:
The NGAm 1A Centrifugal Pump offers high performance in a variety of industrial and agricultural applications. Its robust construction and wide liquid transfer capacity make it suitable for use in:
Hydrophore Groups: Reliable solution in pressurized water systems.
Garden and Field Irrigation Systems: Centrifugal Pump Effective water transfer in large irrigation areas, ensuring efficient water use.
Reservoir and River Applications: Centrifugal Pump Safe and powerful performance in pumping natural water resources.
Industrial Liquid Transfer Applications: Centrifugal Pump Trouble-free transportation of dirty and particle-containing liquids.
This Centrifugal Pump, offered by ORFA Industrial Products Industry and Trade Inc. , is an excellent choice to meet the water transfer needs of businesses with its reliability and long-lasting structure.
| Voltage | : | 220 Volt Ac |
