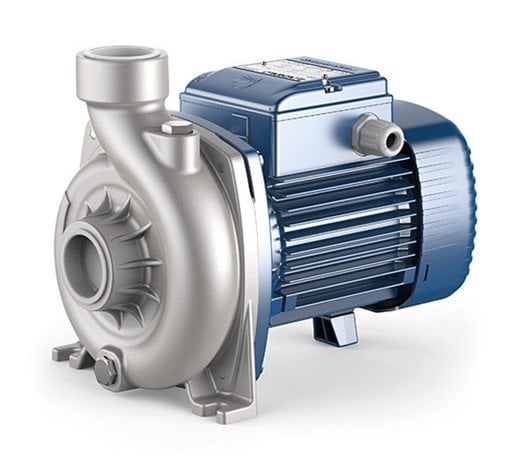

Pedrollo PRO-NGA 1A Stainless Steel Cast Centrifugal Pump
%29 Discounted Product
0 - Comment / Read Comments
1.292,40 EUR
917,60 EUR
Category
Brand
Stock Code
1205246057010650680810000
Warranty Period
24 Month
Price
1.077,00 EUR + VAT
* Installments starting from 173,37 EUR!
Add to Cart
Pedrollo PRO-NGA 1A Stainless Steel Centrifugal Pump – Powerful and Efficient Liquid Transfer Solutions
The Stainless Steel Cast Centrifugal Pump, sold by ORFA Industrial Products Industry and Trade Inc. , is designed to deliver excellent performance in liquid transfer operations. Its open impeller design ensures smooth operation without clogging, even in contaminated liquids, making it ideal for transferring liquids from channels, rivers, tanks, and basins. Its wide particle permeability allows it to easily handle larger particles. Its high flow capacity and reliable motor technology ensure uninterrupted operation even under challenging conditions. The high efficiency offered by the Stainless Steel Cast Centrifugal Pump technology saves energy and reduces operating costs.
Stainless Steel Cast Centrifugal Pump Technical Specifications
Model: PRO-NGA 1A
Power (HP/kW): 1 HP / 0.75 kW
Voltage: 380V (Three Phase)
Maximum Flow: 25 m³/h
Maximum Height: 20 ms
Inlet and Outlet Size: 1 1/2" (40 mm)
Particle Permeability: 10 mm
Pump Body : AISI 316 Stainless Steel
Mirror: AISI 316 Stainless Steel
Fan: AISI 316 Stainless Steel
Motor Shaft: AISI 316 Stainless Steel
Mechanical Seal: Viton
Motor Type: 2 Pole
Manometric Suction Head: 7 meters
Liquid Temperature: -10°C to +90°C
Ambient Temperature: -10°C to +40°C
Maximum Working Pressure: 2 Bar
Protection Degree: IP X4
Stainless Steel Cast Centrifugal Pump Operation:
Stainless Steel Centrifugal Pump Suction: Liquid entering the pump through the suction port is drawn into the center of the impeller. This suction process is generally accomplished with the aid of atmospheric pressure. Liquid must be continuously supplied to the pump during suction.
Acceleration: The pump's rotating impeller accelerates the liquid by throwing it outward. This acceleration is caused by centrifugal force, and the liquid gains kinetic energy as it moves outward through the impeller.
Pressure Generation: When the liquid reaches the outer edge of the impeller, this kinetic energy is converted into pressure energy. A diffuser, or spiral casing, placed around the circumference of the impeller controls the flow of the liquid and increases the pressure.
Discharge: Liquid is forced to the outlet port by pressure energy and exits the pump to be delivered to the rest of the system. In this stage, the liquid exits the pump at a higher pressure than the lower pressure it had entering the pump.
Stainless Steel Cast Centrifugal Pump Usage Areas
The stainless steel centrifugal pump offers high performance in a variety of industrial and agricultural applications. Its durable construction and wide liquid transfer capacity make it suitable for use in the following applications:
Hydrophore Groups: Reliable solution in pressurized water systems.
Garden and Field Irrigation Systems: Effective water transfer in large irrigation areas, ensuring efficient water use.
Reservoir and River Applications: Safe and powerful performance in pumping natural water resources.
Industrial Liquid Transfer Applications: Trouble-free transportation of dirty and particle-containing liquids.
This Stainless Cast Iron Centrifugal Pump offered by ORFA Industrial Products Industry and Trade Inc. is an excellent choice to meet the water transfer needs of businesses with its reliability and long-lasting structure.
| Voltage | : | 380 Volt |
| Strength | : | 1 HP - 0.75 KW |
